OTBVR81L Banner Sensor Accessories
Part#:OTBVR81L
Manufacturer:Banner
Alt. Part#:34040
Product Lifecycle:Active
Get a quick Quote!
OTB Series: Momentary Action Touch Button w/Black F.C.; Input: 20-30 V ac or dc; Upper Housing: Polycarbonate; Output: E/M Relay (SPDT); 2 m (6.5 ft) Integral Cable
About the manufacturer: Banner is one of the manufacturers that offers Sensor Accessories that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the OTBVR81L Banner price in the box on the right side or send a quick quote.
Product Details
- Weight302.092272 g
- Country Of OriginMX
- Power Source DC or AC
- Input Type AC
- Min Op. Temperature (°C) -20
- Feature: Chemical Resistant No
- Actuation Yes
- Operation Normally Open/Normally Closed
- Environmental Rating IP66
- Feature: Audible No
- Non-Illuminated Yes
- Product Size (mm) Other
- Max Output Response Time (ms) 100
- Button Operation Momentary
- Modbus RTU No
- Cable Length (m) 2
- Mounting Thread M30 x 1.5
- Feature: Hazardous Area No
- Max Op. Temperature (°C) 50
- Power DC or AC
- Connection Cable
- Number of Beams 1
- Primary Housing Color Red
- Pro-Editor Compatible (Discrete) No
- Primary Housing Material Polycarbonate
- Max Input Response Time (ms) 100
- Field Cover Color Black
- Wireless No
- Sensing Mode (General) Single Point Optical
- Output Type SPDT e/m Relay
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- IO Link No
- Activation Function Optical
- Supply Voltage 20-30 V dc/ac
- NEMA Type and UL Type Rating NEMA 1, 3, 4, 4X, 12, 13
- Feature: Quick Disconnect No
- Housing Style Base Mount - Saddle
- Number of Input Pins/Conductors 5
- Physical Dimensions (LxWxH or DxH mm) 59.9 x 43.2 x 48.0
- Secondary Material Thermoplastic
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
OTBVR81L Description

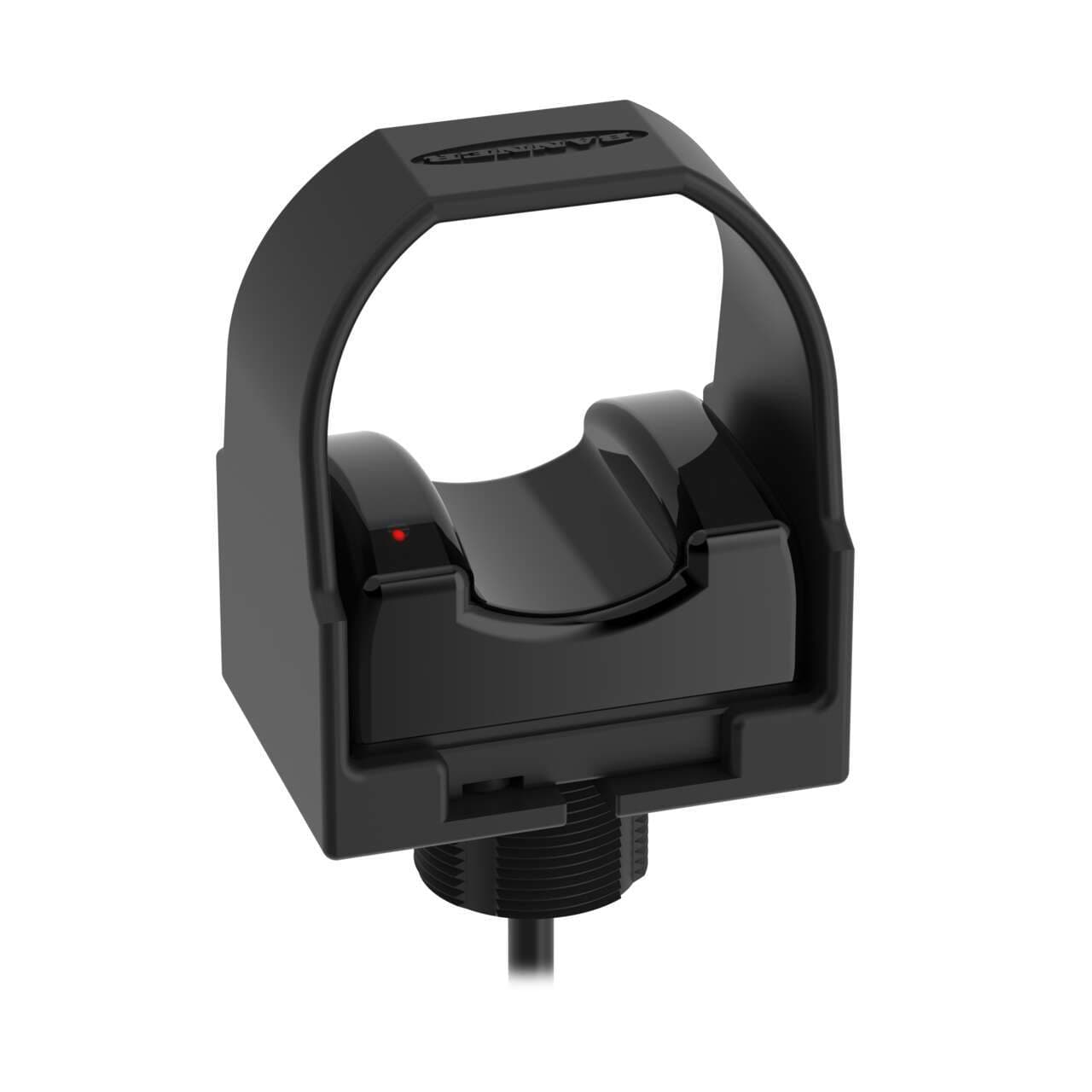

Banner Engineering OTBVR81L is a photo-electric optical touch-activated button designed for versatile mounting options, including surface or base flush with a 30mm hole. It operates within an ambient air temperature range of -20°C to +50°C and features a black field cover for its design. This unit is pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads, supporting supply voltages of 20Vac-30Vac (24Vac nominal) and 20Vdc-30Vdc (24Vdc nominal). It boasts a high degree of protection rated at IP66, NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, and NEMA 13. The OTBVR81L has a saddle/yoke-shaped body made from a polycarbonate (PC) upper housing and a thermoplastic polyester base, with a red housing color. Its operating mode is momentary NO (Normally Open) or NC (Normally Closed), and it includes 1 x digital output (SPDT / 1NO/NC relay contact type) for touch activation.
Related documents OTBVR81L Specs
