OTBVR81 Banner Sensor Accessories
Part#:OTBVR81
Manufacturer:Banner
Alt. Part#:33080
Product Lifecycle:Active
In-stock parts: 2
Jun 20, 2025
OTB Series: Momentary Action Touch Button w/Black F.C.; Input: 20-30 V ac or dc; Upper Housing: Polysulfone; Output: E/M Relay (SPDT); 2 m (6.5 ft) Integral Cable
About the manufacturer: Banner is one of the manufacturers that offers Sensor Accessories that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the OTBVR81 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight302.092272 g
- Country Of OriginMX
- Non-Illuminated Yes
- Mounting Thread M30 x 1.5
- Number of Beams 1
- Feature: Chemical Resistant No
- Activation Function Optical
- Input Type AC
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Quick Disconnect No
- Housing Style Base Mount - Saddle
- Power Source DC or AC
- Number of Input Pins/Conductors 5
- Button Operation Momentary
- Pro-Editor Compatible (Discrete) No
- Cable Length (m) 2
- Min Op. Temperature (°C) -20
- Modbus RTU No
- Sensing Mode (General) Single Point Optical
- Connection Cable
- NEMA Type and UL Type Rating NEMA 1, 3, 4, 4X, 12, 13
- Feature: Audible No
- Operation Normally Open/Normally Closed
- Max Output Response Time (ms) 100
- Secondary Material Thermoplastic
- Wireless No
- Power DC or AC
- Output Type SPDT e/m Relay
- Max Op. Temperature (°C) 50
- IO Link No
- Supply Voltage 20-30 V dc/ac
- Max Input Response Time (ms) 100
- Primary Housing Color Black
- Product Size (mm) Other
- Environmental Rating IP66
- Feature: Hazardous Area No
- Primary Housing Material Thermoplastic Polysulfone
- Actuation Yes
- Physical Dimensions (LxWxH or DxH mm) 59.9 x 43.2 x 48.0
- Field Cover Color Black
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
OTBVR81 Description

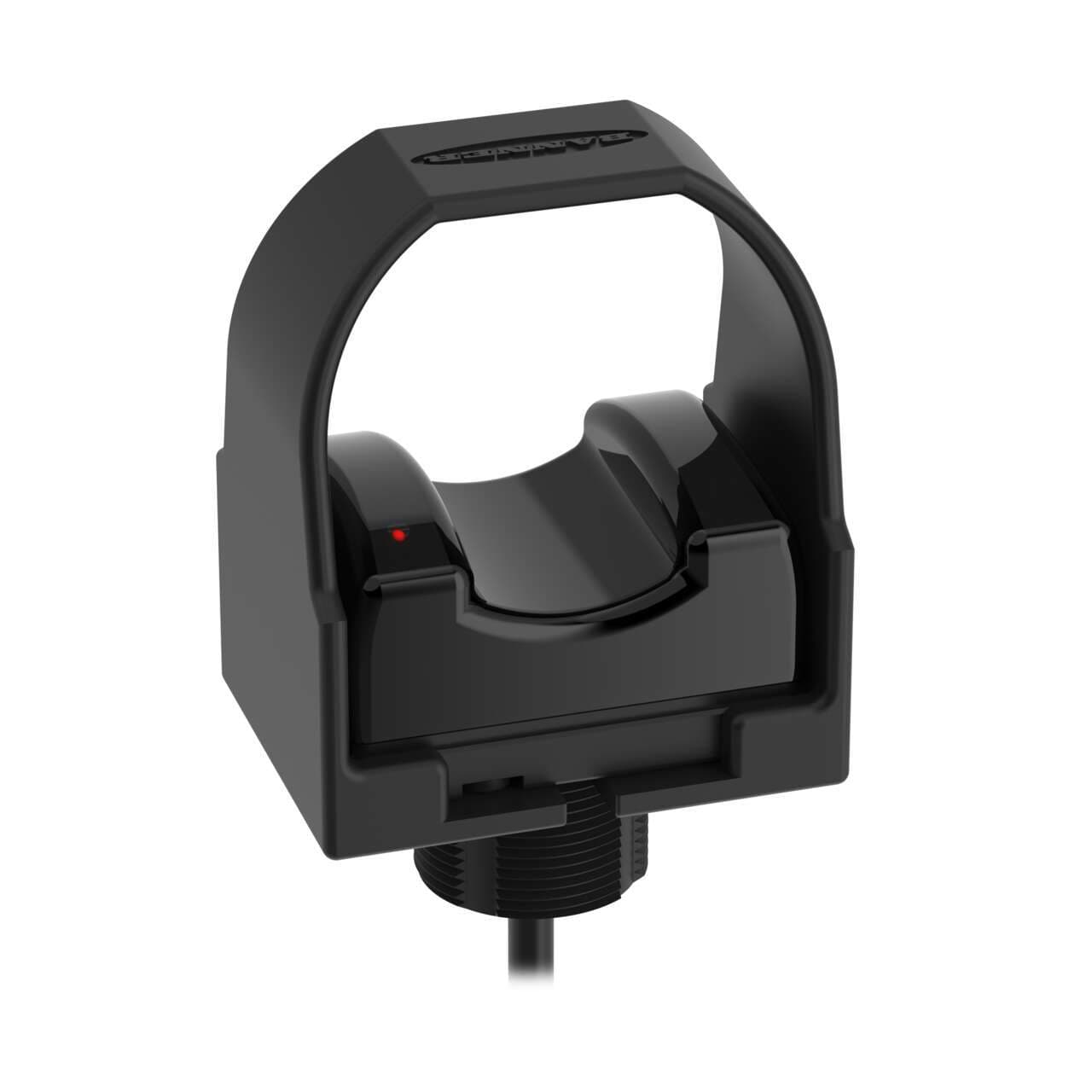

Banner Engineering OTBVR81 is a photo-electric optical touch-activated button designed for versatile mounting options, including surface or base flush with a 30mm hole. It operates within an ambient air temperature range of -20°C to +50°C and features a black field cover for its design. This part is pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads, supporting supply voltages of 20Vac-30Vac (24Vac nominal) and 20Vdc-30Vdc (24Vdc nominal). It boasts an IP66 NEMA 1 NEMA 3 NEMA 4 NEMA 4X NEMA 12 NEMA 13 degree of protection, ensuring durability in various environments. The OTBVR81 has a saddle/yoke-shaped body made from polysulfone upper housing and thermoplastic polyester base, with a black housing color. It offers a momentary NO (Normally Open) or NC (Normally Closed) operating mode and includes 1 x digital output (SPDT / 1NO/NC relay contact type) for touch activation.
