OTBVP6QD W/Y Banner Sensor Accessories
Part#:OTBVP6QD W/Y
Manufacturer:Banner
Alt. Part#:35095
Product Lifecycle:Active
Get a quick Quote!
OTB Series: Momentary Action Touch Button w/Yellow F.C.; Input: 10-30 V dc; Upper Housing: Polysulfone; Output: Complementary PNP; MINI-style Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Sensor Accessories that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the OTBVP6QD W/Y Banner price in the box on the right side or send a quick quote.
Product Details
- Weight219.084936 g
- Country Of OriginMX
- Operation Normally Open/Normally Closed
- Non-Illuminated Yes
- Number of Beams 1
- Field Cover Color Yellow
- Pro-Editor Compatible (Discrete) No
- Connection Integral QD
- Physical Dimensions (LxWxH or DxH mm) 59.9 x 43.2 x 48.0
- Feature: Audible No
- Feature: Chemical Resistant No
- Power Source DC
- Supply Voltage 10-30 V dc
- Environmental Rating IP66
- Feature: Hazardous Area No
- Output Type PNP
- Primary Housing Material Thermoplastic Polysulfone
- Min Op. Temperature (°C) -20
- IO Link No
- Product Size (mm) Other
- Max Op. Temperature (°C) 50
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Modbus RTU No
- Housing Style Base Mount - Saddle
- Number of Input Pins/Conductors 4
- Primary Housing Color Black
- Wireless No
- Actuation Yes
- Input Type PNP
- NEMA Type and UL Type Rating NEMA 1, 3, 4, 4X, 12, 13
- Mounting Thread M30 x 1.5
- Sensing Mode (General) Single Point Optical
- Max Output Response Time (ms) 100
- Button Operation Momentary
- Activation Function Optical
- Power DC
- Max Input Response Time (ms) 100
- Secondary Material Thermoplastic
- Feature: Quick Disconnect Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
OTBVP6QD W/Y Description

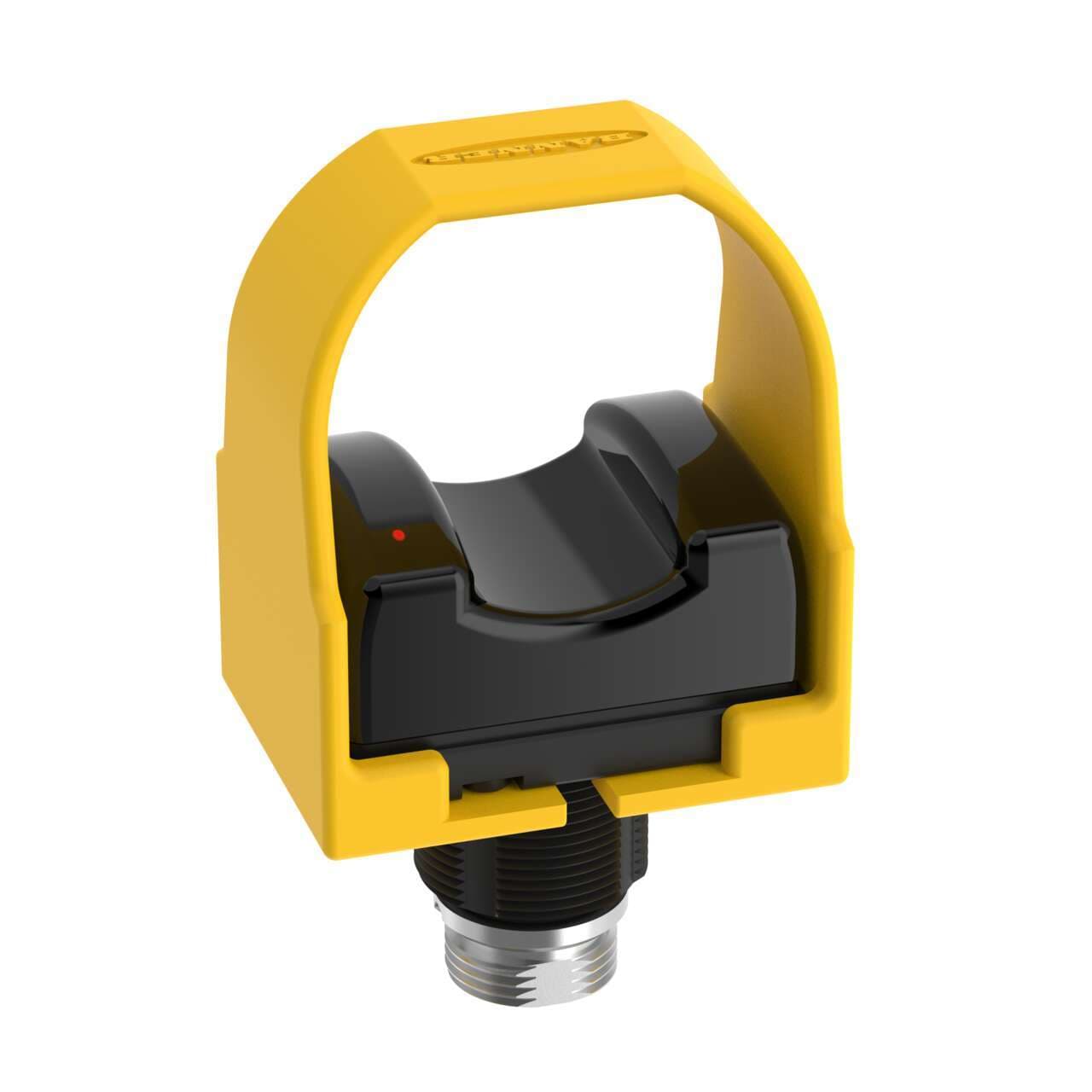

Banner Engineering OTBVP6QD W/Y is a photo-electric optical touch-activated button designed for versatile mounting options, including surface or base flush with a 30mm hole. It operates within an ambient air temperature range of -20°C to +50°C and features a yellow field cover for visibility. This touch-button is pre-equipped with a 4-pin 7/8"-16UN-2B Mini-style QD connector for easy connection and boasts a high degree of protection rated at IP66, NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, and NEMA 13. It supports a supply voltage range of 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc. The OTBVP6QD W/Y has a saddle/yoke-shaped body made from durable materials including a polysulfone upper housing, a polypropylene copolymer field cover, and a thermoplastic polyester base, all in a sleek black housing. It offers a momentary NO (Normally Open) or NC (Normally Closed) operating mode, configurable to suit various applications, and includes 1 x digital output (10-30Vdc; PNP) for touch activation.
Related documents OTBVP6QD W/Y Specs
1-year warranty
