OTBVP6QD Banner Sensor Accessories
Part#:OTBVP6QD
Manufacturer:Banner
Alt. Part#:28590
Product Lifecycle:Active
Get a quick Quote!
OTB Series: Momentary Action Touch Button w/Black F.C.; Input: 10-30 V dc; Upper Housing: Polysulfone; Output: Complementary PNP; MINI-style Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Sensor Accessories that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the OTBVP6QD Banner price in the box on the right side or send a quick quote.
Product Details
- Weight220.445712 g
- Country Of OriginMX
- Non-Illuminated Yes
- Connection Integral QD
- Max Output Response Time (ms) 100
- Feature: Chemical Resistant No
- Sensing Mode (General) Single Point Optical
- Mounting Thread M30 x 1.5
- Physical Dimensions (LxWxH or DxH mm) 59.9 x 43.2 x 48.0
- Button Operation Momentary
- Wireless No
- Actuation Yes
- Output Type PNP
- Max Op. Temperature (°C) 50
- Feature: Quick Disconnect Yes
- Activation Function Optical
- Input Type PNP
- Min Op. Temperature (°C) -20
- IO Link No
- Operation Normally Open/Normally Closed
- Number of Beams 1
- Secondary Material Thermoplastic
- Pro-Editor Compatible (Discrete) No
- Feature: Audible No
- Cable Length (m) 2
- Max Input Response Time (ms) 100
- Field Cover Color Black
- Modbus RTU No
- Power Source DC
- Power DC
- Supply Voltage 10-30 V dc
- Environmental Rating IP66
- Primary Housing Color Black
- Primary Housing Material Thermoplastic Polysulfone
- Number of Input Pins/Conductors 4
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Hazardous Area No
- Housing Style Base Mount - Saddle
- Product Size (mm) Other
- NEMA Type and UL Type Rating NEMA 1, 3, 4, 4X, 12, 13
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
OTBVP6QD Description

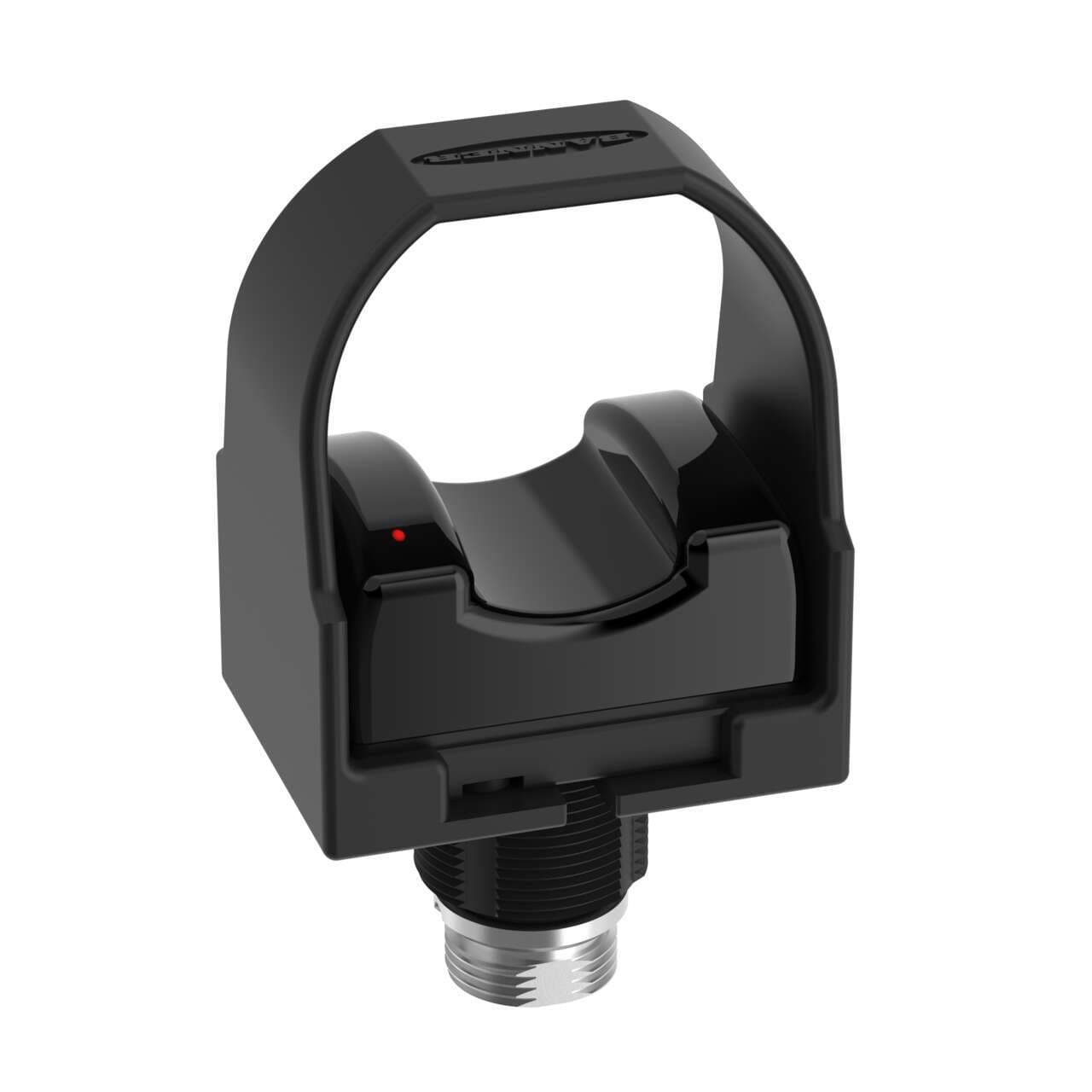

Banner Engineering OTBVP6QD is a photo-electric optical touch-activated button designed for versatile mounting options, including surface or base flush with a 30mm hole. It operates within an ambient air temperature range of -20°C to +50°C and features a black field cover for its design. This part is pre-equipped with a 4-pin 7/8"-16UN-2B Mini-style Quick Disconnect (QD) connector, ensuring a secure and reliable connection. It boasts a high degree of protection, rated at IP66, NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, and NEMA 13, suitable for a wide range of environments. The supply voltage requirement is 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc. The OTBVP6QD has a saddle/yoke-shaped body made from a polysulfone upper housing and a thermoplastic polyester base, finished in black. It supports momentary Normally Open (NO) or Normally Closed (NC) operating modes, which are configurable, and includes 1 x digital output (10-30Vdc; PNP) for touch activation.
Related documents OTBVP6QD Specs
