OTBVP6 Banner Sensor Accessories
Part#:OTBVP6
Manufacturer:Banner
Alt. Part#:28589
Product Lifecycle:Active
In-stock parts: 2
Jun 20, 2025
OTB Series: Momentary Action Touch Button w/Black F.C.; Input: 10-30 V dc; Upper Housing: Polysulfone; Output: Complementary PNP; 2 m (6.5 ft) Integral Cable
About the manufacturer: Banner is one of the manufacturers that offers Sensor Accessories that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the OTBVP6 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight296.195576 g
- Country Of OriginMX
- Mounting Thread M30 x 1.5
- Max Output Response Time (ms) 100
- Max Op. Temperature (°C) 50
- Feature: Audible No
- Non-Illuminated Yes
- Max Input Response Time (ms) 100
- Min Op. Temperature (°C) -20
- Modbus RTU No
- Housing Style Base Mount - Saddle
- Connection Cable
- Environmental Rating IP66
- Feature: Hazardous Area No
- Power DC
- Product Size (mm) Other
- Supply Voltage 10-30 V dc
- Physical Dimensions (LxWxH or DxH mm) 59.9 x 43.2 x 48.0
- Power Source DC
- Primary Housing Material Thermoplastic Polysulfone
- Operation Normally Open/Normally Closed
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Actuation Yes
- Output Type PNP
- Number of Beams 1
- Field Cover Color Black
- Feature: Chemical Resistant No
- Feature: Quick Disconnect No
- IO Link No
- Activation Function Optical
- Input Type PNP
- Primary Housing Color Black
- Wireless No
- Secondary Material Thermoplastic
- Sensing Mode (General) Single Point Optical
- Number of Input Pins/Conductors 4
- NEMA Type and UL Type Rating NEMA 1, 3, 4, 4X, 12, 13
- Button Operation Momentary
- Pro-Editor Compatible (Discrete) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
OTBVP6 Description

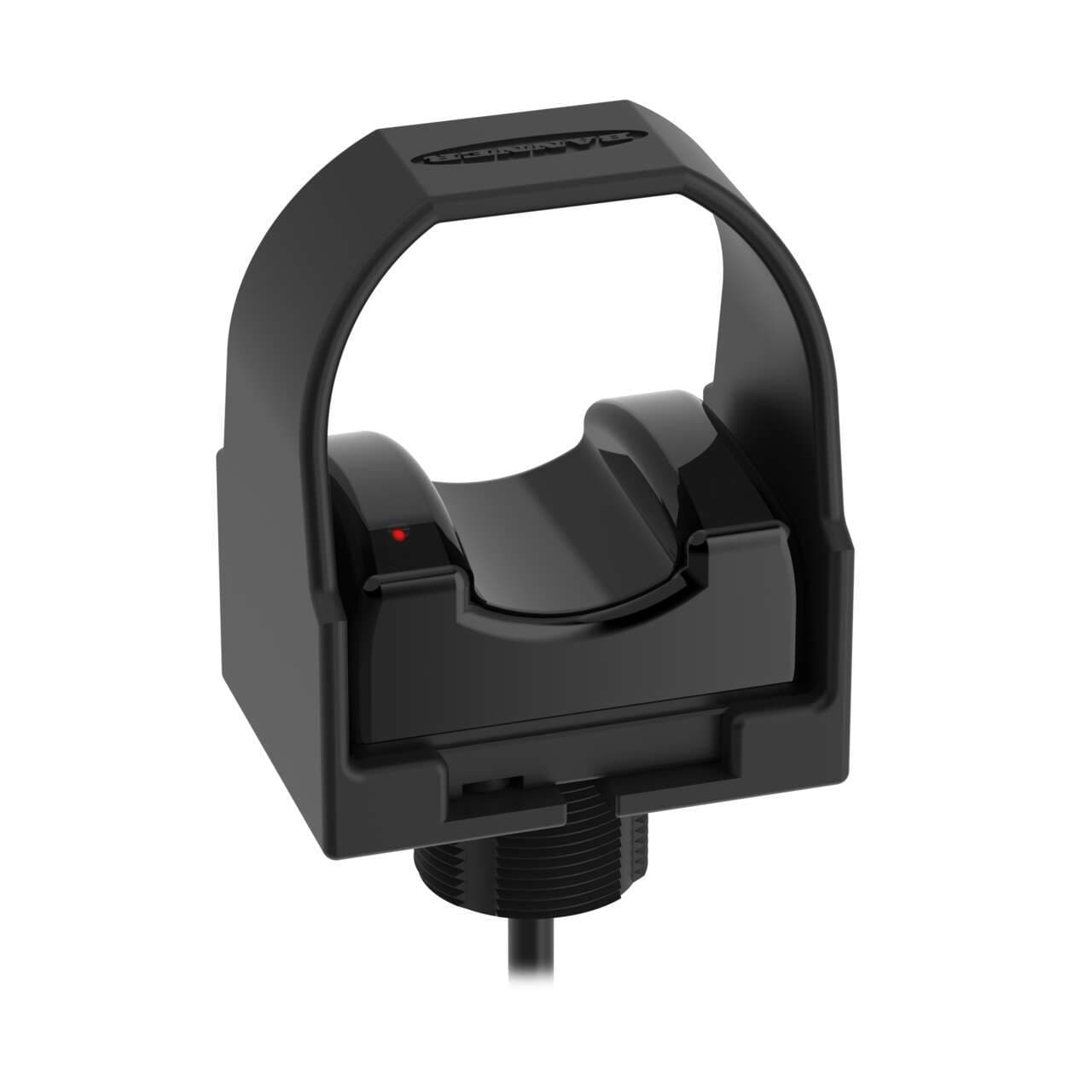

Banner Engineering OTBVP6 is a photo-electric optical touch-activated button designed for versatile mounting options, including surface or base flush with a 30mm hole. It operates within an ambient air temperature range of -20°C to +50°C and features a black field cover for its design. This part is pre-wired with a 2m / 6.5ft 4-wire cable that terminates with bare end flying leads, ensuring easy integration into various systems. It boasts a high degree of protection rated at IP66, NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, and NEMA 13, suitable for demanding environments. The OTBVP6 requires a supply voltage of 10Vdc-30Vdc, with a nominal range of 12Vdc-24Vdc, and is constructed from a polysulfone upper housing and a thermoplastic polyester base, ensuring durability. Its saddle/yoke-shaped body is finished in black, complementing a wide range of equipment aesthetics. The operating mode is momentary, offering normally open (NO) or normally closed (NC) configurations, alongside a single digital output (10-30Vdc; PNP) for touch activation, providing flexibility in application use.
Related documents OTBVP6 Specs
