MQDC2S-815RA Banner Cordsets
Part#:MQDC2S-815RA
Manufacturer:Banner
Alt. Part#:54617
Product Lifecycle:Active
In-stock parts: 13
Jun 19, 2025

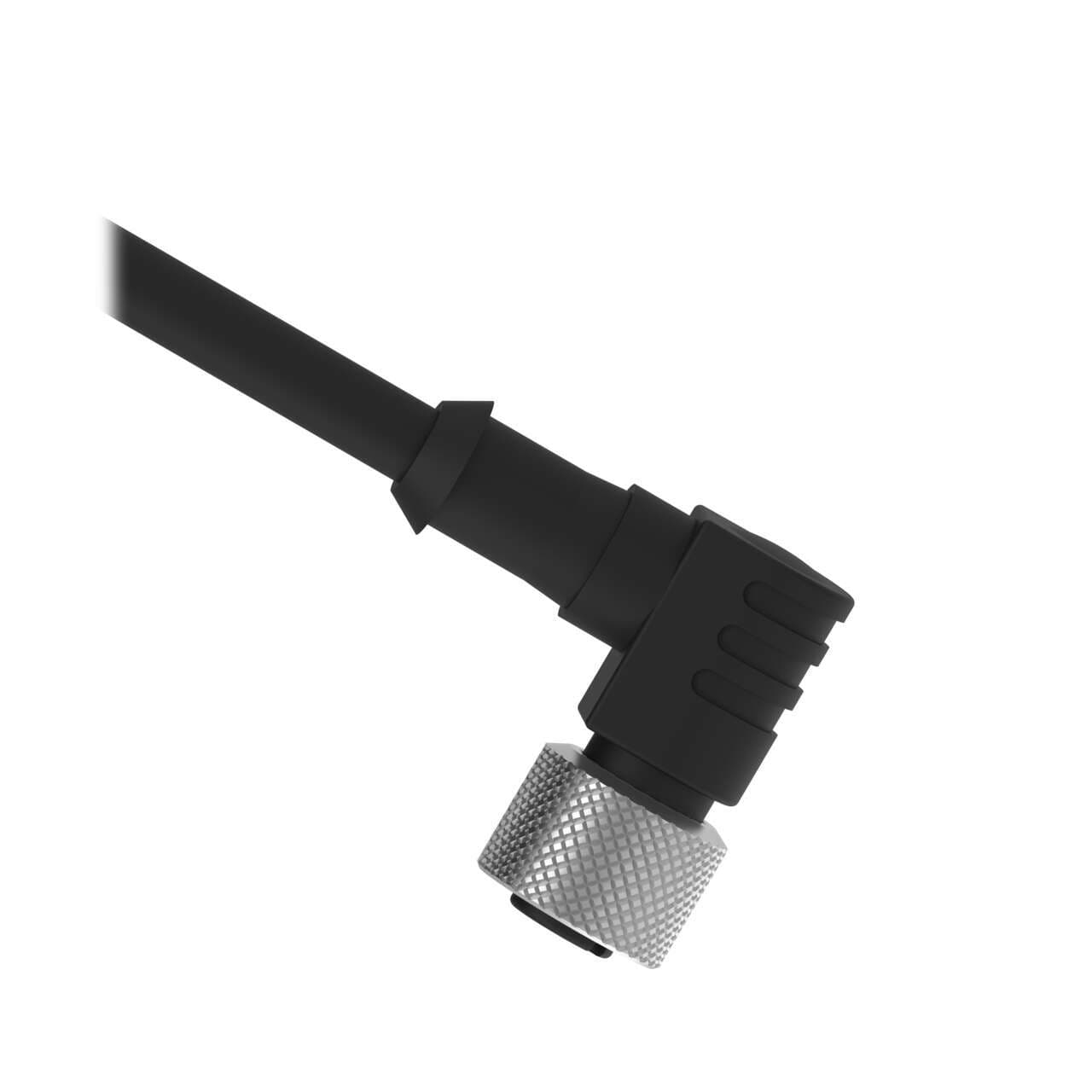

Cordset: Single Ended M12; 8-pin Right-Angle Female; 5 m (16.4 ft) 8x24 Shielded Black PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the MQDC2S-815RA Banner price in the box on the right side or send a quick quote.
Product Details
- Weight390.08912 g
- Country Of OriginUS
- Number of Contacts 8
- Coupling Material/Color Nickel Plated Brass
- Primary Orientation Right Angle
- Shield/No Shield Shield
- Voltage Rating (V) 75 V ac/dc
- Primary AWG 24
- Outside Cable Diameter (mm) 5.6
- IP Rating IP67
- Trunk Length (m) No Trunk
- Primary Connector Type EURO
- Feature: Hazardous Area No
- Connector Body Material/Color PUR Black
- Maximum Temp. (°C) 105
- Cordset Length (m) 4.57
- Primary Coupling Method M12 Single Key
- Oil/Grease Resistant No
- Cable Jacket Material PVC
- Shield Type Open
- Primary Gender Female
- Cable Jacket Color Black
- Minimum Temp. (°C) -40
- Number of Connectors 1
- Current Rating (A) 2.0
- Primary Number of Conductors 8
- Secondary Connector Type Flying Leads
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
MQDC2S-815RA Description
Banner Engineering MQDC2S-815RA is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with an 8-pin Euro-style M12 female angled connector and bare end flying leads. The cable has a diameter of 5.6mm and is protected by black sheathing made from PVC, ensuring durability and flexibility. It is equipped with a chrome-plated brass coupling nut for secure connections. This model offers a degree of protection rated at IP67, making it suitable for use in environments where dust and moisture resistance are required. The MQDC2S-815RA operates effectively within an ambient air temperature range of -40 to +105°C and is rated for a voltage of 75Vdc. The cable length is 15ft (5m), providing ample reach for various installation needs.
