MQDC-415 Banner Cordsets
Part#:MQDC-415
Manufacturer:Banner
Alt. Part#:26850
Product Lifecycle:Active
Get a quick Quote!

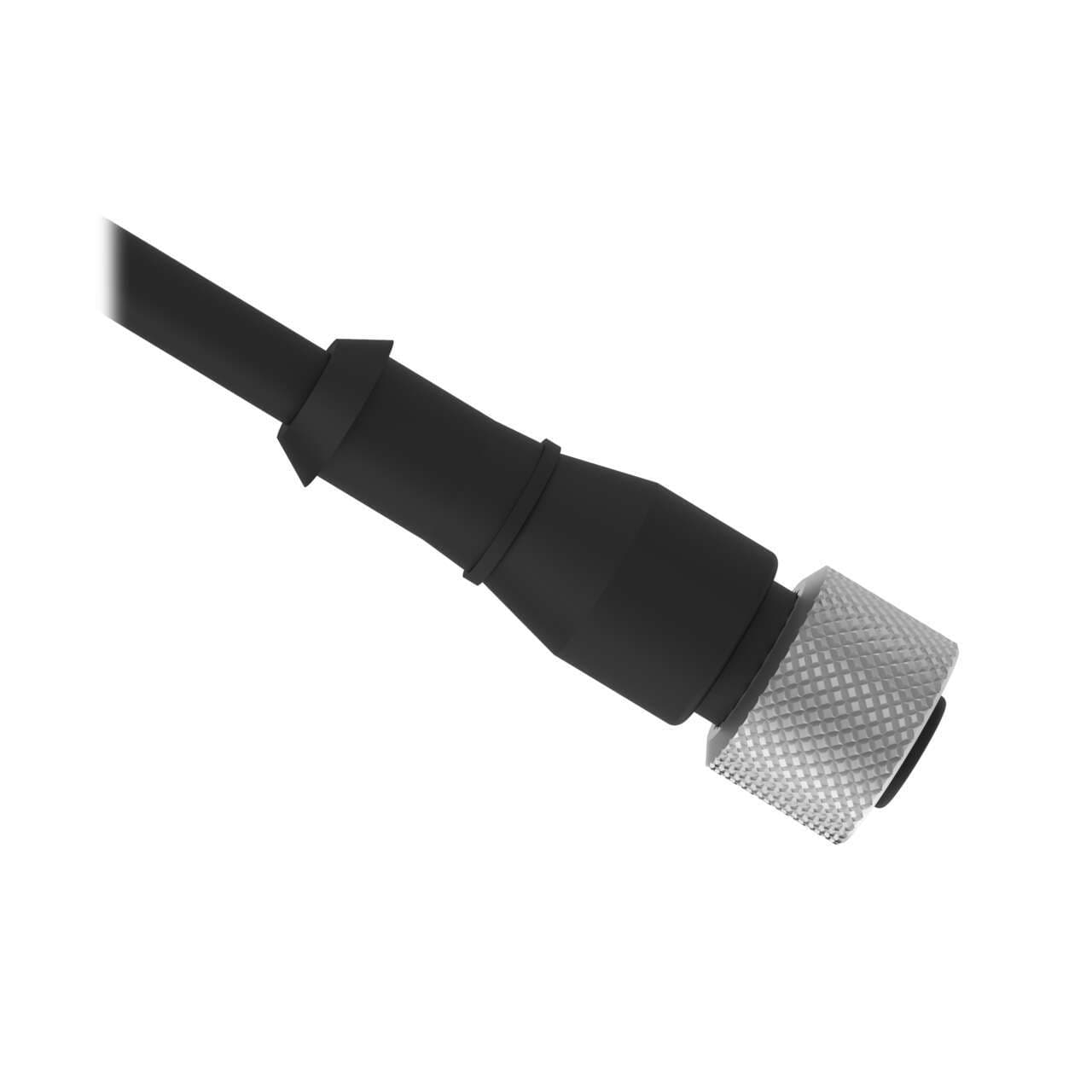

Cordset: Single Ended M12; 4-pin Straight Female; 5 m (16.4 ft) 4x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the MQDC-415 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight217.72416 g
- Country Of OriginUS
- Outside Cable Diameter (mm) 5.2
- Primary AWG 22
- Trunk Length (m) No Trunk
- Number of Contacts 4
- Secondary Connector Type Flying Leads
- Connector Body Material/Color PUR Black
- Primary Number of Conductors 4
- Oil/Grease Resistant No
- Primary Connector Type EURO
- Shield/No Shield No Shield
- Voltage Rating (V) 250 V ac/dc
- Cable Jacket Color Black
- Maximum Temp. (°C) 105
- Primary Gender Female
- IP Rating IP67
- Coupling Material/Color Nickel Plated Brass
- Cordset Length (m) 4.57
- Feature: Hazardous Area No
- Number of Connectors 1
- Current Rating (A) 4.0
- Primary Orientation Straight
- Cable Jacket Material PVC
- Minimum Temp. (°C) -40
- Primary Coupling Method M12 Single Key
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
MQDC-415 Description
Banner Engineering MQDC-415 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 4-pin Euro-style M12 female connector and bare end flying leads. The cable has a diameter of 5.2mm and is protected by black sheathing made of PVC. It is equipped with a nickel-plated brass coupling nut, ensuring a secure connection. The MQDC-415 operates within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67, making it suitable for challenging environments. This cable has a length of 15ft (5m) and is rated for a voltage of 250Vac.
