MQDC-430RA Banner Cordsets

Name: MQDC-430RA
Brand: Banner

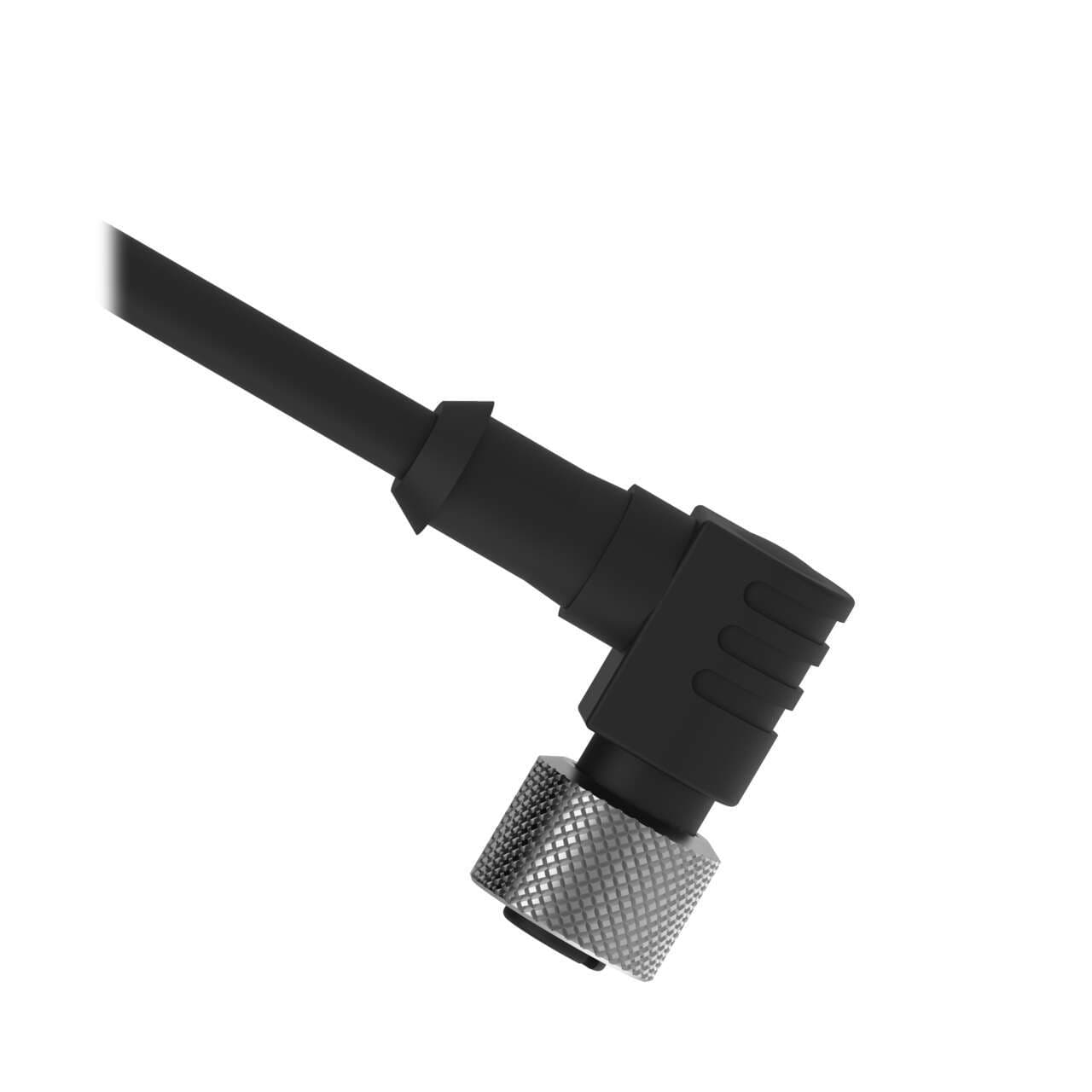

Banner MQDC-430RA Cordset: Single Ended M12; 4-pin Right-Angle Female; 9 m (29.53 ft) 4x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nut

Part#:MQDC-430RA

Manufacturer:Banner

Alt. Part#:27080

Product Lifecycle:Active

Get a quick Quote!

Cordset: Single Ended M12; 4-pin Right-Angle Female; 9 m (29.53 ft) 4x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nut

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the MQDC-430RA Banner price in the box on the right side or send a quick quote.

Product Details

Weight361.966416 g
Country Of OriginUS
Shield/No Shield
No Shield
Primary Connector Type
EURO
Secondary Connector Type
Flying Leads
Outside Cable Diameter (mm)
5.2
Minimum Temp. (°C)
-40
Oil/Grease Resistant
No
Current Rating (A)
4.0
Connector Body Material/Color
PUR Black
Primary AWG
22
Trunk Length (m)
No Trunk
Maximum Temp. (°C)
105
Primary Orientation
Right Angle
Cable Jacket Material
PVC
Coupling Material/Color
Nickel Plated Brass
Primary Gender
Female
Number of Connectors
1
Number of Contacts
4
Primary Coupling Method
M12 Single Key

Cable Jacket Color

Black

IP Rating

IP67

Primary Number of Conductors

Cordset Length (m)

9.14

Voltage Rating (V)

250 V ac/dc

Feature: Hazardous Area

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

MQDC-430RA Description

Banner Engineering MQDC-430RA is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 4-pin Euro-style M12 female angled connector and bare end flying leads. The cable has a diameter of 5.2mm and is encased in black sheathing made from PVC, ensuring durability and protection against environmental factors. The connector's coupling nut is made from nickel-plated brass, enhancing its resistance to corrosion. This model offers an ambient air temperature operation range of -40 to +105°C and is rated for a voltage of 250Vac. With a length of 30ft (9m) and a degree of protection rated at IP67, this cable is suited for a wide range of industrial environments.

Related documents MQDC-430RA Specs

MQDC-430RA 223455.pdf
