MQDC-406 Banner Cordsets
Part#:MQDC-406
Manufacturer:Banner
Alt. Part#:45136
Product Lifecycle:Active
Get a quick Quote!

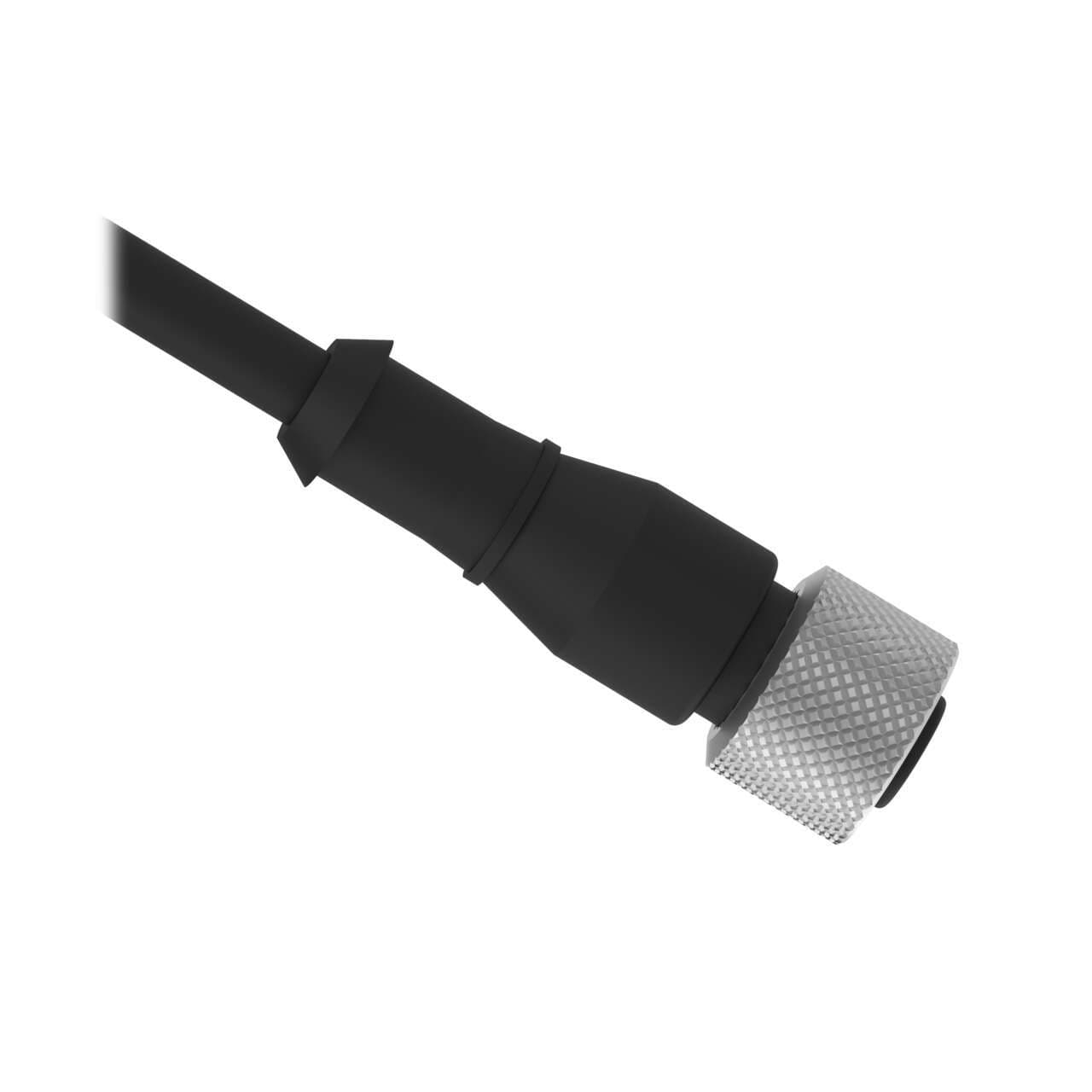

Cordset: Single Ended A-Code M12; 4-pin Straight Female Connector; 2 m (6.56 ft) Black PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the MQDC-406 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight81.64656 g
- Country Of OriginUS
- Cable Jacket Material PVC
- IP Rating IP67
- Primary Orientation Straight
- Number of Contacts 4
- Coupling Material/Color Nickel Plated Brass
- Feature: Hazardous Area No
- Trunk Length (m) No Trunk
- Primary Coupling Method M12 Single Key
- Primary Number of Conductors 4
- Outside Cable Diameter (mm) 5.2
- Primary Gender Female
- Secondary Connector Type Flying Leads
- Cable Jacket Color Black
- Primary Connector Type EURO
- Oil/Grease Resistant No
- Cordset Length (m) 1.83
- Voltage Rating (V) 250 V ac/dc
- Number of Connectors 1
- Connector Body Material/Color PUR Black
- Current Rating (A) 4.0
- Shield/No Shield No Shield
- Maximum Temp. (°C) 105
- Primary AWG 22
- Minimum Temp. (°C) -40
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
MQDC-406 Description
Banner Engineering MQDC-406 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 4-pin Euro-style M12 female connector and bare end flying leads. The cable has a diameter of 5.2mm and is encased in black sheathing made from PVC. It is equipped with a nickel-plated brass coupling nut. This model offers a degree of protection rated at IP67, making it suitable for environments where dust and moisture resistance are required. The MQDC-406 operates within an ambient air temperature range of -40 to +105°C and is rated for 250Vac. The cable length is 6.5ft (2m), facilitating connectivity over moderate distances.
