MQDC1-515 Banner Cordsets
Part#:MQDC1-515
Manufacturer:Banner
Alt. Part#:47812
Product Lifecycle:Active
Get a quick Quote!

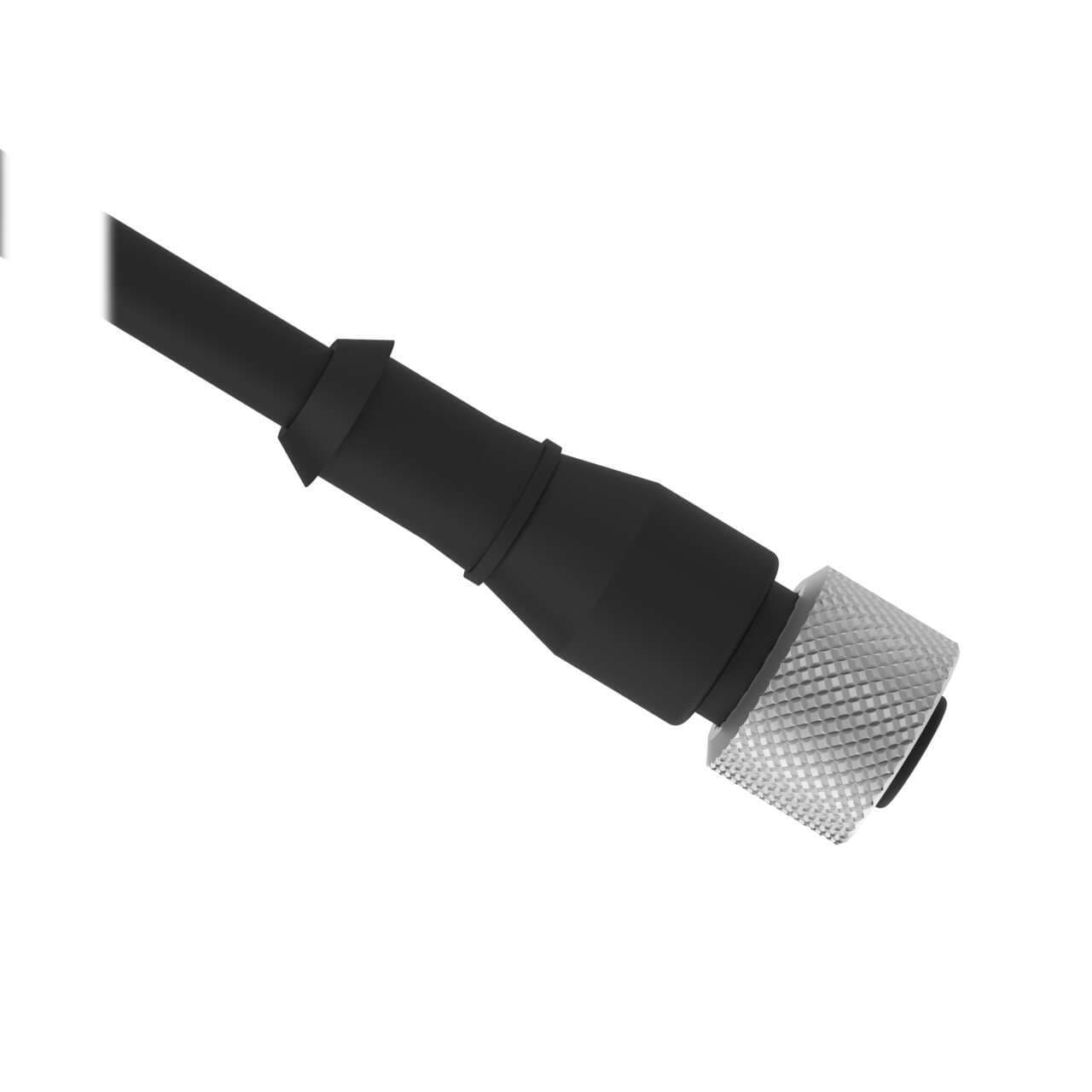

Cordset: Single Ended A-Code M12; 5-pin Straight Female Connector; 5 m (16.4 ft) Black PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the MQDC1-515 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight290.29888 g
- Country Of OriginUS
- Cordset Length (m) 4.57
- Current Rating (A) 4.0
- Number of Contacts 5
- Outside Cable Diameter (mm) 5.6
- Cable Jacket Color Black
- Connector Body Material/Color PUR Black
- Trunk Length (m) No Trunk
- Maximum Temp. (°C) 105
- Cable Jacket Material PVC
- Primary Coupling Method M12 Single Key
- Number of Connectors 1
- Shield/No Shield No Shield
- Primary Orientation Straight
- Primary Gender Female
- Voltage Rating (V) 250 V ac/dc
- Secondary Connector Type Flying Leads
- Minimum Temp. (°C) -40
- Primary Number of Conductors 5
- IP Rating IP67
- Primary AWG 22
- Primary Connector Type EURO
- Feature: Hazardous Area No
- Coupling Material/Color Nickel Plated Brass
- Oil/Grease Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
MQDC1-515 Description
Banner Engineering MQDC1-515 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.6mm diameter PVC cable and a length of 15ft (5m). This part is equipped with a 5-pin Euro-style M12 female straight connector and bare end flying leads for connectivity. The connector's coupling nut is made from nickel-plated brass, ensuring a secure connection. It operates within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67, making it suitable for use in environments where dust and water resistance are necessary. The cable is black, and it is rated for a voltage of 250Vac.
