MQDC2S-806 Banner Cordsets
Part#:MQDC2S-806
Manufacturer:Banner
Alt. Part#:70975
Product Lifecycle:Active
In-stock parts: 4
Jun 19, 2025
Cordset: Single Ended M12; 8-pin Straight Female; 2.04 m 8x24 Shielded Black PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the MQDC2S-806 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight108.86208 g
- Country Of OriginUS
- Shield Type Open
- Primary Number of Conductors 8
- Trunk Length (m) No Trunk
- IP Rating IP67
- Feature: Hazardous Area No
- Connector Body Material/Color PUR Black
- Current Rating (A) 2.0
- Outside Cable Diameter (mm) 5.6
- Maximum Temp. (°C) 105
- Secondary Connector Type Flying Leads
- Cordset Length (m) 1.83
- Primary Orientation Straight
- Number of Contacts 8
- Primary Connector Type EURO
- Primary AWG 24
- Number of Connectors 1
- Voltage Rating (V) 75 V ac/dc
- Coupling Material/Color Nickel Plated Brass
- Shield/No Shield Shield
- Primary Gender Female
- Cable Jacket Color Black
- Primary Coupling Method M12 Single Key
- Cable Jacket Material PVC
- Oil/Grease Resistant No
- Minimum Temp. (°C) -40
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
MQDC2S-806 Description

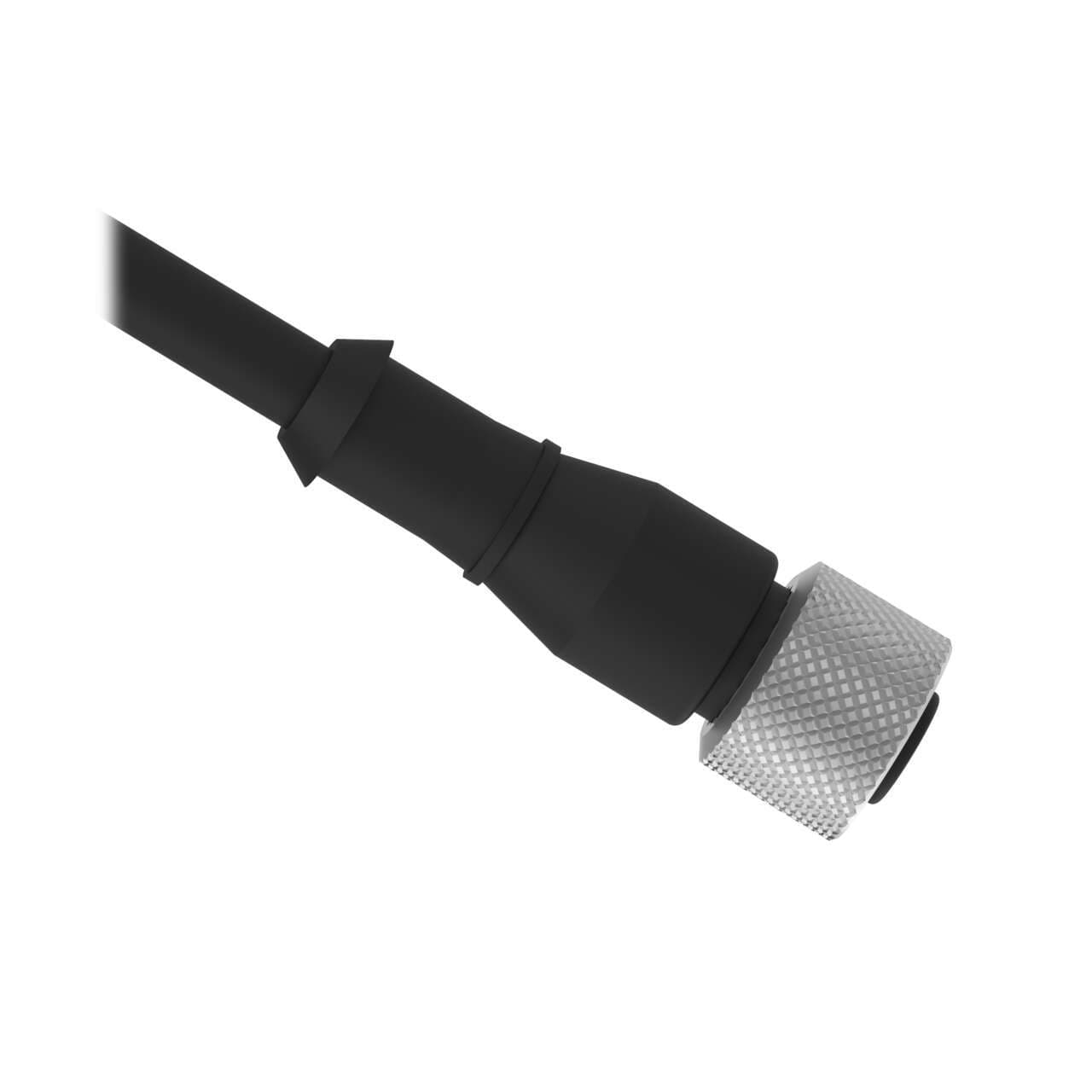

Banner Engineering MQDC2S-806 is a pre-assembled cable/cordset designed for a variety of applications requiring a durable connection. This single-ended cable features an 8-pin Euro-style M12 female connector with bare end flying leads, ensuring compatibility with a wide range of devices. The cable has a diameter of 5.6mm and is encased in black sheathing made from PVC, offering a degree of protection rated at IP67 against dust and water ingress. The coupling nut is made from chrome-plated brass, enhancing the durability of the connection. It operates effectively within an ambient air temperature range of -40 to +105°C. With a length of 6.5ft (2m) and rated for 75Vdc, this cable is designed to meet the needs of various automation applications.
