MQDC2S-815 Banner Cordsets

Name: MQDC2S-815
Brand: Banner

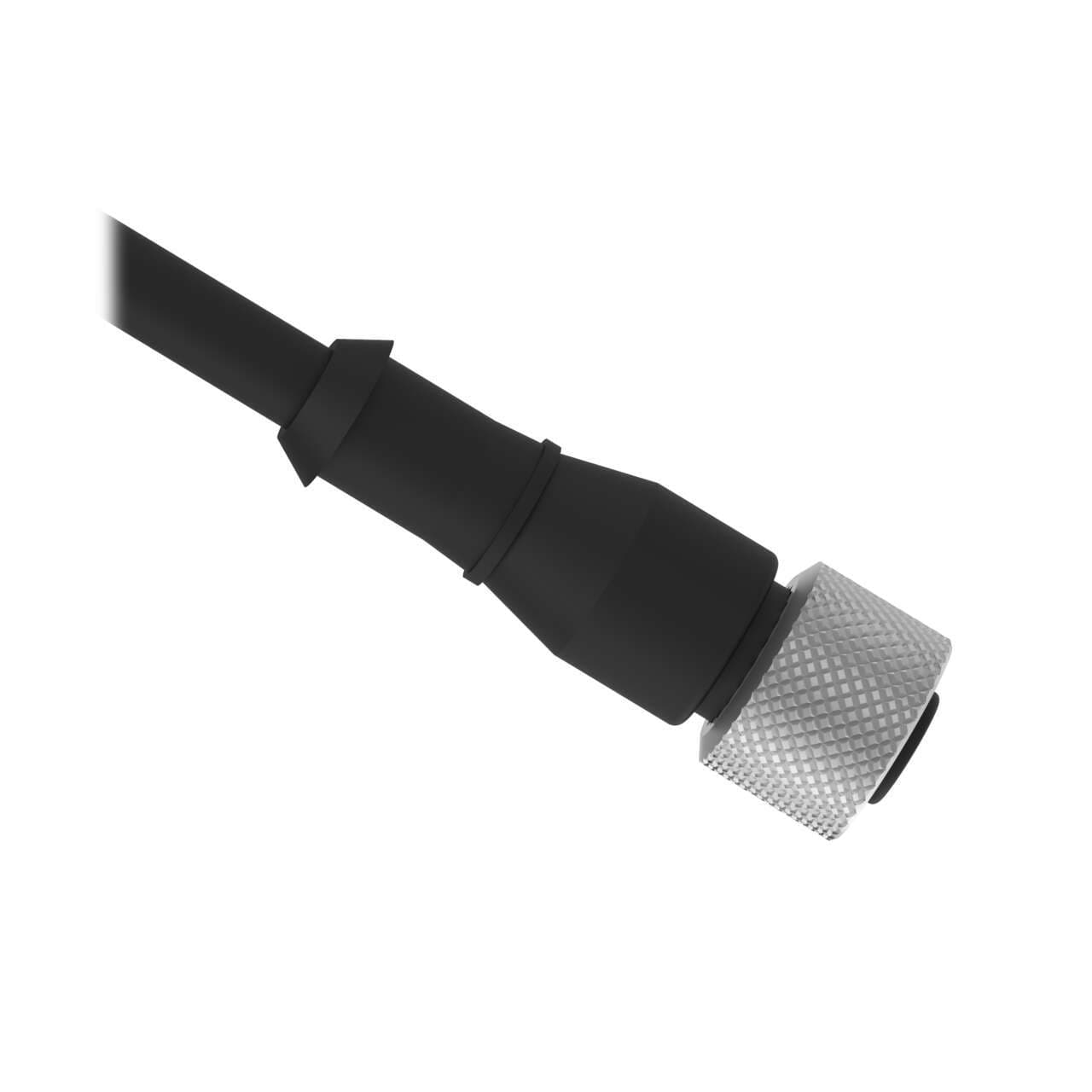

Banner MQDC2S-815 Cordset: Single Ended M12; 8-pin Straight Female; 5.04 m 8x24 Shielded Black PVC Jacket; Nickel-Plated Brass Coupling Nut

Part#:MQDC2S-815

Manufacturer:Banner

Alt. Part#:70976

Product Lifecycle:Active

Get a quick Quote!

Cordset: Single Ended M12; 8-pin Straight Female; 5.04 m 8x24 Shielded Black PVC Jacket; Nickel-Plated Brass Coupling Nut

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the MQDC2S-815 Banner price in the box on the right side or send a quick quote.

Product Details

Weight256.0073248 g
Country Of OriginUS
Cable Jacket Material
PVC
Primary Number of Conductors
8
Number of Contacts
8
Current Rating (A)
2.0
Secondary Connector Type
Flying Leads
Shield/No Shield
Shield
Primary Orientation
Straight
Trunk Length (m)
No Trunk
IP Rating
IP67
Connector Body Material/Color
PUR Black
Minimum Temp. (°C)
-40
Primary AWG
24
Cordset Length (m)
4.57
Primary Gender
Female
Shield Type
Open
Number of Connectors
1
Oil/Grease Resistant
No
Cable Jacket Color
Black

Maximum Temp. (°C)

105

Feature: Hazardous Area

Coupling Material/Color

Nickel Plated Brass

Primary Connector Type

EURO

Outside Cable Diameter (mm)

5.6

Voltage Rating (V)

75 V ac/dc

Primary Coupling Method

M12 Single Key

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

MQDC2S-815 Description

Banner Engineering MQDC2S-815 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended shielded design with a diameter of 5.6mm for the cable. This part comes with an 8-pin Euro-style M12 female connector and bare end flying leads, ensuring compatibility with a wide range of devices. The cable is protected by a chrome-plated brass coupling nut and PVC sheathing in black, offering a degree of protection rated at IP67, making it suitable for use in environments where dust and water resistance are necessary. It operates within an ambient air temperature range of -40 to +105°C. The MQDC2S-815 is rated for a voltage of 75Vdc and has a length of 15ft (5.04m), providing ample reach for various installation needs.
