MQDC1-530 Banner Cordsets
Part#:MQDC1-530
Manufacturer:Banner
Alt. Part#:47814
Product Lifecycle:Active
Get a quick Quote!
Cordset: Single Ended M12; 5-pin Straight Female; 9 m (29.53 ft) 5x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the MQDC1-530 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight463.117432 g
- Country Of OriginTW
- Cordset Length (m) 9.14
- Voltage Rating (V) 250 V ac/dc
- Shield/No Shield No Shield
- Cable Jacket Material PVC
- Primary AWG 22
- Cable Jacket Color Black
- IP Rating IP67
- Number of Connectors 1
- Minimum Temp. (°C) -40
- Maximum Temp. (°C) 105
- Secondary Connector Type Flying Leads
- Outside Cable Diameter (mm) 5.6
- Primary Number of Conductors 5
- Trunk Length (m) No Trunk
- Primary Connector Type EURO
- Feature: Hazardous Area No
- Number of Contacts 5
- Primary Coupling Method M12 Single Key
- Oil/Grease Resistant No
- Current Rating (A) 4.0
- Primary Gender Female
- Connector Body Material/Color PUR Black
- Coupling Material/Color Nickel Plated Brass
- Primary Orientation Straight
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
MQDC1-530 Description

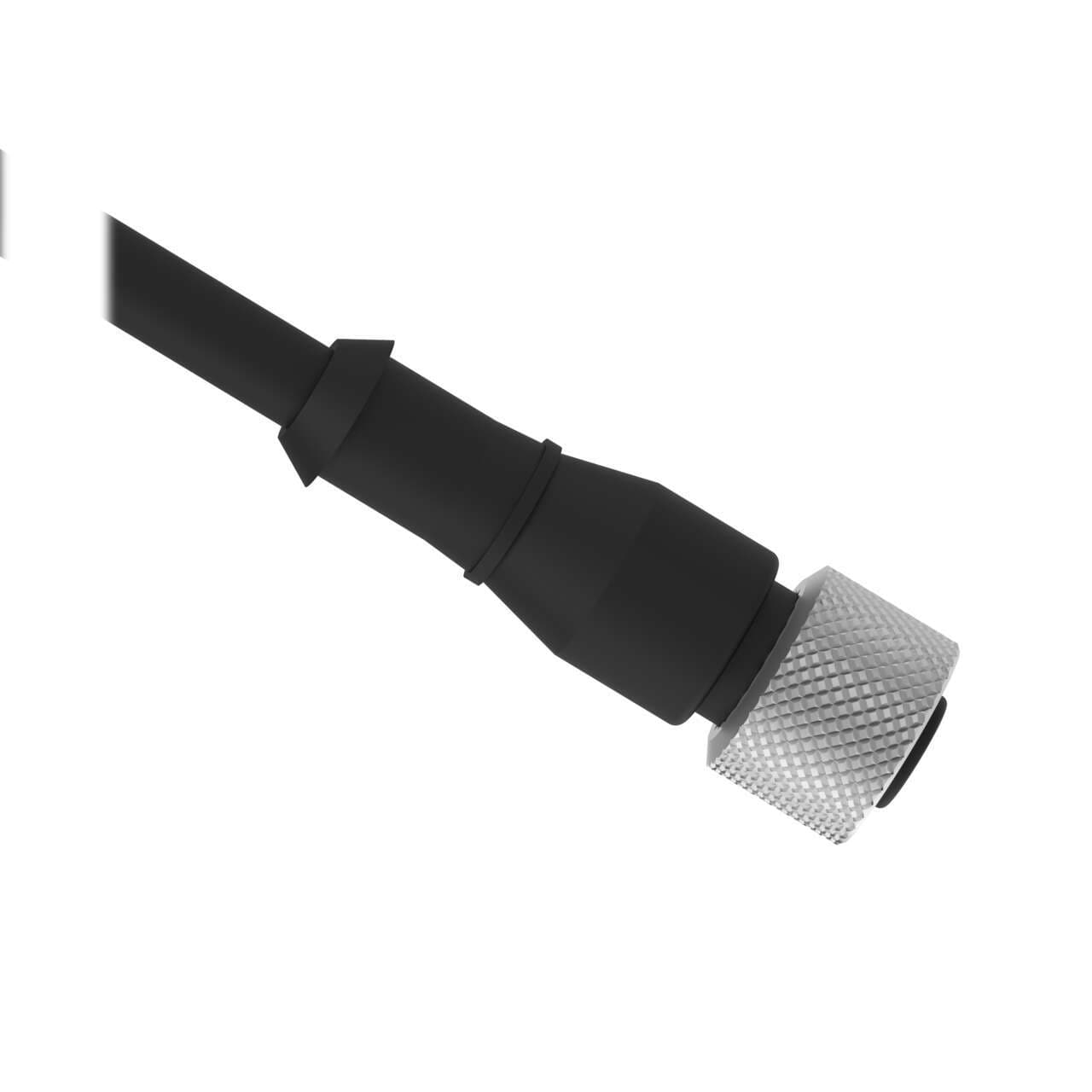

Banner Engineering MQDC1-530 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.6mm diameter PVC cable and a length of 30ft (9m). The cable is equipped with a 5-pin Euro-style M12 female straight connector and bare end flying leads for connectivity. The connection is secured with a nickel-plated brass coupling nut. This model is rated for a voltage of 250Vac and can operate in ambient air temperatures ranging from -40 to +105°C. It offers a degree of protection of IP67, ensuring protection against dust and water ingress. The cable sheathing is black.
1-year warranty
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
By purchasing this item, you agree to the Terms & Conditions
Quotebeam is NOT an authorized distributor of Banner
Shipping and Delivery Worldwide
calculate costs and time
Secure Payment Processing
with money back guarantee
1 year warranty
on all parts
Responsive Customer Support
we're here to help!
Need more details?
Feel free to chat with us or check our FAQ
Banner Disclaimer:
The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Banner Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Banner, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
