MQDC1-515RA Banner Cordsets

Name: MQDC1-515RA
Brand: Banner

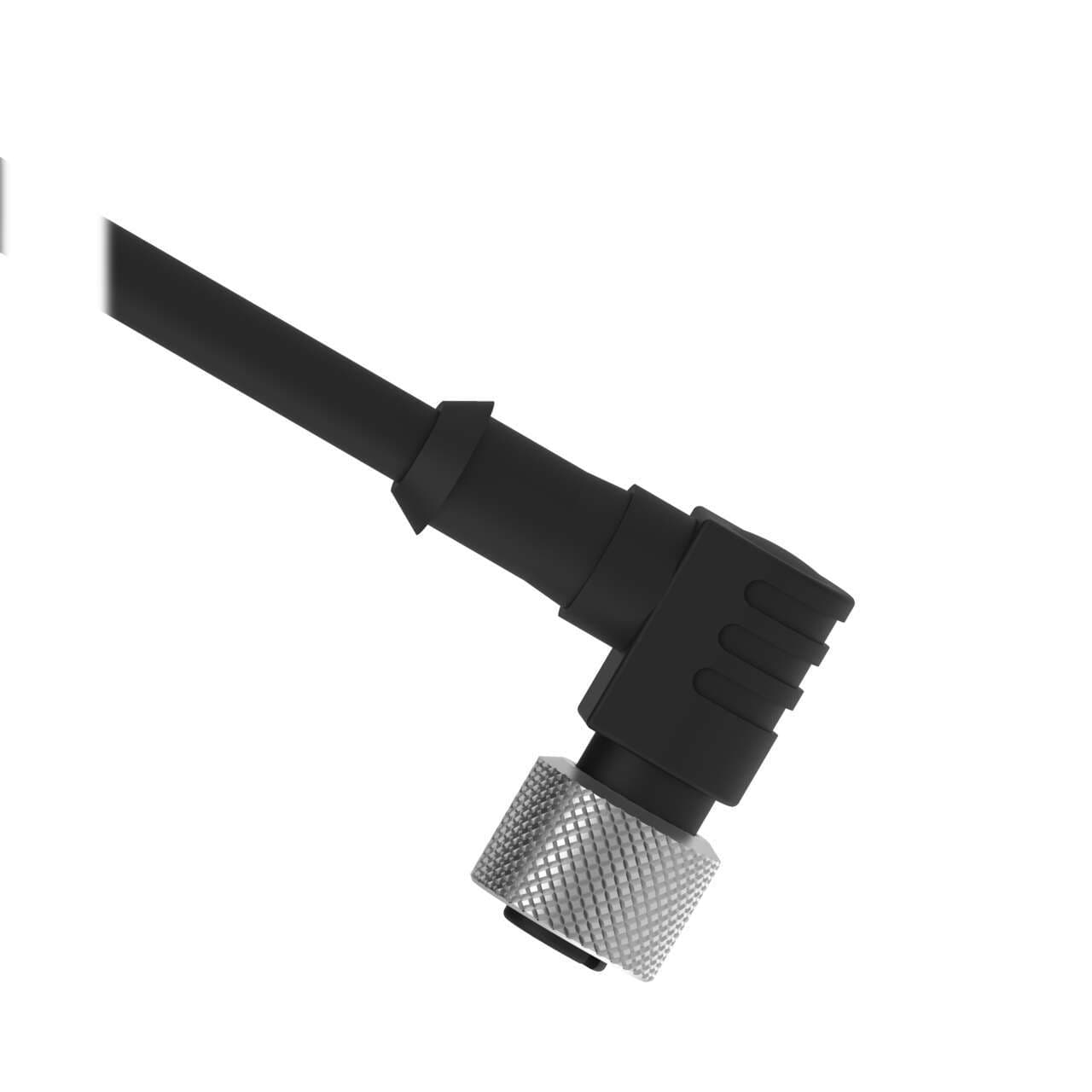

Banner MQDC1-515RA Cordset: Single Ended M12; 5-pin Right-Angle Female; 5 m (16.4 ft) 5x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nut

Part#:MQDC1-515RA

Manufacturer:Banner

Alt. Part#:47813

Product Lifecycle:Active

Get a quick Quote!

Cordset: Single Ended M12; 5-pin Right-Angle Female; 5 m (16.4 ft) 5x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nut

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the MQDC1-515RA Banner price in the box on the right side or send a quick quote.

Product Details

Weight263.08336 g
Country Of OriginUS
Shield/No Shield
No Shield
Cordset Length (m)
4.57
Number of Connectors
1
Primary Gender
Female
Trunk Length (m)
No Trunk
Primary Coupling Method
M12 Single Key
Oil/Grease Resistant
No
Connector Body Material/Color
PUR Black
Minimum Temp. (°C)
-40
Secondary Connector Type
Flying Leads
Maximum Temp. (°C)
105
Primary Connector Type
EURO
IP Rating
IP67
Cable Jacket Material
PVC
Voltage Rating (V)
250 V ac/dc
Primary Number of Conductors
5
Number of Contacts
5
Primary Orientation
Right Angle

Outside Cable Diameter (mm)

5.6

Current Rating (A)

4.0

Feature: Hazardous Area

Coupling Material/Color

Nickel Plated Brass

Cable Jacket Color

Black

Primary AWG

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

MQDC1-515RA Description

Banner Engineering MQDC1-515RA is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.6mm diameter PVC cable and a length of 15ft (5m). This part includes a 5-pin Euro-style M12 female angled connector with bare end flying leads for connectivity. The connection nut is made from nickel-plated brass, ensuring durability. It operates effectively within an ambient air temperature range of -40 to +105°C. The MQDC1-515RA offers a degree of protection rated at IP67, making it suitable for environments where dust and moisture resistance is required. The cable is sheathed in black and is rated for a maximum voltage of 250Vac.
