MQDC-575 Banner Cordsets
Part#:MQDC-575
Manufacturer:Banner
Alt. Part#:14067
Product Lifecycle:Active
In-stock parts: 6
Jun 20, 2025

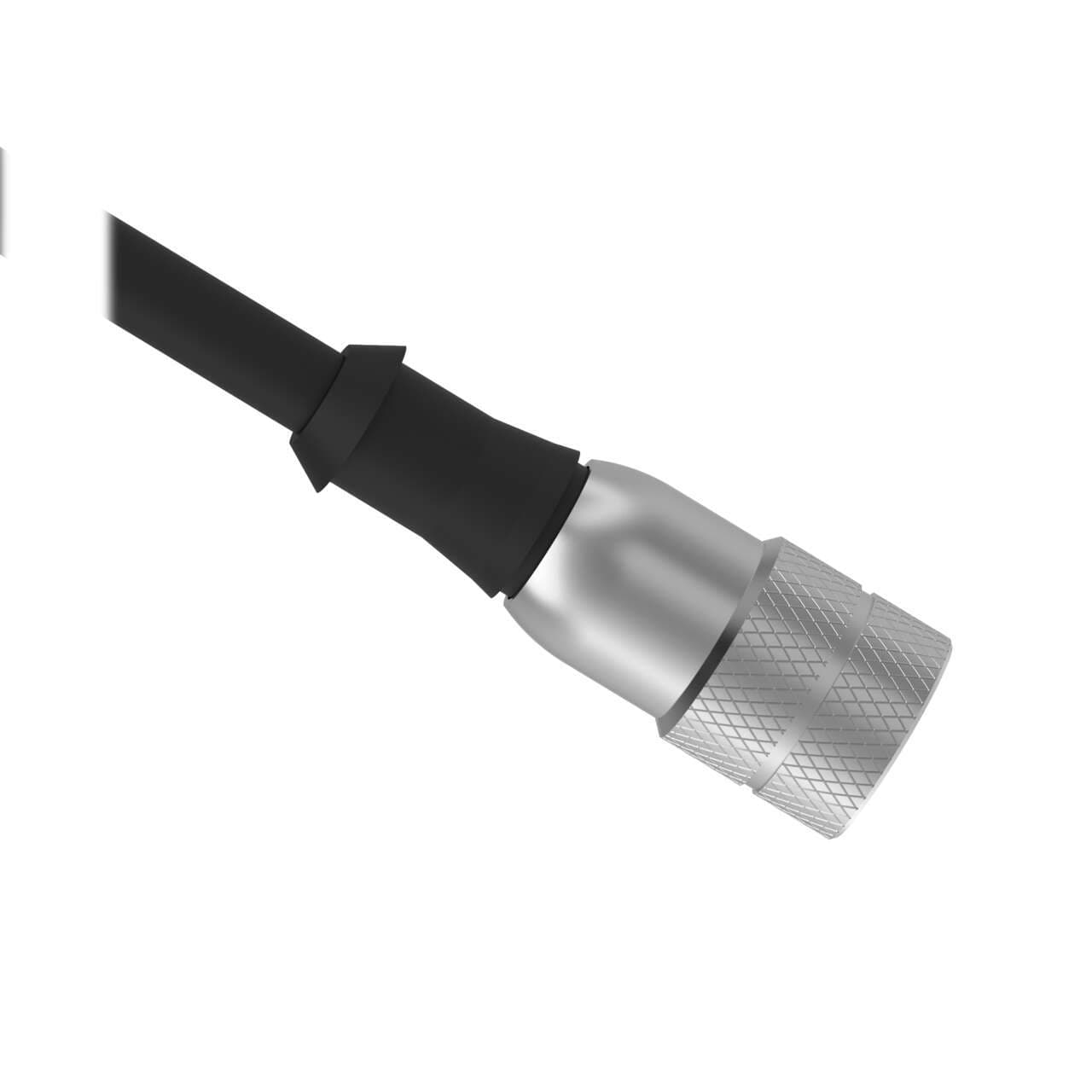

Cordset: Single Ended MICRO; 5-pin Straight Female C Code; 23 m 5x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the MQDC-575 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight1088.6208 g
- Country Of OriginTW
- Trunk Length (m) No Trunk
- Primary Connector Type MICRO
- Connector Body Material/Color PUR Black
- Primary Gender Female
- Cable Jacket Material PVC
- Minimum Temp. (°C) -40
- Primary Coupling Method 1/2"-20 Dual Key
- Cordset Length (m) 23
- Primary Orientation Straight
- Cable Jacket Color Black
- Number of Connectors 1
- Primary Number of Conductors 5
- Shield/No Shield No Shield
- Current Rating (A) 4.0
- Secondary Connector Type Flying Leads
- Number of Contacts 5
- IP Rating IP67
- Feature: Hazardous Area No
- Coupling Material/Color Nickel Plated Brass
- Voltage Rating (V) 250 V ac/dc
- Oil/Grease Resistant No
- Outside Cable Diameter (mm) 5.6
- Maximum Temp. (°C) 105
- Primary AWG 22
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
MQDC-575 Description
Banner Engineering MQDC-575 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.6mm diameter PVC cable and is equipped with a 5-pin 1/2"-20 micro female connector and bare end flying leads. The cable operates effectively within an ambient air temperature range of -40 to +105°C. It offers a degree of protection rated at IP67, making it suitable for environments where dust and temporary immersion in water are concerns. The black sheathing encases the 75ft (approximately 23m) length of the cable, which is rated for 250Vac.
