MQDC-315RA Banner Cordsets
Part#:MQDC-315RA
Manufacturer:Banner
Alt. Part#:26847
Product Lifecycle:Active
Get a quick Quote!

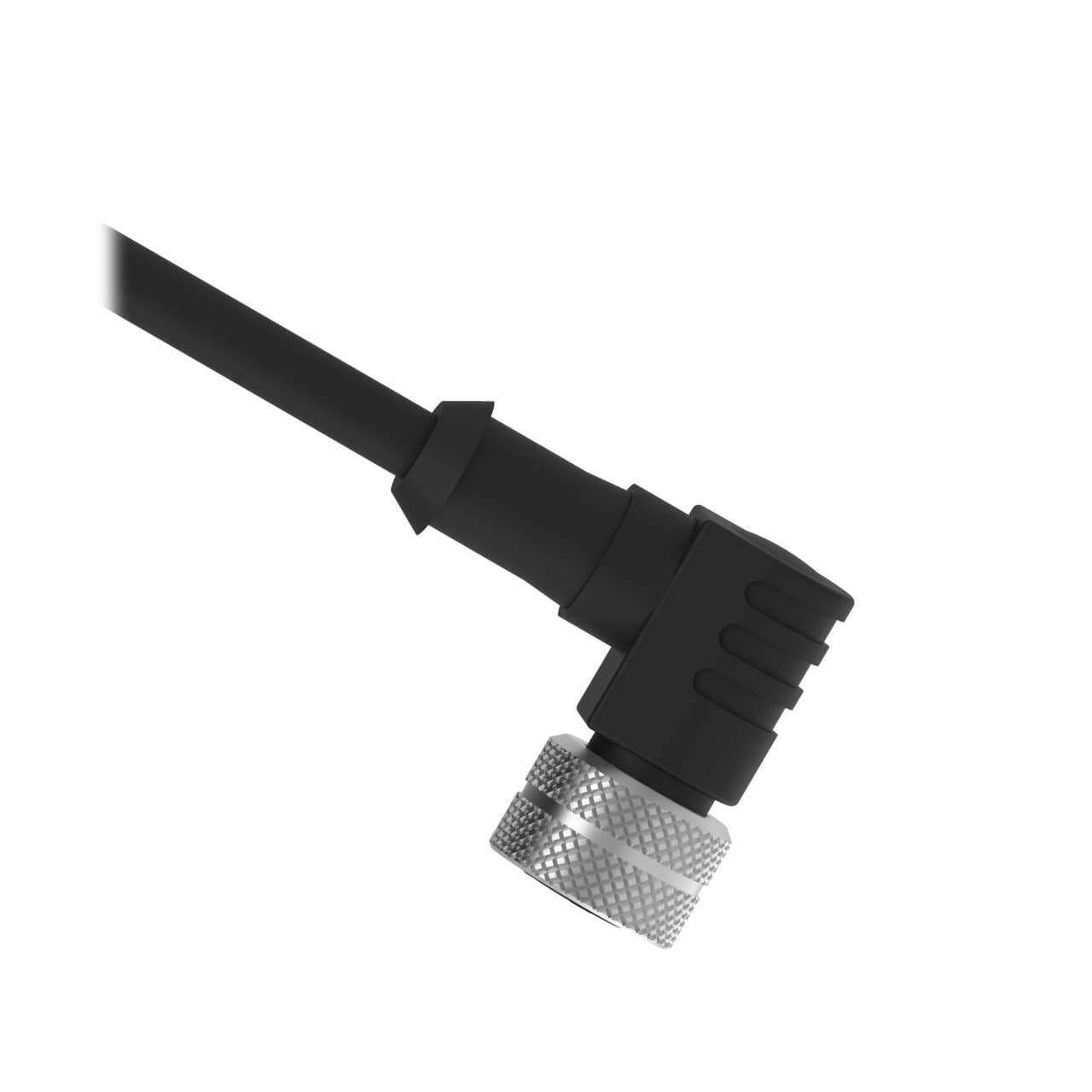

Cordset: Single Ended MICRO; 3-pin Right-Angle Female C Code; 4.57 m 3x22 Black PVC Jacket; Black PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the MQDC-315RA Banner price in the box on the right side or send a quick quote.
Product Details
- Weight184.611944 g
- Country Of OriginTW
- Cable Jacket Color Black
- Maximum Temp. (°C) 105
- Primary Gender Female
- Trunk Length (m) No Trunk
- Secondary Connector Type Flying Leads
- Cordset Length (m) 4.57
- Primary Orientation Right Angle
- Coupling Material/Color Nickel Plated Brass
- Feature: Hazardous Area No
- Number of Contacts 3
- Minimum Temp. (°C) -40
- Primary Number of Conductors 3
- Number of Connectors 1
- Voltage Rating (V) 250 V ac/dc
- Primary AWG 22
- Cable Jacket Material PVC
- Current Rating (A) 4.0
- Primary Connector Type MICRO
- Outside Cable Diameter (mm) 5.2
- IP Rating IP67
- Connector Body Material/Color PUR Black
- Primary Coupling Method 1/2"-20 Dual Key
- Shield/No Shield No Shield
- Oil/Grease Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
MQDC-315RA Description
Banner Engineering MQDC-315RA is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.2mm diameter PVC cable and a 3-pin 1/2"-20 micro female angled connector with bare end flying leads. The cable operates effectively within an ambient air temperature range of -40 to +105°C. It offers a degree of protection rated at IP67, ensuring its suitability for environments where dust and water resistance are necessary. The coupling nut is made from chrome-plated brass, enhancing its durability. This black-sheathed cable has a length of 15ft (5m) and is rated for a voltage of 250Vac.
