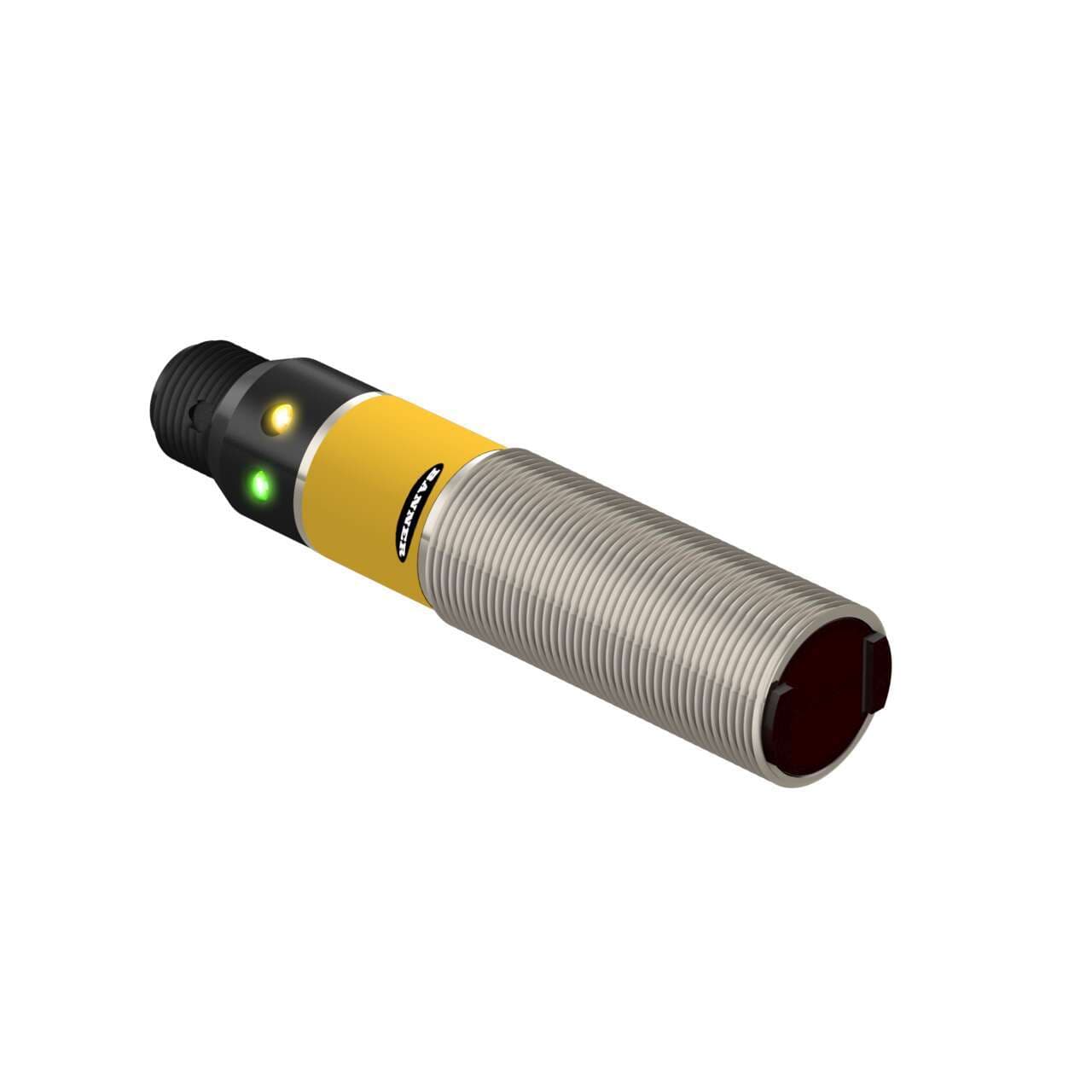

M18SP6FF50Q Banner Retroreflective Sensors
Part#:M18SP6FF50Q
Manufacturer:Banner
Alt. Part#:48671
Product Lifecycle:Active
Get a quick Quote!
EZ-BEAM M18 Series: Fixed Field; Range: 50 mm; Input: 10-30 V dc; Output: Complementary PNP; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Retroreflective Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the M18SP6FF50Q Banner price in the box on the right side or send a quick quote.
Product Details
- Weight99.79024 g
- Country Of OriginMX
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Thread size M18
- Response time 3ms / 0.003 s
- Compliant with standard(s) CE
- Functions Fixed-field photo-electric sensor green LED (power ON) yellow LED (output state)
- Material Stainless steel housing Acrylic lns.
- Product series / family name EZ-BEAM series
- Sensing distance 50mm
- Operating mode Light-ON Dark-ON
- Sub-range name M18 series
- Design background suppression system
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Degree of protection IP69K NEMA 6P
- Order code / Manufacturer SKU 48671
- Main function Sensor (Photo-electric)
- Light Color Infrared (IR)
- Shape Cylindrical threaded/barrel
- Digital outputs 1 x digital output (PNP transistor)
- Ambient air temperature for operation -40...+70 °C
- Primary Housing Material Stainless Steel
- Output response time (ms) 3
- Number of Pins 4
- Feature: Audible No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Feature: Hazardous Area No
- Housing Style Barrel
- Connection Integral QD
- Repeatability (µs) 750
- Opposed Mode Emitter/Receiver N/A
- Max Sensing Distance (mm) 50
- Sensing Beam Infrared LED
- Quick Disconnect Type M12 (Euro)
- Delay at Power-up (ms) 100
- Max Op. Temp. (°C) 70
- IP Rating IP69
- Indicator LEDs
- Input/Output Discrete
- Min Op. Temp. (°C) -40
- Special Feature: Water Detection No
- Barrel Diameter (mm) 18
- DeviceNet No
- Sensing Mode (General) Proximity
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Washdown Rated Yes
- Power DC
- Operation Light/Dark Operate
- NEMA Rating NEMA 6P
- Feature: Timing (Hold/Delay) No
- Feature: Encapsulated Yes
- Outputs PNP
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Adjustments N/A
- Feature: Health/ Marginal Signal Output Yes
- Feature: Chemical Resistant Yes
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
M18SP6FF50Q Description
Banner Engineering M18SP6FF50Q is a fixed-field photo-electric sensor within the M18 series, featuring a background suppression system and utilizing infrared (IR) light. This sensor is designed with an M18 cylindrical threaded/barrel shape and is constructed with a stainless steel housing and an acrylic lens. It comes pre-equipped with a 4-pin Euro-style M12 connector for connectivity. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. It is designed to function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP69K NEMA 6P. The operating modes include Light-ON and Dark-ON, with a thread size of M18. It has a sensing distance of 50mm and features 1 x digital output (PNP transistor; complementary NO/NC) with a response time of 3ms / 0.003 s.
