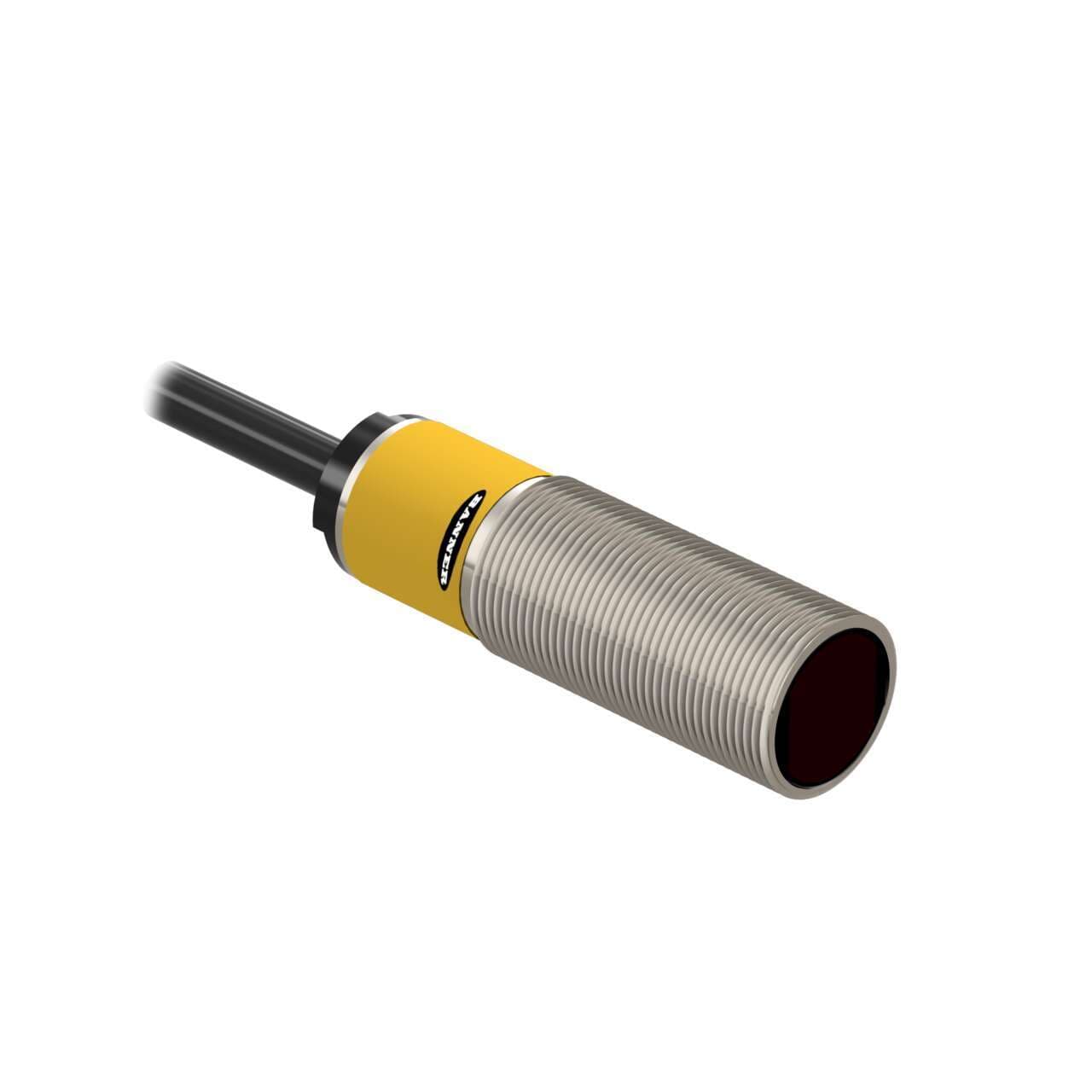

M18SP6DLQ Banner Retroreflective Sensors
Part#:M18SP6DLQ
Manufacturer:Banner
Alt. Part#:48667
Product Lifecycle:Active
Get a quick Quote!
EZ-BEAM M18 Series: Diffuse; Range: 300 mm; Input: 10-30 V dc; Output: Complementary PNP; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Retroreflective Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the M18SP6DLQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight99.79024 g
- Country Of OriginMX
- Product series / family name EZ-BEAM series
- Main function Sensor (Photo-electric)
- Sub-range name M18 series
- Design diffuse mode
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Cylindrical threaded/barrel
- Functions Photo-electric sensor green LED (power ON) yellow LED (output state)
- Light Color Infrared (IR)
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Material Stainless steel housing Acrylic lns.
- Sensing distance 300mm
- Response time 3ms / 0.003 s
- Order code / Manufacturer SKU 48667
- Thread size M18
- Degree of protection IP69K NEMA 6P
- Operating mode Light-ON Dark-ON
- Ambient air temperature for operation -40...+70 °C
- Digital outputs 1 x digital output (PNP transistor)
- Compliant with standard(s) CE
- Input/Output Discrete
- Min Op. Temp. (°C) -40
- Lens Material Acrylic
- Sensing Mode (Detailed) Diffuse
- Quick Disconnect Type M12 (Euro)
- Special Feature: Intrinsically Safe No
- Sensing Beam Infrared LED
- Output response time (ms) 3
- Number of Pins 4
- Housing Style Barrel
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 6P
- Opposed Mode Emitter/Receiver N/A
- Sensing Mode (General) Proximity
- Outputs PNP
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Power DC
- Operation Light/Dark Operate
- Repeatability (µs) 750
- DeviceNet No
- Max Sensing Distance (mm) 300
- Special Feature: Water Detection No
- Delay at Power-up (ms) 100
- Feature: Encapsulated Yes
- Feature: Health/ Marginal Signal Output Yes
- Primary Housing Material Stainless Steel
- Connection Integral QD
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Washdown Rated Yes
- Feature: Chemical Resistant Yes
- Feature: Hazardous Area No
- IO Link No
- Adjustments N/A
- Indicator LEDs
- Feature: Audible No
- Barrel Diameter (mm) 18
- IP Rating IP69
- Feature: Timing (Hold/Delay) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
M18SP6DLQ Description
Banner Engineering M18SP6DLQ is a photo-electric sensor from the M18 series designed in a diffuse mode with infrared (IR) light color. This sensor features an M18 cylindrical threaded/barrel shape with a stainless steel housing and an acrylic lens. It is pre-equipped with a 4-pin Euro-style M12 connector for connectivity. The sensor operates on a supply voltage range of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc. It is designed to function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP69K NEMA 6P. The operating modes include Light-ON and Dark-ON, with a sensing distance of up to 300mm. It provides 1 x digital output (PNP transistor; complementary NO/NC) and has a response time of 3ms / 0.003 s.
Related documents M18SP6DLQ Specs
