M18SP6DLQPMA Banner Electronic Components
Part#:M18SP6DLQPMA
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

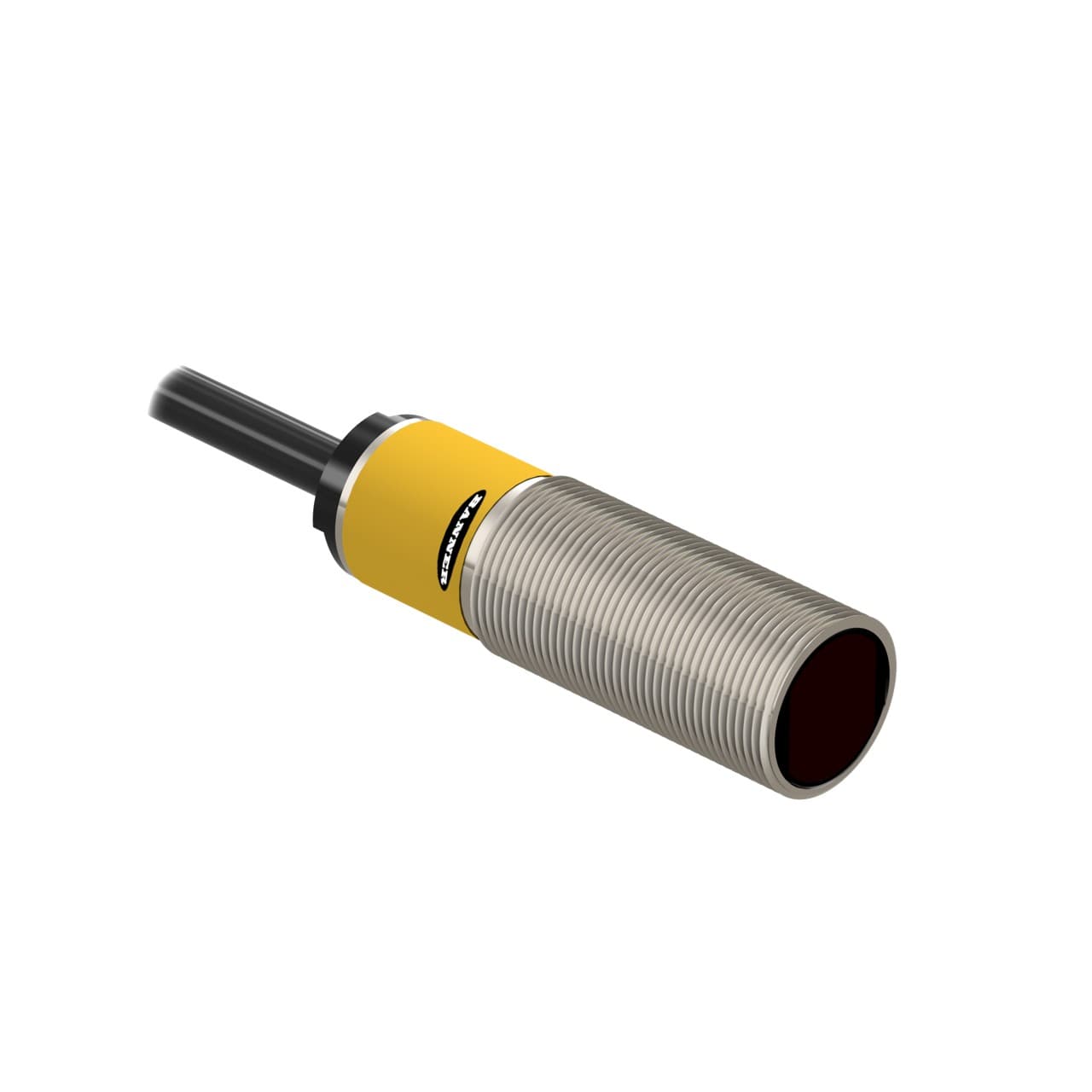

M18SP6DLQPMA 6 in EURO 4-PIN PUR
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the M18SP6DLQPMA Banner price in the box on the right side or send a quick quote.
Product Details
- Outputs PNP
- Operation Light/Dark Operate
- IP Rating IP69
- Feature: Encapsulated Yes
- Power DC
- Power Supply/Supply Voltage 10-30 V dc
- Repeatability (µs) 750
- Feature: Audible No
- Input/Output Discrete
- Max Op. Temp. (°C) 70
- Feature: Washdown Rated Yes
- Feature: Chemical Resistant Yes
- Sensing Mode (General) Proximity
- Min Op. Temp. (°C) -40
- Connection Pigtail PUR QD
- Opposed Mode Emitter/Receiver N/A
- Primary Housing Material Stainless Steel
- Output response time (ms) 3
- Barrel Diameter (mm) 18
- Indicator LEDs
- Max Sensing Distance (mm) 300
- Special Feature: Remote Teach No
- NEMA Rating NEMA 6P
- Sensing Beam Infrared LED
- Special Feature: Intrinsically Safe No
- Feature: Timing (Hold/Delay) No
- Feature: Health/ Marginal Signal Output Yes
- Sensing Mode (Detailed) Diffuse
- Delay at Power-up (ms) 100
- Max Op. Relative Humidity [%] 90% @ 50°C
- IO Link No
- Housing Style Barrel
- Quick Disconnect Type M12 (Euro)
- Special Feature: Water Detection No
- Lens Material Acrylic
- DeviceNet No
- Cable Length (m) 0.15
- Number of Pins 4
- Adjustments N/A
- Feature: Hazardous Area No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents M18SP6DLQPMA Specs
