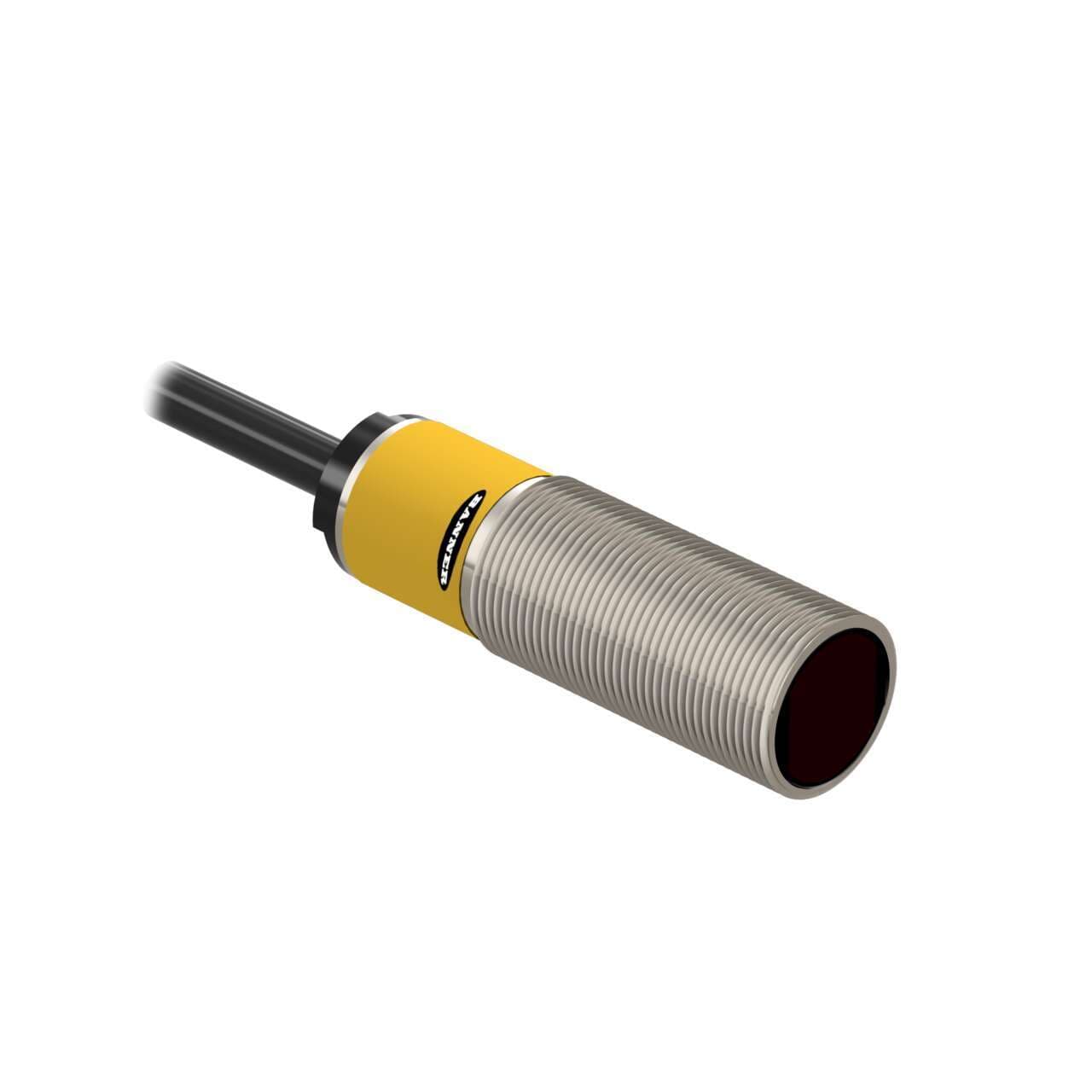

M18SN6LQ Banner Retroreflective Sensors
Part#:M18SN6LQ
Manufacturer:Banner
Alt. Part#:48653
Product Lifecycle:Active
Get a quick Quote!
EZ-BEAM M18 Series: Retro; Range: 2 m; Input: 10-30 V dc; Output: Complementary NPN; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Retroreflective Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the M18SN6LQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight99.79024 g
- Country Of OriginCN
- Primary brand Banner Engineering
- Light Color Infrared (IR)
- Functions Photo-electric sensor green LED (power ON) yellow LED (output state)
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Operating mode Light-ON Dark-ON
- Main function Sensor (Photo-electric)
- Sensing distance 2m
- Thread size M18
- Digital outputs 1 x digital output (NPN transistor)
- Compliant with standard(s) CE
- Product series / family name EZ-BEAM series
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Response time 3ms / 0.003 s
- Order code / Manufacturer SKU 48653
- Sub-range name M18 series
- Design retro-reflective mode
- Material Stainless steel housing Acrylic lns.
- Shape Cylindrical threaded/barrel
- Degree of protection IP69K NEMA 6P
- Ambient air temperature for operation -40...+70 °C
- Input/Output Discrete
- Sensing Beam Infrared LED
- Connection Integral QD
- NEMA Rating NEMA 6P
- Feature: Audible No
- Outputs NPN
- Max Sensing Distance (mm) 2000
- Sensing Mode (Detailed) Non-Polarized
- Quick Disconnect Type M12 (Euro)
- Special Feature: Water Detection No
- Adjustments N/A
- Feature: Encapsulated Yes
- IO Link No
- Primary Housing Material Stainless Steel
- Output response time (ms) 3
- Repeatability (µs) 750
- Barrel Diameter (mm) 18
- Power DC
- Operation Light/Dark Operate
- Delay at Power-up (ms) 100
- Lens Material Acrylic
- Feature: Hazardous Area No
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Feature: Timing (Hold/Delay) No
- Feature: Health/ Marginal Signal Output Yes
- Min Op. Temp. (°C) -40
- Number of Pins 4
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Washdown Rated Yes
- Housing Style Barrel
- Max Op. Temp. (°C) 70
- IP Rating IP69
- Indicator LEDs
- DeviceNet No
- Sensing Mode (General) Retroreflective
- Special Feature: Intrinsically Safe No
- Opposed Mode Emitter/Receiver N/A
- Feature: Chemical Resistant Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
M18SN6LQ Description
Banner Engineering M18SN6LQ is a photo-electric sensor from the M18 series designed in a retro-reflective mode with an infrared (IR) light color. This sensor features an M18 cylindrical threaded/barrel shape with a stainless steel housing and an acrylic lens. It is pre-equipped with a 4-pin Euro-style M12 connector for connectivity. The sensor operates on a supply voltage range of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and can function within an ambient air temperature range of -40 to +70°C. It offers a degree of protection rated at IP69K NEMA 6P, ensuring durability in various environmental conditions. The operating modes include Light-ON and Dark-ON, with a sensing distance of up to 2 meters. It also features 1 x digital output (NPN transistor; complementary NO/NC) and boasts a quick response time of 3ms / 0.003 s.
Related documents M18SN6LQ Specs
