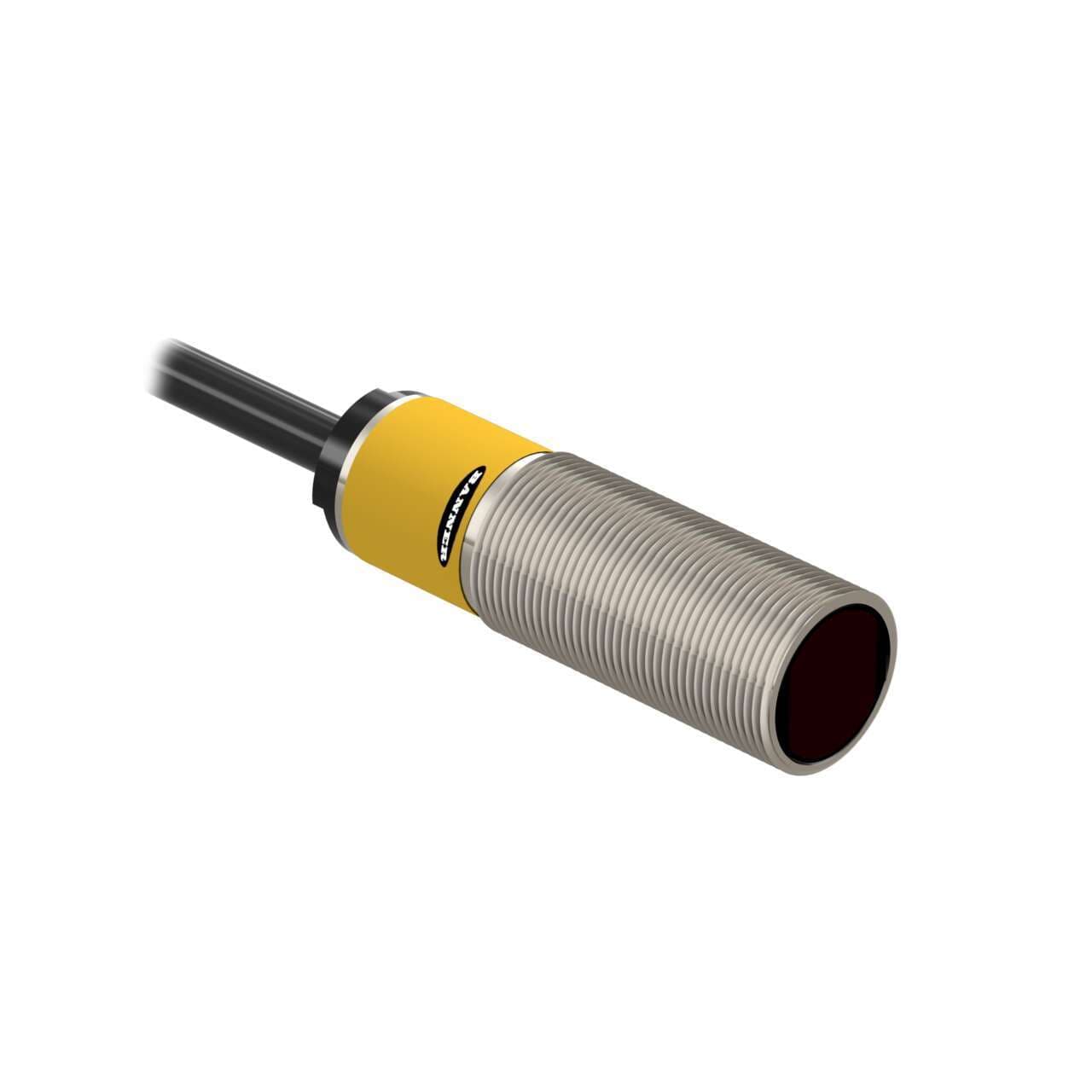

M18SN6R Banner Retroreflective Sensors
Part#:M18SN6R
Manufacturer:Banner
Alt. Part#:48348
Product Lifecycle:Active
Get a quick Quote!
EZ-BEAM M18 Series: Receiver; Range: 20 m; Input: 10-30 V dc; Output: Complementary NPN; 2 m (6.5 ft) Cable
About the manufacturer: Banner is one of the manufacturers that offers Retroreflective Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the M18SN6R Banner price in the box on the right side or send a quick quote.
Product Details
- Weight190.50864 g
- Country Of OriginMX
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Sub-range name M18 series
- Thread size M18
- Degree of protection IP69K NEMA 6P
- Product series / family name EZ-BEAM series
- Design through-beam system / opposed mode
- Digital outputs 1 x digital output (NPN transistor)
- Operating mode Light-ON Dark-ON
- Main function Sensor (Photo-electric)
- Light Color Infrared (IR)
- Shape Cylindrical threaded/barrel
- Material Stainless steel housing Polycarbonate lns.
- Functions Photo-electric sensor receiver green LED (power ON) yellow LED (output state)
- Response time 3ms / 0.003 s
- Ambient air temperature for operation -40...+70 °C
- Compliant with standard(s) CE
- Order code / Manufacturer SKU 48348
- Input/Output Discrete
- Outputs NPN
- Special Feature: Water Detection No
- Indicator LEDs
- IO Link No
- Cable Length (m) 2
- Primary Housing Material Stainless Steel
- Power DC
- Sensing Beam Infrared LED
- Sensing Mode (Detailed) Receiver
- Max Op. Temp. (°C) 70
- Max Sensing Distance (mm) 20000
- Sensing Mode (General) Opposed
- Housing Style Barrel
- Output response time (ms) 3 ON/1.5 OFF
- Quick Disconnect Type No QD
- Connection Cable
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Intrinsically Safe No
- Min Op. Temp. (°C) -40
- Operation Light/Dark Operate
- Special Feature: Remote Teach No
- Delay at Power-up (ms) 100
- NEMA Rating NEMA 6P
- Repeatability (µs) 375
- DeviceNet No
- Number of Pins 4
- Opposed Mode Emitter/Receiver Receiver
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Timing (Hold/Delay) No
- IP Rating IP69
- Feature: Health/ Marginal Signal Output Yes
- Adjustments N/A
- Feature: Audible No
- Feature: Encapsulated Yes
- Lens Material Polycarbonate
- Feature: Chemical Resistant Yes
- Feature: Washdown Rated Yes
- Barrel Diameter (mm) 18
- Feature: Hazardous Area No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
M18SN6R Description
Banner Engineering M18SN6R is a photo-electric sensor designed for through-beam system applications, functioning as the receiver component within the M18 series. It operates with infrared (IR) light and is encased in a durable stainless steel housing with a polycarbonate lens. This sensor is shaped in an M18 cylindrical threaded/barrel form for easy installation. It comes pre-wired with a 6.5ft / 2m cable featuring bare end flying leads for connection. The M18SN6R requires a supply voltage ranging from 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. It is built to withstand ambient air temperatures from -40 to +70 degrees Celsius and offers a high degree of protection rated at IP69K and NEMA 6P, ensuring its operation in demanding environments. The sensor supports both Light-ON and Dark-ON operating modes, has a thread size of M18, and can detect objects up to 20m away. It features a single digital output (NPN transistor; complementary NO/NC) and boasts a quick response time of 3ms / 0.003 s.
Related documents M18SN6R Specs
