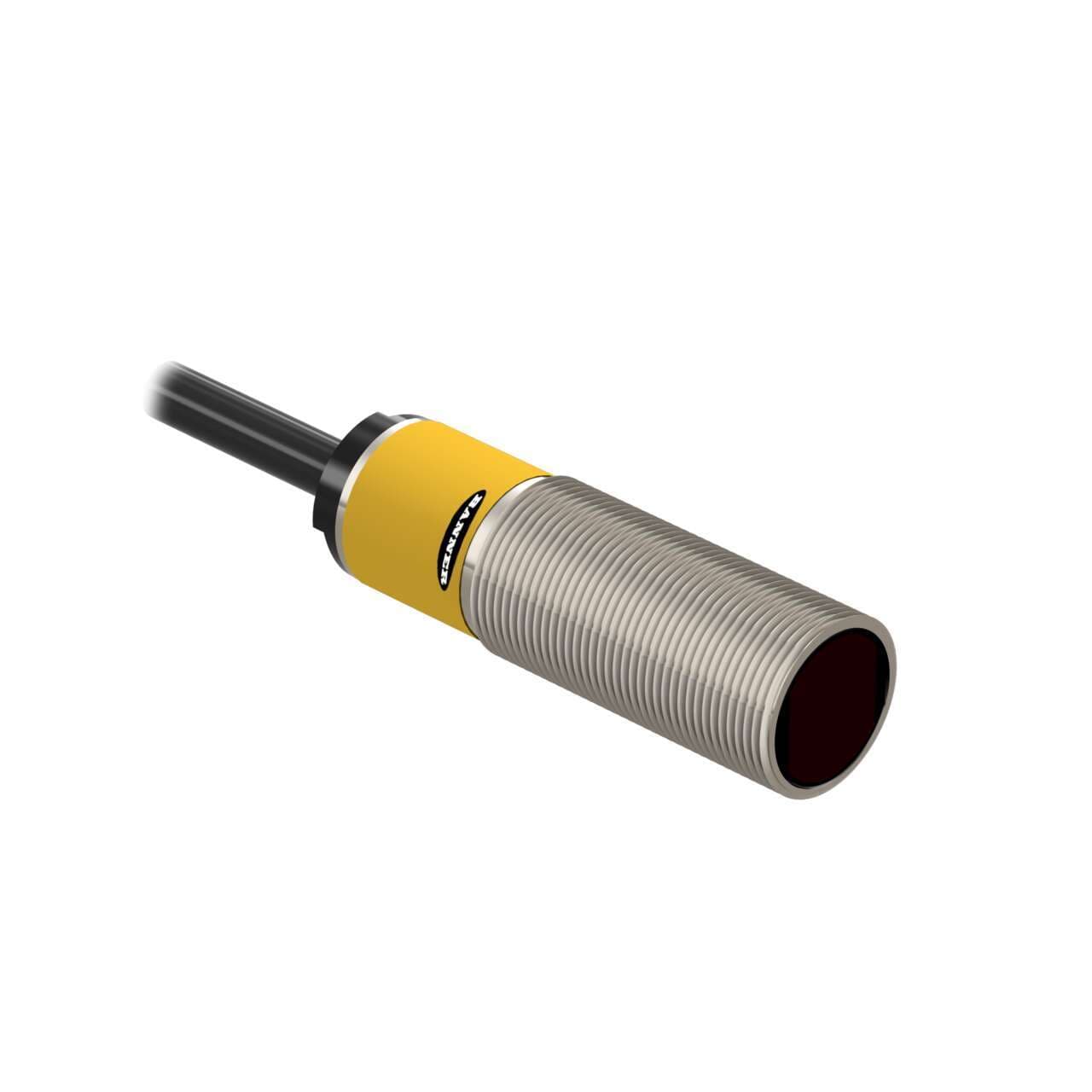

M18SN6RQ Banner Retroreflective Sensors
Part#:M18SN6RQ
Manufacturer:Banner
Alt. Part#:48349
Product Lifecycle:Active
Get a quick Quote!
EZ-BEAM M18 Series: Receiver; Range: 20 m; Input: 10-30 V dc; Output: Complementary NPN; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Retroreflective Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the M18SN6RQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight99.79024 g
- Country Of OriginMX
- Product series / family name EZ-BEAM series
- Shape Cylindrical threaded/barrel
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Primary brand Banner Engineering
- Operating mode Light-ON Dark-ON
- Compliant with standard(s) CE
- Sub-range name M18 series
- Thread size M18
- Material Stainless steel housing Polycarbonate lns.
- Degree of protection IP69K NEMA 6P
- Response time 3ms / 0.003 s
- Light Color Infrared (IR)
- Ambient air temperature for operation -40...+70 °C
- Digital outputs 1 x digital output (NPN transistor)
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Order code / Manufacturer SKU 48349
- Design through-beam system / opposed mode
- Functions Photo-electric sensor receiver green LED (power ON) yellow LED (output state)
- Max Sensing Distance (mm) 20000
- Operation Light/Dark Operate
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Washdown Rated Yes
- Sensing Mode (General) Opposed
- Min Op. Temp. (°C) -40
- IP Rating IP69
- Opposed Mode Emitter/Receiver Receiver
- Primary Housing Material Stainless Steel
- Output response time (ms) 3 ON/1.5 OFF
- NEMA Rating NEMA 6P
- Feature: Timing (Hold/Delay) No
- IO Link No
- Sensing Mode (Detailed) Receiver
- Special Feature: Water Detection No
- Adjustments N/A
- Feature: Health/ Marginal Signal Output Yes
- Outputs NPN
- Special Feature: Intrinsically Safe No
- Repeatability (µs) 375
- Feature: Hazardous Area No
- Housing Style Barrel
- Delay at Power-up (ms) 100
- Indicator LEDs
- DeviceNet No
- Power Supply/Supply Voltage 10-30 V dc
- Power DC
- Quick Disconnect Type M12 (Euro)
- Barrel Diameter (mm) 18
- Feature: Chemical Resistant Yes
- Sensing Beam Infrared LED
- Max Op. Temp. (°C) 70
- Number of Pins 4
- Feature: Encapsulated Yes
- Input/Output Discrete
- Connection Integral QD
- Special Feature: Remote Teach No
- Lens Material Polycarbonate
- Feature: Audible No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
M18SN6RQ Description
Banner Engineering M18SN6RQ is a photo-electric sensor designed for through-beam system applications, functioning as the receiver component within the M18 series. It utilizes infrared (IR) light and is encased in a durable stainless steel housing with a polycarbonate lens. This sensor is specifically shaped as an M18 cylindrical threaded/barrel and comes pre-equipped with a 4-pin Euro-style M12 connector for connectivity. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. The M18SN6RQ is designed to work within an ambient air temperature range of -40 to +70 degrees Celsius and offers a high degree of protection rated at IP69K and NEMA 6P. It features an operating mode that allows for both Light-ON and Dark-ON functionality, has a thread size of M18, and can sense objects up to 20 meters away. Additionally, it provides 1 x digital output (NPN transistor; complementary NO/NC) and boasts a quick response time of 3ms / 0.003 s.
