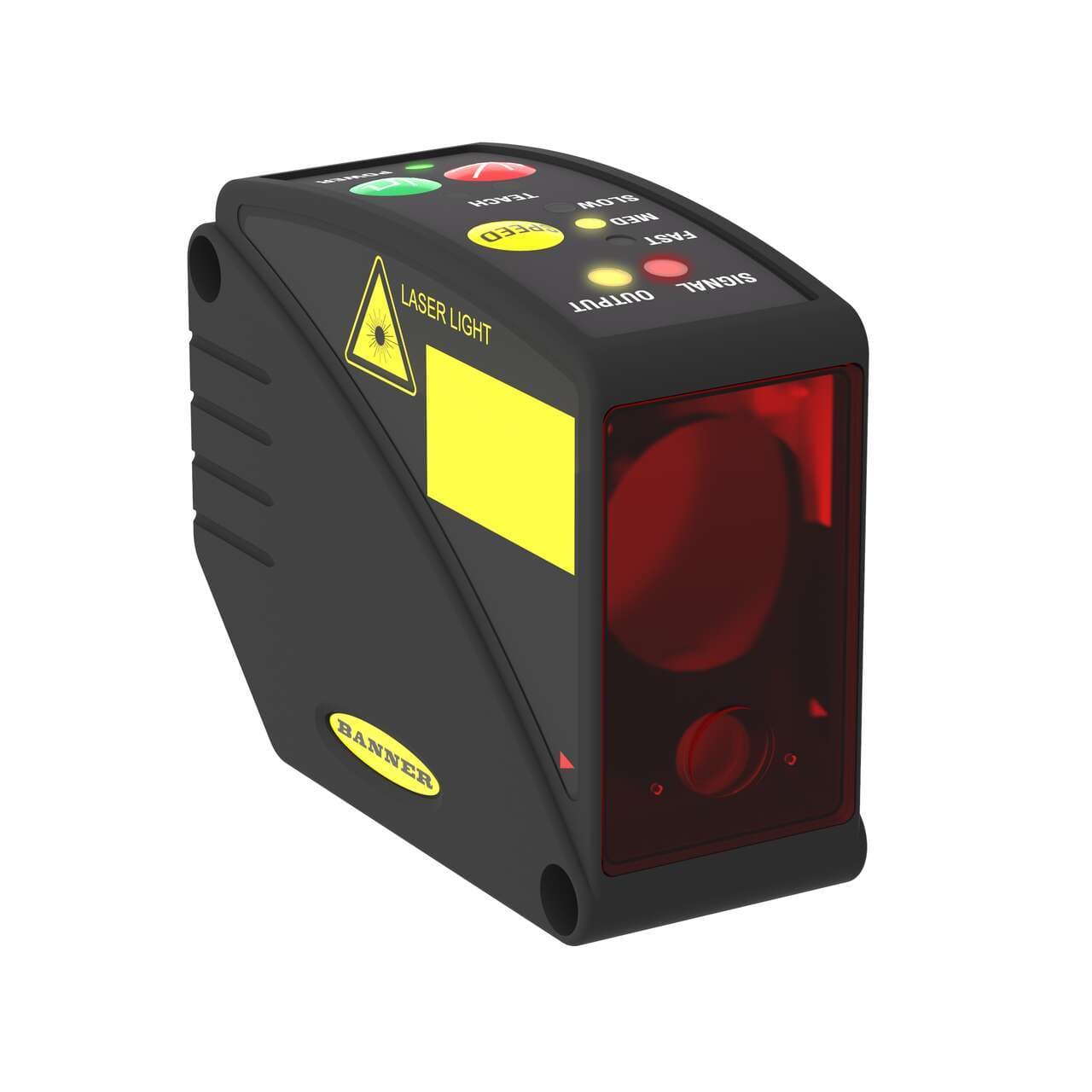

LT3PUQ Banner Optical Sensors
Part#:LT3PUQ
Manufacturer:Banner
Alt. Part#:65507
Product Lifecycle:Active
Get a quick Quote!
LT3 Series: Diffuse T.O.F. Laser Distance Measurement; Range: 0.3-5.0 m; Input: 12-24 V dc; Analog Output: 0-10 V; Discrete Output: PNP; 8-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the LT3PUQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight181.4368 g
- Country Of OriginUS
- Input/Output Analog & Discrete
- Minimum Sensing Distance (mm) 300
- Temperature Effect (mm/°C) 2 mm/°C
- Spot Size (@ Reference Distance) 6 mm
- Power/Current Consumption (exclusive of load) 108 mA max @ 24 V dc
- RS-485 No
- Sensing Beam Visible Red Laser
- Sensing Mode (Detailed) Time of Flight
- Delay at Power-up (ms) 1000
- Output Protection Protected against short circuit conditions
- Discrete Output Hysteresis (mm) 3
- Profibus No
- Max Measurement Range >1 m - <=20 m
- Connection Integral QD
- Sensing Beam Wavelength (nm) 658
- Max Operating Temperature (°C) 50
- Color Sensitivity (Typical) 90% white to 18% gray: < 10 mm; 90% white to 6% black: < 20 mm
- Typical Laser Lifetime (Hours) 75000
- RS-422 No
- Device Type Sensor
- Analog Resolution/Discrete Repeatability 1 to 1.25 at slow response speed
- Output Saturation Voltage PNP Outputs < 1.2 V at 10 mA; < 1.6 V at 100 mA
- NEMA Rating NEMA 6
- Minimum Window Size (mm) 20
- 1-wire Serial Interface No
- Power DC
- Indicator LED(s)
- Discrete (Switched) Outputs 1 PNP
- Max Op. Relative Humidity Non-Condensing (%) 90 at 50°C
- Laser Control Yes
- Power Supply 12-24 V dc
- IP Rating IP67
- Housing Style Rectangular
- Warm-up Time (minutes) 30
- Feature: Remote Teach Yes
- Common Ethernet Protocol No
- Max Sensing Distance (mm) 5000
- Number of Pins 8
- PC Configurable No
- Remote Teach and Laser Control Input Impedence 18 kΩ min. (65 kΩ min at 5 V dc)
- Max Off-state Leakage Current (µA) 5
- PROFINET No
- Primary Housing Material ABS
- Laser Classification Class 2
- Analog Voltage Output Rating 2.5 kΩ min. load impedance
- Analog Linearity (mm) +/- 30 mm from 0.3 to 1.5 m; +/- 20 mm from 1.5 to 5 m
- IO Link No
- Analog Output Configuration 0-10 V dc
- Adjustments Push Button; Remote Teach
- Window Material Acrylic
- Max Ambient Light (Lux) 5000
- RS-232 No
- Sensing Mode (General) Proximity
- Quick Disconnect Type M12 (Euro)
- Max Discrete (Switched) Output (mA) 100
- Minimum Response Time (ms) 1
- Feature: Timing (Hold/Delay) No
- Wireless No
- SSI No
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- Feature: Chemical Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
LT3PUQ Description
Banner Engineering LT3PUQ is a Class 2 laser photo-electric distance sensor/transmitter belonging to the LT3 series. This sensor features a diffuse time-of-flight system with TEACH mode, emitting visible red light from an ABS housing with an acrylic window. It is designed in a rectangular shape and comes pre-equipped with an 8-pin Euro-style M12 connector for connectivity. The LT3PUQ offers protection against short-circuits and operates within a supply voltage range of 12Vdc-24Vdc. With a wavelength of 658 nm, it can function in ambient air temperatures up to +50 °C. This sensor is rated with a degree of protection of IP67 NEMA 6, ensuring its durability in various environments. It provides 1 x analog output (0-10Vdc) and 1 x digital output (PNP transistor), capable of sensing distances from 30cm up to 5m.
