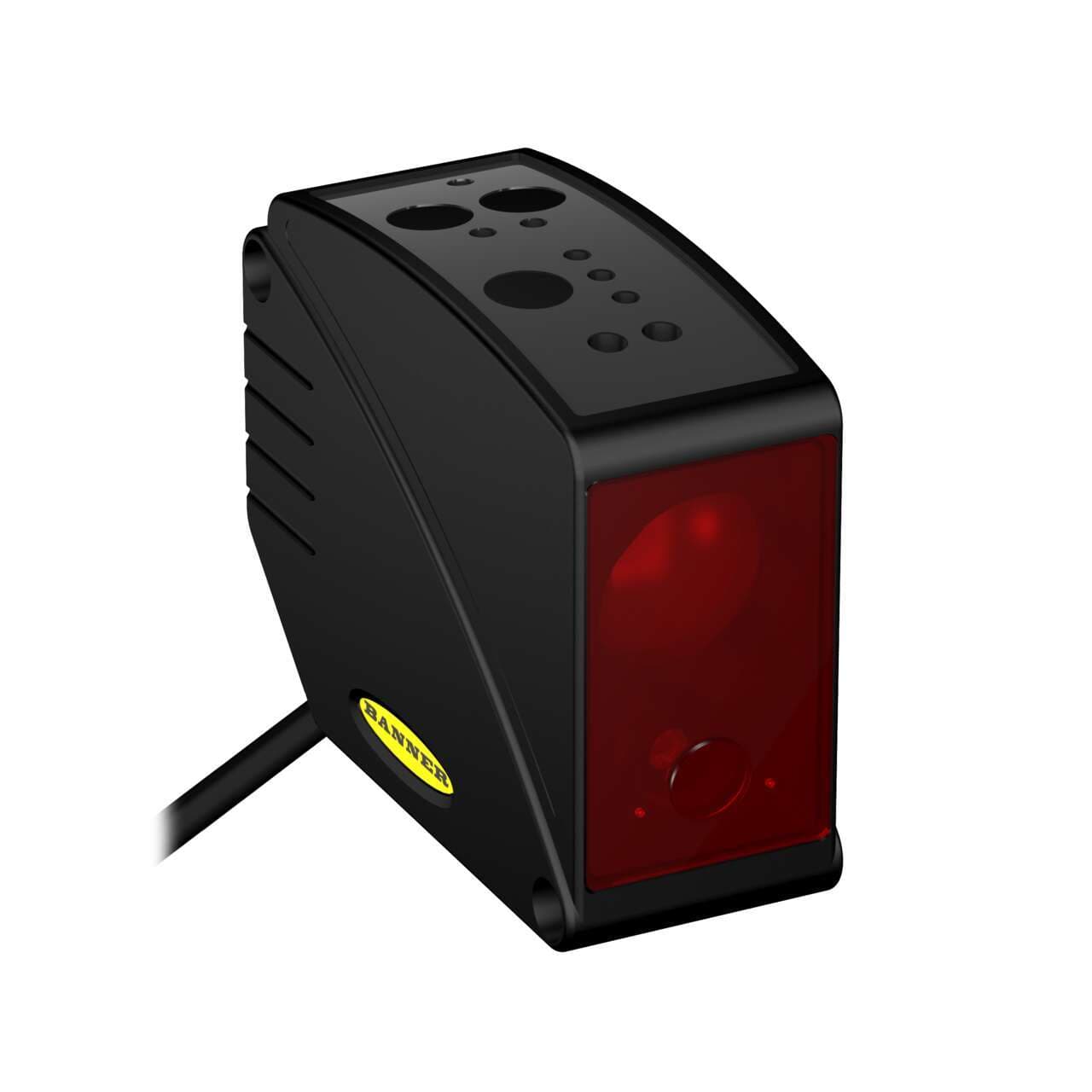

LT3PILV Banner Optical Sensors
Part#:LT3PILV
Manufacturer:Banner
Alt. Part#:67279
Product Lifecycle:Active
Get a quick Quote!
LT3 Series: Laser Retroreflective Time-of-Flight Sensor; Range: 500 mm to 50 m; 12-24 V dc; Outputs: Discrete: PNP Analog 4-20 mA; 2 m (6.5 ft) Cable
About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the LT3PILV Banner price in the box on the right side or send a quick quote.
Product Details
- Weight417.30464 g
- Country Of OriginUS
- Supply voltage (DC) 12Vdc-24Vdc
- Wavelength 658 nm
- Light Color Visible red
- Sub-range name LT3
- Design retro-reflective time-of-flight system
- Shape Rectangular
- Ambient air temperature for operation +50 °C
- Digital outputs 1 x digital output (PNP transistor)
- Primary brand Banner Engineering
- Functions Class 1 Laser photo-electric distance sensor/transmitter green LED (power ON) yellow LED (output state) TEACH mode
- Degree of protection IP67 NEMA 6
- Main function Sensor (Distance)
- Product series / family name L-GAGE series
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Analog outputs 1 x analog output (4-20mA)
- Sensing distance 50cm...50m
- Material ABS housing Acrylic window
- Protection functions Short-circuit
- Order code / Manufacturer SKU 67279
- PC Configurable No
- Analog Resolution/Discrete Repeatability 5 to 6 at slow response speed
- Adjustments Push Button; Remote Teach
- Max Operating Temperature (°C) 50
- Minimum Window Size (mm) 40
- Feature: Chemical Resistant No
- Max Measurement Range >20 m
- Primary Housing Material ABS
- Sensing Beam Wavelength (nm) 658
- Max Op. Relative Humidity Non-Condensing (%) 90 at 50°C
- Laser Control Yes
- Feature: Timing (Hold/Delay) No
- Sensing Mode (Detailed) Time of Flight
- Quick Disconnect Type No QD
- Output Saturation Voltage PNP Outputs < 1.2 V at 10 mA; < 1.6 V at 100 mA
- IP Rating IP67
- Max Ambient Light (Lux) 5000
- RS-232 No
- Sensing Beam Visible Red Laser
- Laser Classification Class 1
- Power Supply 12-24 V dc
- NEMA Rating NEMA 6
- Remote Teach and Laser Control Input Impedence 18 kΩ min. (65 kΩ min at 5 V dc)
- Typical Laser Lifetime (Hours) 75000
- 1-wire Serial Interface No
- Housing Style Rectangular
- Indicator LED(s)
- Max Discrete (Switched) Output (mA) 100
- Minimum Response Time (ms) 1
- IO Link No
- SSI No
- Cable Length (m) 2
- Max Sensing Distance (mm) 50000
- Number of Pins 8
- Warm-up Time (minutes) 30
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- Common Ethernet Protocol No
- Power DC
- Connection Flying Leads
- Delay at Power-up (ms) 1000
- Window Material Acrylic
- Power/Current Consumption (exclusive of load) 108 mA max @ 24 V dc
- RS-422 No
- Sensing Mode (General) Retroreflective
- Analog Output Configuration 4-20 mA
- Analog Current Output Rating 1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω
- Spot Size (@ Reference Distance) 6 mm
- Max Off-state Leakage Current (µA) 5
- RS-485 No
- Input/Output Analog & Discrete
- Temperature Effect (mm/°C) 3 mm/°C
- Discrete (Switched) Outputs 1 PNP
- Discrete Output Hysteresis (mm) 6
- Feature: Remote Teach Yes
- Profibus No
- Device Type Sensor
- Minimum Sensing Distance (mm) 500
- Output Protection Protected against short circuit conditions
- Analog Linearity (mm) +/- 60 mm from 0.5 to 50 m
- PROFINET No
- Wireless No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
LT3PILV Description
Banner Engineering LT3PILV is a Class 1 laser photo-electric distance sensor/transmitter belonging to the LT3 series. It features a retro-reflective time-of-flight system with TEACH mode and emits visible red light from a 658 nm wavelength source. The sensor is housed in ABS with an acrylic window, shaped rectangularly, and comes pre-wired with a 6.5ft / 2m cable that terminates in bare end flying leads. It operates on a supply voltage of 12Vdc-24Vdc and can function within an ambient air temperature up to +50°C. The LT3PILV offers protection against short-circuits and boasts a degree of protection rated at IP67 NEMA 6. It is equipped with one analog output (4-20mA) and one digital output (PNP transistor), capable of sensing distances from 50cm to 50m.
