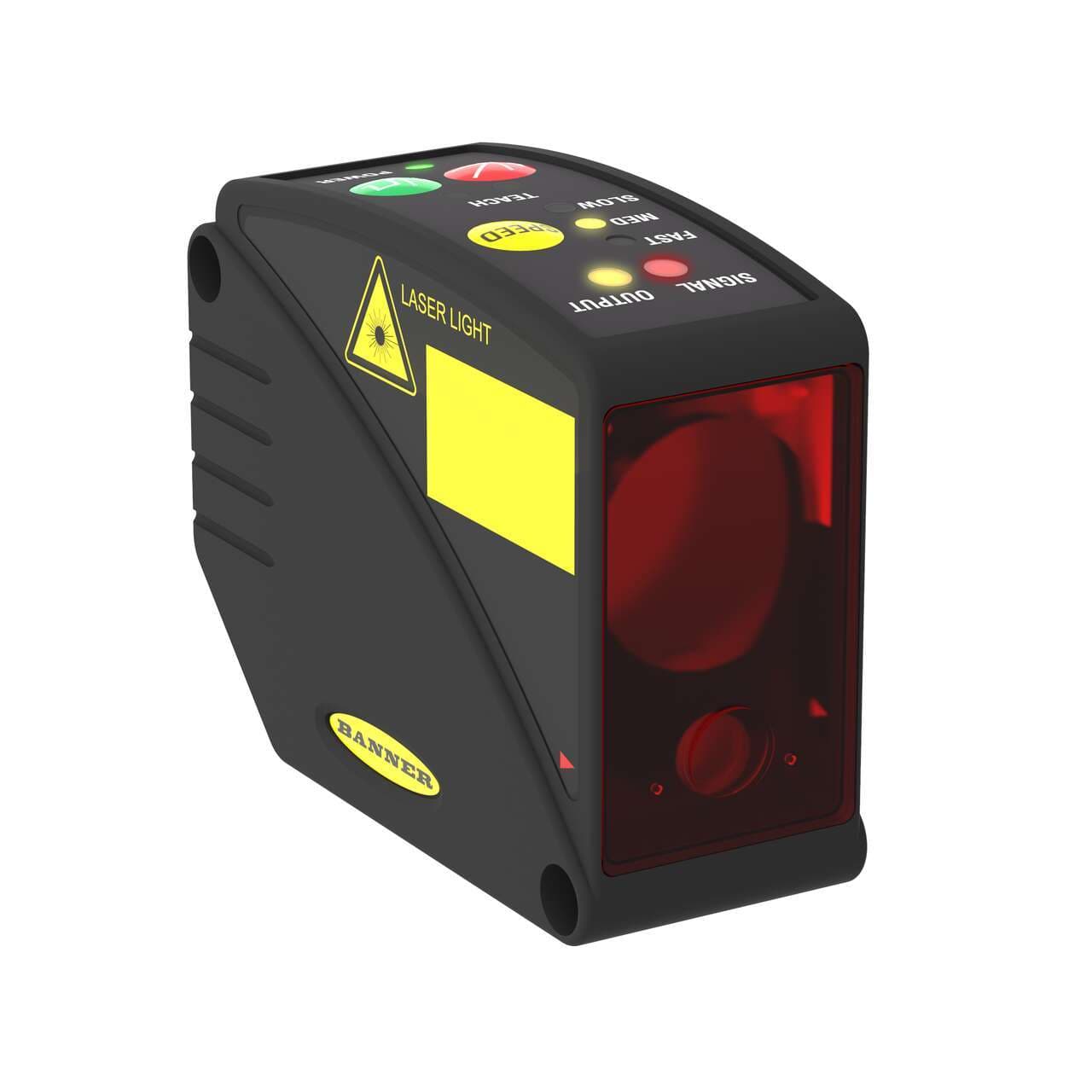

LT3PIQ Banner Optical Sensors
Part#:LT3PIQ
Manufacturer:Banner
Alt. Part#:65513
Product Lifecycle:Active
Get a quick Quote!
LT3 Series: Diffuse T.O.F. Laser Distance Measurement; Range: 0.3-5.0 m; Input: 12-24 V dc; Analog Output: 4-20 mA; Discrete Output: PNP; 8-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the LT3PIQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight190.50864 g
- Country Of OriginUS
- Sensing distance 30cm...5m
- Digital outputs 1 x digital output (PNP transistor)
- Product series / family name L-GAGE series
- Design diffuse time-of-flight system
- Wavelength 658 nm
- Ambient air temperature for operation +50 °C
- Sub-range name LT3
- Connection type Pre-equipped with 8-pin Euro-style M12 connector
- Material ABS housing Acrylic window
- Primary brand Banner Engineering
- Functions Class 2 Laser photo-electric distance sensor/transmitter green LED (power ON) yellow LED (output state) TEACH mode
- Light Color Visible red
- Protection functions Short-circuit
- Main function Sensor (Distance)
- Supply voltage (DC) 12Vdc-24Vdc
- Shape Rectangular
- Analog outputs 1 x analog output (4-20mA)
- Order code / Manufacturer SKU 65513
- Degree of protection IP67 NEMA 6
- Primary Housing Material ABS
- Analog Resolution/Discrete Repeatability 1 to 1.25 at slow response speed
- Sensing Beam Wavelength (nm) 658
- Minimum Window Size (mm) 20
- Max Measurement Range >1 m - <=20 m
- Input/Output Analog & Discrete
- Delay at Power-up (ms) 1000
- Output Protection Protected against short circuit conditions
- Warm-up Time (minutes) 30
- Sensing Beam Visible Red Laser
- Analog Output Configuration 4-20 mA
- Laser Classification Class 2
- Max Discrete (Switched) Output (mA) 100
- Spot Size (@ Reference Distance) 6 mm
- Sensing Mode (Detailed) Time of Flight
- Quick Disconnect Type M12 (Euro)
- Temperature Effect (mm/°C) 2 mm/°C
- Power DC
- Minimum Sensing Distance (mm) 300
- Output Saturation Voltage PNP Outputs < 1.2 V at 10 mA; < 1.6 V at 100 mA
- RS-232 No
- PC Configurable No
- Indicator LED(s)
- Number of Pins 8
- NEMA Rating NEMA 6
- Max Ambient Light (Lux) 5000
- Housing Style Rectangular
- Max Sensing Distance (mm) 5000
- Discrete (Switched) Outputs 1 PNP
- Minimum Response Time (ms) 1
- Max Off-state Leakage Current (µA) 5
- Device Type Sensor
- Connection Integral QD
- Adjustments Push Button; Remote Teach
- Max Operating Temperature (°C) 50
- Laser Control Yes
- Sensing Mode (General) Proximity
- Power Supply 12-24 V dc
- Analog Current Output Rating 1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω
- Window Material Acrylic
- 1-wire Serial Interface No
- PROFINET No
- Color Sensitivity (Typical) 90% white to 18% gray: < 10 mm; 90% white to 6% black: < 20 mm
- IO Link No
- Profibus No
- Typical Laser Lifetime (Hours) 75000
- RS-485 No
- Discrete Output Hysteresis (mm) 3
- Feature: Remote Teach Yes
- RS-422 No
- IP Rating IP67
- Remote Teach and Laser Control Input Impedence 18 kΩ min. (65 kΩ min at 5 V dc)
- Feature: Chemical Resistant No
- Power/Current Consumption (exclusive of load) 108 mA max @ 24 V dc
- Common Ethernet Protocol No
- SSI No
- Feature: Timing (Hold/Delay) No
- Wireless No
- Max Op. Relative Humidity Non-Condensing (%) 90 at 50°C
- Analog Linearity (mm) +/- 30 mm from 0.3 to 1.5 m; +/- 20 mm from 1.5 to 5 m
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
LT3PIQ Description
Banner Engineering LT3PIQ is a Class 2 laser photo-electric distance sensor/transmitter belonging to the LT3 series. It features a diffuse time-of-flight system with TEACH mode for precise distance measurement. The sensor emits visible red light at a wavelength of 658 nm and is designed with a rectangular shape, constructed from ABS housing with an acrylic window. It comes pre-equipped with an 8-pin Euro-style M12 connector for connectivity. The LT3PIQ operates on a supply voltage of 12Vdc-24Vdc and offers protection functions against short-circuits. It is capable of sensing distances ranging from 30cm to 5m and provides both analog (1 x analog output 4-20mA) and digital outputs (1 x digital output PNP transistor). The device operates efficiently within an ambient air temperature of up to +50°C and is protected against ingress by its IP67 and NEMA 6 rated enclosure.
