LT3PILV W/30 Banner Electronic Components
Part#:LT3PILV W/30
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

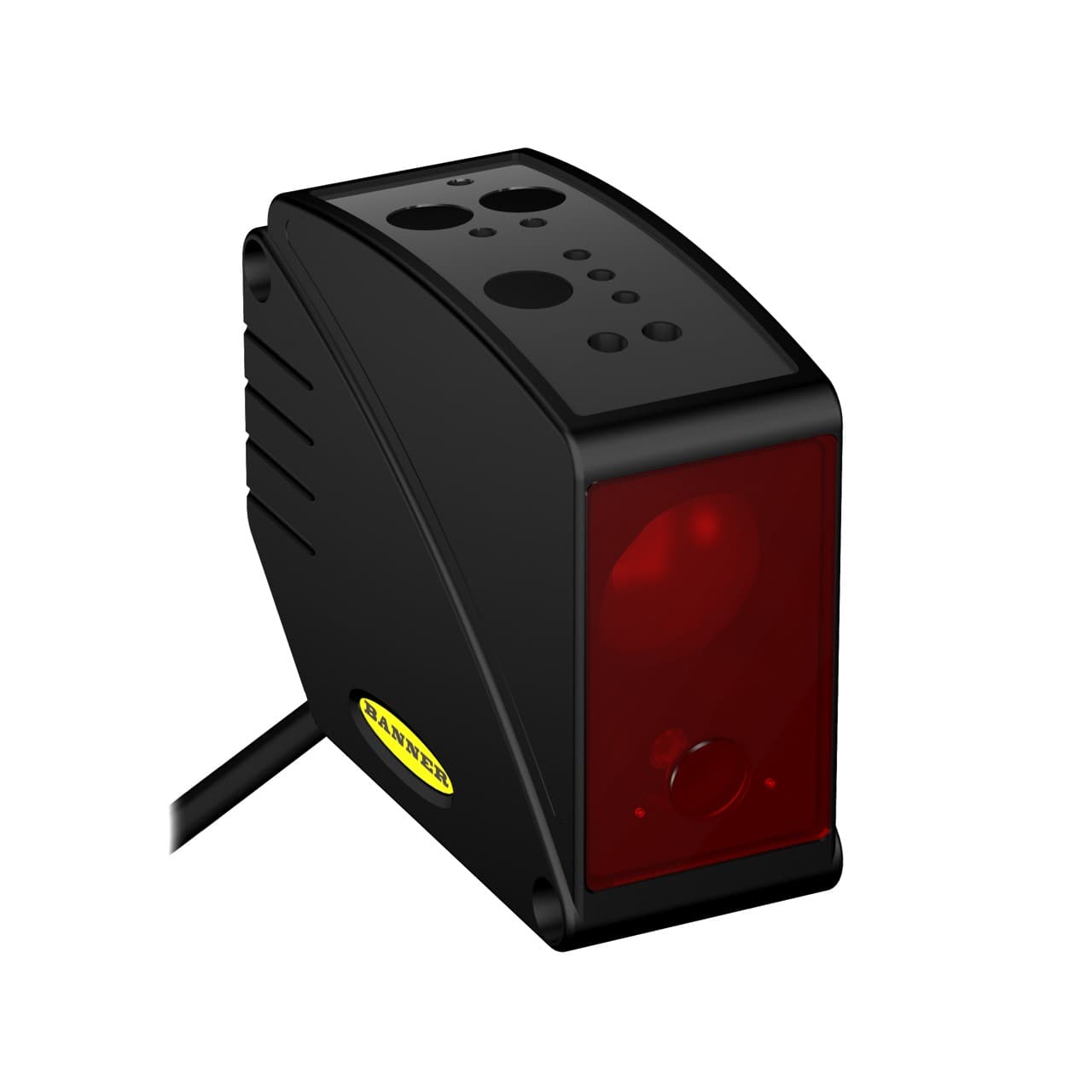

LT3 Series: Laser Retroreflective Time-of-Flight S, Range: 500 mm to 50 m; 12-24 V dc, Outputs: Discrete: PNP Analog 4-20 mA, 9 m (30 ft) Cable
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the LT3PILV W/30 Banner price in the box on the right side or send a quick quote.
Product Details
- Housing Style Rectangular
- Quick Disconnect Type No QD
- Temperature Effect (mm/°C) 3 mm/°C
- Warm-up Time (minutes) 30
- Power/Current Consumption (exclusive of load) 108 mA max @ 24 V dc
- RS-422 No
- Analog Output Configuration 4-20 mA
- Adjustments Push Button; Remote Teach
- Window Material Acrylic
- Max Off-state Leakage Current (µA) 5
- RS-232 No
- Cable Length (m) 9
- Primary Housing Material ABS
- Power Supply 12-24 V dc
- Output Protection Protected against short circuit conditions
- Analog Linearity (mm) +/- 60 mm from 0.5 to 50 m
- Feature: Remote Teach Yes
- Wireless No
- Sensing Mode (Detailed) Time of Flight
- Input/Output Analog & Discrete
- Sensing Beam Wavelength (nm) 658
- NEMA Rating NEMA 6
- Discrete Output Hysteresis (mm) 6
- PROFINET No
- Power DC
- Analog Resolution/Discrete Repeatability 5 to 6 at slow response speed
- Analog Current Output Rating 1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω
- Minimum Response Time (ms) 1
- Typical Laser Lifetime (Hours) 75000
- PC Configurable No
- Max Sensing Distance (mm) 50000
- Max Discrete (Switched) Output (mA) 100
- Spot Size (@ Reference Distance) 6 mm
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- RS-485 No
- Max Measurement Range >20 m
- Connection Flying Leads
- Output Saturation Voltage PNP Outputs < 1.2 V at 10 mA; < 1.6 V at 100 mA
- Max Operating Temperature (°C) 50
- Laser Control Yes
- Common Ethernet Protocol No
- Sensing Beam Visible Red Laser
- Laser Classification Class 1
- Delay at Power-up (ms) 1000
- Discrete (Switched) Outputs 1 PNP
- Minimum Window Size (mm) 40
- Feature: Chemical Resistant No
- Sensing Mode (General) Retroreflective
- Indicator LED(s)
- Number of Pins 8
- Max Op. Relative Humidity Non-Condensing (%) 90 at 50°C
- Max Ambient Light (Lux) 5000
- IO Link No
- Device Type Sensor
- Minimum Sensing Distance (mm) 500
- IP Rating IP67
- Remote Teach and Laser Control Input Impedence 18 kΩ min. (65 kΩ min at 5 V dc)
- Feature: Timing (Hold/Delay) No
- Profibus No
- SSI No
- 1-wire Serial Interface No
