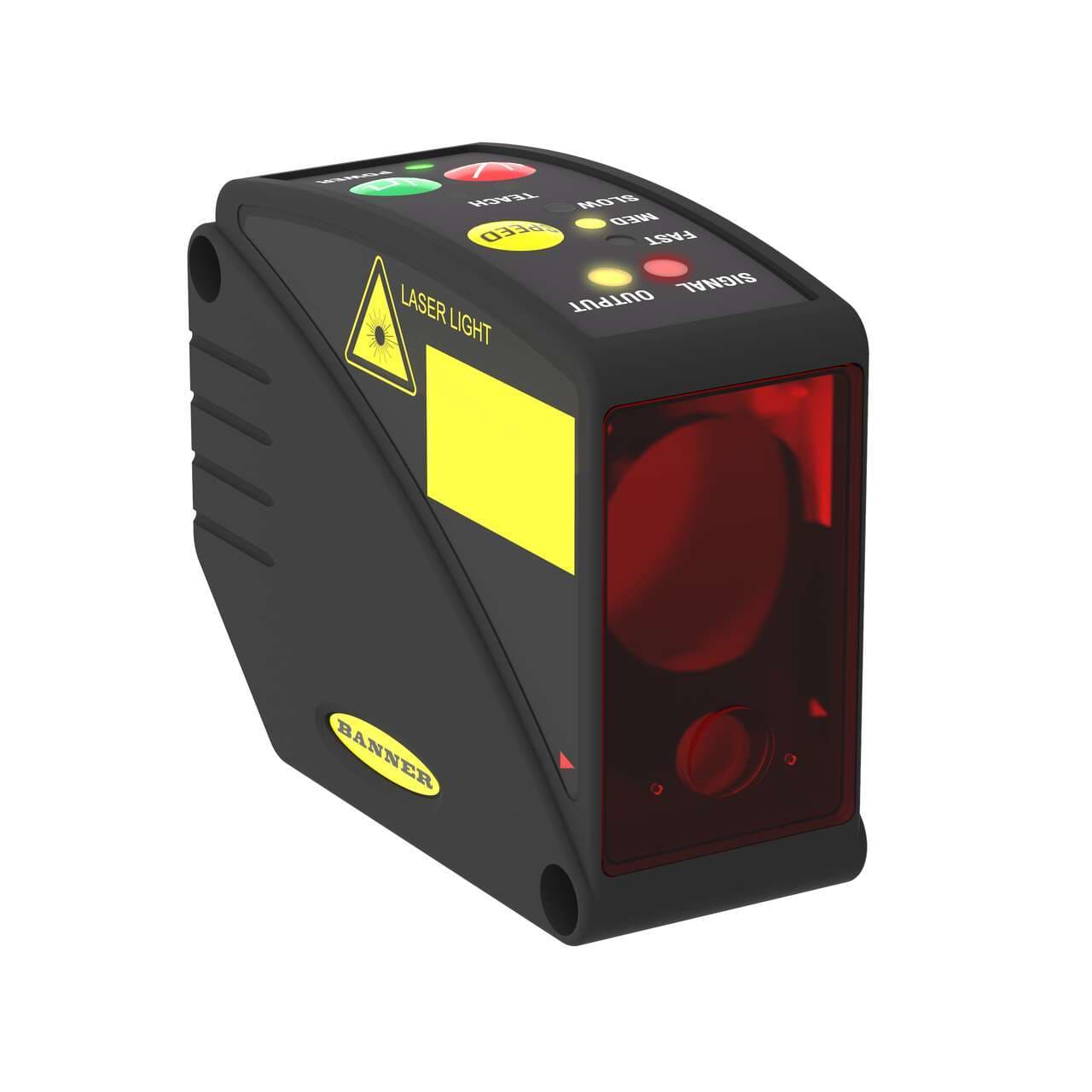

LT3PILVQ Banner Optical Sensors
Part#:LT3PILVQ
Manufacturer:Banner
Alt. Part#:67280
Product Lifecycle:Active
Get a quick Quote!
LT3 Series: Laser Retroreflective Time-of-Flight Sensor; Range: 500 mm to 50 m; 12-24 V dc; Outputs: Discrete: PNP Analog 4-20 mA; 8-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the LT3PILVQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight308.44256 g
- Country Of OriginUS
- Light Color Visible red
- Analog outputs 1 x analog output (4-20mA)
- Order code / Manufacturer SKU 67280
- Sub-range name LT3
- Supply voltage (DC) 12Vdc-24Vdc
- Shape Rectangular
- Connection type Pre-equipped with 8-pin Euro-style M12 connector
- Material ABS housing Acrylic window
- Protection functions Short-circuit
- Design retro-reflective time-of-flight system
- Wavelength 658 nm
- Degree of protection IP67 NEMA 6
- Ambient air temperature for operation +50 °C
- Main function Sensor (Distance)
- Functions Class 1 Laser photo-electric distance sensor/transmitter green LED (power ON) yellow LED (output state) TEACH mode
- Digital outputs 1 x digital output (PNP transistor)
- Primary brand Banner Engineering
- Product series / family name L-GAGE series
- Sensing distance 50cm...50m
- PC Configurable No
- Max Sensing Distance (mm) 50000
- Analog Current Output Rating 1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω
- Minimum Response Time (ms) 1
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- Primary Housing Material ABS
- Minimum Sensing Distance (mm) 500
- Max Discrete (Switched) Output (mA) 100
- Spot Size (@ Reference Distance) 6 mm
- Power/Current Consumption (exclusive of load) 108 mA max @ 24 V dc
- RS-485 No
- Power DC
- Analog Output Configuration 4-20 mA
- Sensing Beam Wavelength (nm) 658
- IP Rating IP67
- Feature: Timing (Hold/Delay) No
- 1-wire Serial Interface No
- Max Measurement Range >20 m
- Window Material Acrylic
- Max Off-state Leakage Current (µA) 5
- PROFINET No
- Sensing Mode (Detailed) Time of Flight
- Adjustments Push Button; Remote Teach
- NEMA Rating NEMA 6
- Remote Teach and Laser Control Input Impedence 18 kΩ min. (65 kΩ min at 5 V dc)
- Feature: Chemical Resistant No
- Profibus No
- Housing Style Rectangular
- Quick Disconnect Type M12 (Euro)
- Number of Pins 8
- Warm-up Time (minutes) 30
- RS-232 No
- Sensing Beam Visible Red Laser
- Laser Classification Class 1
- Output Saturation Voltage PNP Outputs < 1.2 V at 10 mA; < 1.6 V at 100 mA
- Max Op. Relative Humidity Non-Condensing (%) 90 at 50°C
- Laser Control Yes
- Common Ethernet Protocol No
- Typical Laser Lifetime (Hours) 75000
- SSI No
- Output Protection Protected against short circuit conditions
- Minimum Window Size (mm) 40
- Feature: Remote Teach Yes
- Wireless No
- Temperature Effect (mm/°C) 3 mm/°C
- IO Link No
- Connection Integral QD
- Power Supply 12-24 V dc
- Sensing Mode (General) Retroreflective
- Indicator LED(s)
- Discrete (Switched) Outputs 1 PNP
- Device Type Sensor
- Delay at Power-up (ms) 1000
- Analog Resolution/Discrete Repeatability 5 to 6 at slow response speed
- Analog Linearity (mm) +/- 60 mm from 0.5 to 50 m
- Max Operating Temperature (°C) 50
- Max Ambient Light (Lux) 5000
- Input/Output Analog & Discrete
- Discrete Output Hysteresis (mm) 6
- RS-422 No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
LT3PILVQ Description
Banner Engineering LT3PILVQ is a Class 1 laser photo-electric distance sensor/transmitter belonging to the LT3 series. This sensor features a retro-reflective time-of-flight system with TEACH mode, emitting visible red light from a 658 nm wavelength source. It is designed with a rectangular shape, constructed from ABS housing and an acrylic window. For connectivity, it comes pre-equipped with an 8-pin Euro-style M12 connector. The LT3PILVQ operates on a supply voltage of 12Vdc-24Vdc and offers protection against short-circuits. It is capable of operating within an ambient air temperature of up to +50°C and is rated with a degree of protection of IP67 NEMA 6. This sensor provides 1 x analog output (4-20mA) and 1 x digital output (PNP transistor), with a sensing distance range of 50cm to 50m.
