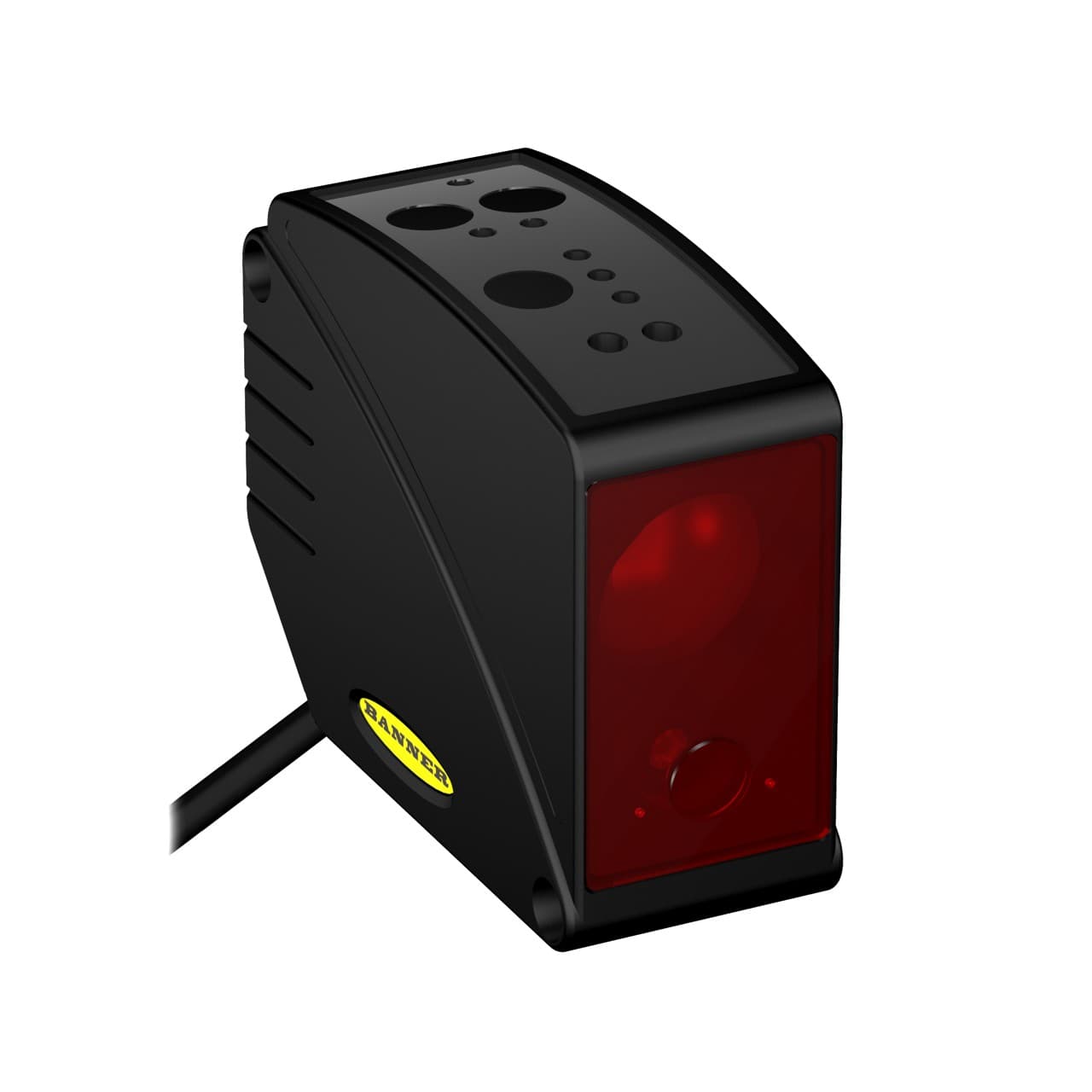

LT3PULV W/30 Banner Electronic Components
Part#:LT3PULV W/30
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!
LT3 Series: Laser Retroreflective Time-of-Flight S, Range: 500 mm to 50 m; 12-24 V dc, Outputs: Discrete: PNP Analog 0-10V, 9 m (30 ft) Cable
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the LT3PULV W/30 Banner price in the box on the right side or send a quick quote.
Product Details
- Device Type Sensor
- Minimum Sensing Distance (mm) 500
- Max Sensing Distance (mm) 50000
- IP Rating IP67
- Feature: Timing (Hold/Delay) No
- Power DC
- Indicator LED(s)
- Delay at Power-up (ms) 1000
- Max Discrete (Switched) Output (mA) 100
- Spot Size (@ Reference Distance) 6 mm
- Typical Laser Lifetime (Hours) 75000
- Sensing Beam Visible Red Laser
- Power Supply 12-24 V dc
- Input/Output Analog & Discrete
- Output Saturation Voltage PNP Outputs < 1.2 V at 10 mA; < 1.6 V at 100 mA
- Max Op. Relative Humidity Non-Condensing (%) 90 at 50°C
- Discrete Output Hysteresis (mm) 6
- PC Configurable No
- Quick Disconnect Type No QD
- Analog Voltage Output Rating 2.5 kΩ min. load impedance
- Window Material Acrylic
- Laser Control Yes
- Common Ethernet Protocol No
- Sensing Mode (Detailed) Time of Flight
- Analog Output Configuration 0-10 V dc
- Sensing Beam Wavelength (nm) 658
- Discrete (Switched) Outputs 1 PNP
- Analog Linearity (mm) +/- 60 mm from 0.5 to 50 m
- IO Link No
- RS-422 No
- Sensing Mode (General) Retroreflective
- Primary Housing Material ABS
- Temperature Effect (mm/°C) 3 mm/°C
- Warm-up Time (minutes) 30
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- Wireless No
- Output Protection Protected against short circuit conditions
- Max Ambient Light (Lux) 5000
- Feature: Remote Teach Yes
- Profibus No
- Max Measurement Range >20 m
- Laser Classification Class 1
- Number of Pins 8
- Minimum Response Time (ms) 1
- Power/Current Consumption (exclusive of load) 108 mA max @ 24 V dc
- SSI No
- Housing Style Rectangular
- Analog Resolution/Discrete Repeatability 5 to 6 at slow response speed
- Adjustments Push Button; Remote Teach
- NEMA Rating NEMA 6
- Minimum Window Size (mm) 40
- RS-232 No
- Cable Length (m) 9
- Connection Flying Leads
- Max Operating Temperature (°C) 50
- Max Off-state Leakage Current (µA) 5
- Feature: Chemical Resistant No
- Remote Teach and Laser Control Input Impedence 18 kΩ min. (65 kΩ min at 5 V dc)
- PROFINET No
- RS-485 No
- 1-wire Serial Interface No
