K50LBRYPQ Banner Pick-to-Light Sensors
Part#:K50LBRYPQ
Manufacturer:Banner
Alt. Part#:81504
Product Lifecycle:Active
Get a quick Quote!
K50 Series EZ-LIGHT: 3-Color General Purpose Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Blue Red Yellow; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50LBRYPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight158.7572 g
- Country Of OriginMX
- Number of Colors / Segments 3
- Product Size (mm) 50
- Max Current Color (mA) 40
- Min Op. Temperature (°C) -40
- IO Link No
- Housing Style Base Mount - Dome Window
- Color Technology Standard LED
- Animation Option 1 Solid On
- Power Source DC
- Number of Input Pins/Conductors 4
- Feature: Washdown Rated Yes
- Wireless No
- Indication Yes
- Color Option 3 Yellow
- Primary Window Material Polycarbonate Diffused
- Power DC
- Primary Housing Material Polycarbonate
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 69.0
- Input Type PNP
- Color Option 2 Red
- Max Op. Temperature (°C) 50
- Feature: Audible No
- Feature: Quick Disconnect Yes
- Mounting Thread M30 x 1.5
- Pro-Editor Compatible (Discrete) No
- Feature: Hazardous Area No
- Quick Disconnect Type M12 (Euro)
- Max Input Response Time (ms) 1
- Feature: Chemical Resistant No
- Environmental Rating IP67; IP69
- Multi-Color Device Single Color On
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Connection Integral QD
- Supply Voltage 18-30 V dc
- Modbus RTU No
- Color Option 1 Blue
- Primary Housing Color Black
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K50LBRYPQ Description

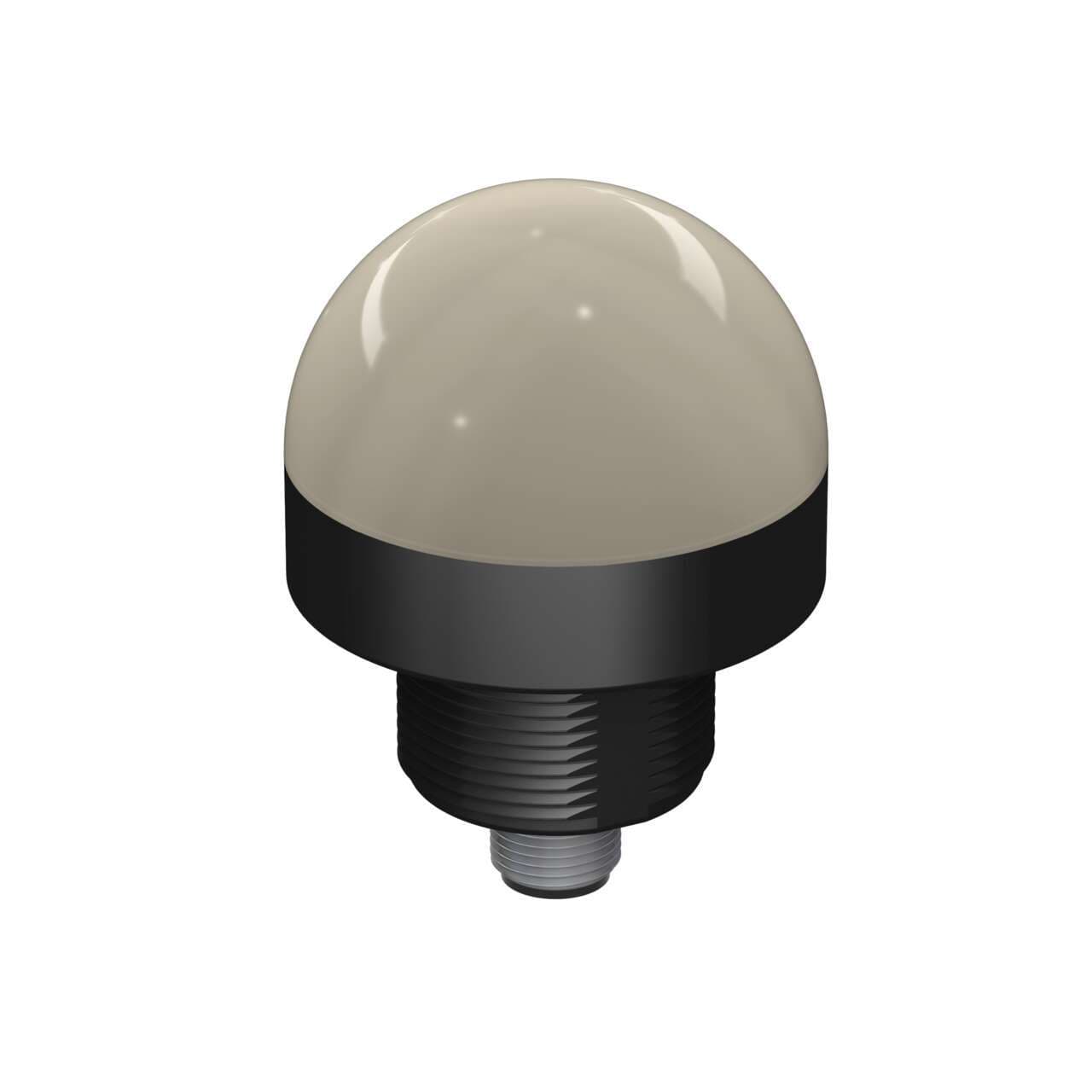

Banner Engineering K50LBRYPQ is a pilot light from the EZ-LIGHT series designed with a 3-color B/R/Y (Blue/Red/Yellow) color pattern LED illumination housed in a black casing. This part features a dome window shape with both the window and base made from polycarbonate (PC), ensuring durability. It is equipped with a 4-pin M12 Euro-style QD connector for connectivity. The K50LBRYPQ operates on a supply voltage range of 18Vdc to 30Vdc, with a nominal voltage of 24Vdc, and can be mounted on a surface, base, or pole with a flush 30mm hole using an M30 thread. The dome diameter measures 50mm (approximately 2 inches). This part is designed to operate within an ambient air temperature range of -40°C to +50°C and offers a high degree of protection with ratings of IP67 and IP69K, indicating its resistance to dust, water, and high-pressure water jets. It consumes 40mA of current and includes 3 digital inputs (18-30Vdc; NPN) for color control.
Related documents K50LBRYPQ Specs
