K50L2RGBKQP Banner Pick-to-Light Sensors
Part#:K50L2RGBKQP
Manufacturer:Banner
Alt. Part#:802159
Product Lifecycle:Active
Get a quick Quote!
K50 Pro with IO-Link Series: RGB Indicator; Voltage: 18 - 30 V dc; Housing: Polycarbonate; IP66 IP67 IP69K; Colors: Multicolor; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50L2RGBKQP Banner price in the box on the right side or send a quick quote.
Product Details
- Weight145.14944 g
- Country Of OriginMX
- Supply Voltage 18-30 V dc
- Power Source DC
- Product Size (mm) 50
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 58.0
- Storage Temp (°C) -40 to 70
- Power DC
- Number of Input Pins/Conductors 4
- Max Op. Temperature (°C) 50
- Modbus RTU No
- Cable Length (m) 2
- Max Input Response Time (ms) 30
- Feature: Washdown Rated Yes
- IO Link Yes
- Mounting Thread M30 x 1.5
- Color Technology RGB IO-Link
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Min Op. Temperature (°C) -40
- Pro-Editor Compatible (Discrete) No
- Housing Style Base Mount - Dome Window
- Connection Pigtail QD
- Environmental Rating IP66; IP67; IP69
- Feature: Audible No
- Number of Colors / Segments Programmable
- Max Current Color (mA) 150
- Indication Yes
- Animation Option 1 IO-Link Controlled
- Input Type Communication Protocol
- Primary Window Material Polycarbonate Diffused
- Color Input Control Communication Protocol
- Quick Disconnect Type M12 (Euro)
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Hazardous Area No
- Primary Housing Material Polycarbonate
- Dimming Option Programmable
- Color Option 1 RGB
- Primary Housing Color Black
- Multi-Color Device Simultaneous Colors On
- Feature: Chemical Resistant No
- Wireless No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K50L2RGBKQP Description

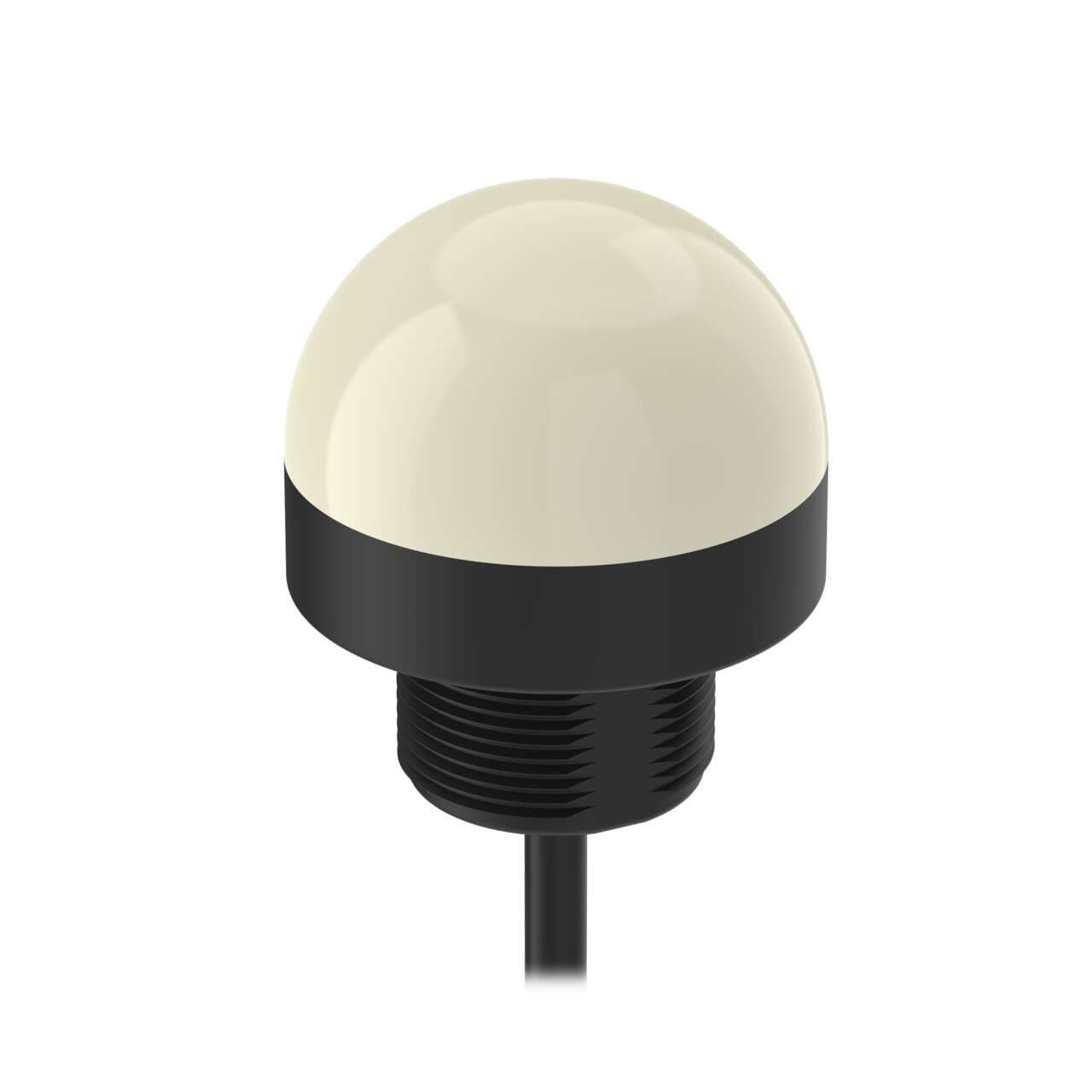

Banner Engineering K50L2RGBKQP is a sealed audible LED pilot light indicator designed for versatile signaling applications. It features a continuous loud sound and IO-Link compatibility for enhanced communication. The unit offers 14-color RGB multicolor LED illumination housed in a black casing with a dome-shaped window. The window and base are constructed from polycarbonate (PC), ensuring durability. It comes pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The K50L2RGBKQP operates on a supply voltage of 18Vdc to 30Vdc, with 24Vdc nominal, and can be mounted on a surface, base, or pole with a flush 30mm hole using an M30 thread. The dome has a diameter of 50mm (2 inches), and the unit is designed to operate in ambient air temperatures ranging from -20°C to +50°C. It boasts a high degree of protection with ratings of IP66, IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13, ensuring its suitability for harsh environments. The current consumption is 150mA.
Related documents K50L2RGBKQP Specs
