K50L2RGBKAL1QP Banner Electronic Components
Part#:K50L2RGBKAL1QP
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

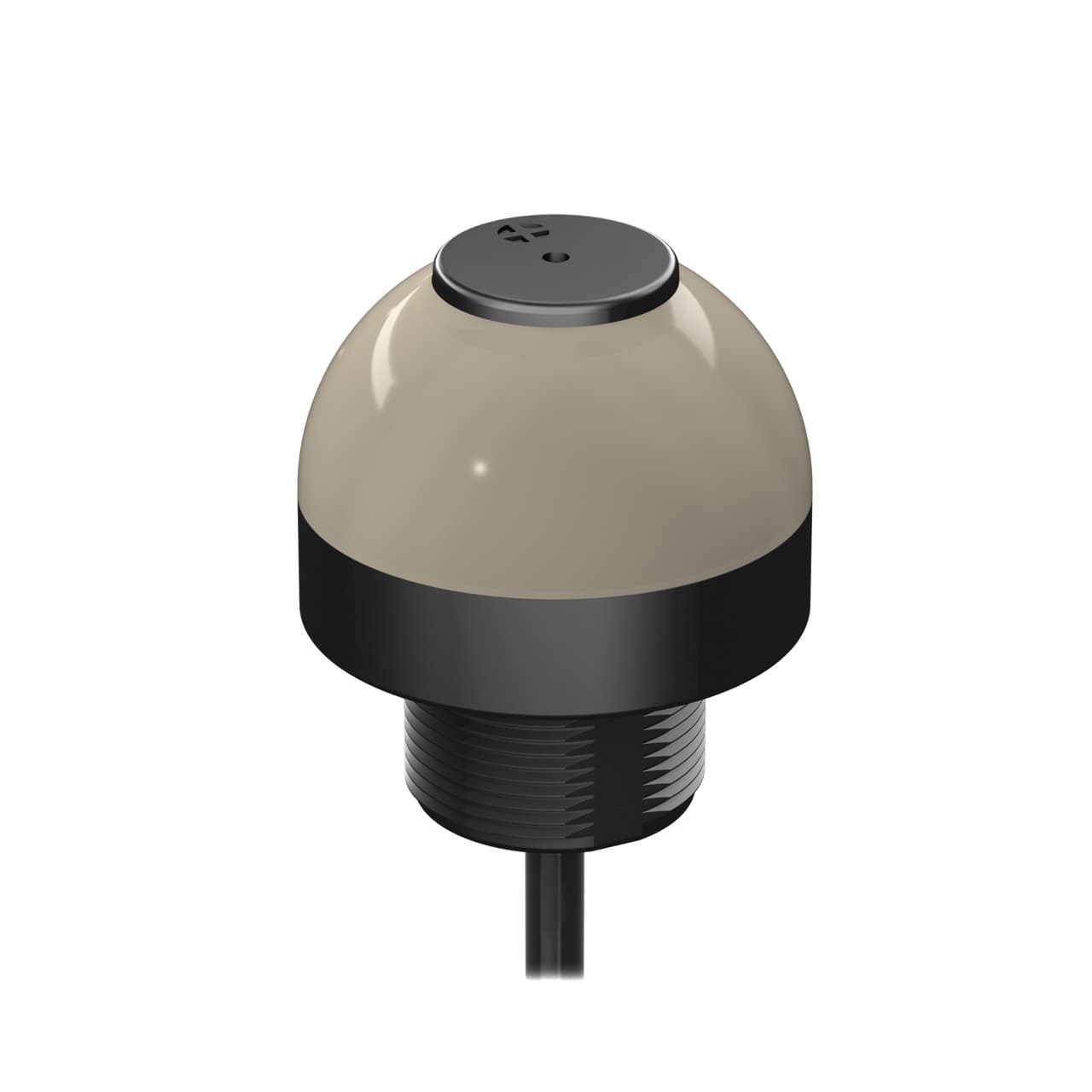

Banner Engineering K50L2RGBKAL1QP is a pilot light designed with a loud audible LED pilot light indicator. It features continuous loud sound and is IO-Link compatible, offering 14-color RGB multicolor LED illumination. The part comes in a black housing with a dome window shape. Both the diffused window and the base are made of polycarbonate (PC). It is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The supply voltage required ranges from 18Vdc to 30Vdc, with a nominal 24Vdc. This part can be mounted on the surface, base, or pole flush with a 30mm hole and an M30 thread. The dome diameter measures 50mm or approximately 2 inches. It is designed to operate in ambient air temperatures ranging from -20°C to +50°C and has a degree of protection of IP50. The current consumption of the device is 150mA.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50L2RGBKAL1QP Banner price in the box on the right side or send a quick quote.
Product Details
- Mounting Thread M30 x 1.5
- Animation Option 1 IO-Link Controlled
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Storage Temp (°C) -40 to 70
- IO Link Yes
- Primary Housing Material Polycarbonate
- Color Option 1 RGB
- Input Type Communication Protocol
- Max Current - Audible Alarm (mA) 220
- Feature: Audible Yes
- Wireless No
- Color Input Control Communication Protocol
- Quick Disconnect Type M12 (Euro)
- Power Source DC
- Audible Alarm Type Multitone
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 57.0
- Feature: Quick Disconnect Yes
- Product Size (mm) 50
- Max Current Color (mA) 150
- Min Audible Intensity (db at 1m) 95
- Environmental Rating IP50
- Multi-Color Device Simultaneous Colors On
- Power DC
- Color Technology RGB IO-Link
- Supply Voltage 18-30 V dc
- Min Op. Temperature (°C) -20
- Max Op. Temperature (°C) 50
- Modbus RTU No
- Indication Yes
- Audible Operating Frequency (kHz) 2.7
- Number of Input Pins/Conductors 4
- Primary Window Material Polycarbonate Diffused
- Feature: Hazardous Area No
- Number of Colors / Segments Programmable
- Dimming Option Programmable
- Primary Housing Color Black
- Secondary Material Polycarbonate
- Housing Style Base Mount - Dome Window
- Connection Pigtail QD
- Max Input Response Time (ms) 30
- Max Audible Intensity (db at 1m) 95
- Feature: Chemical Resistant No
- Pro-Editor Compatible (Discrete) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents K50L2RGBKAL1QP Specs
