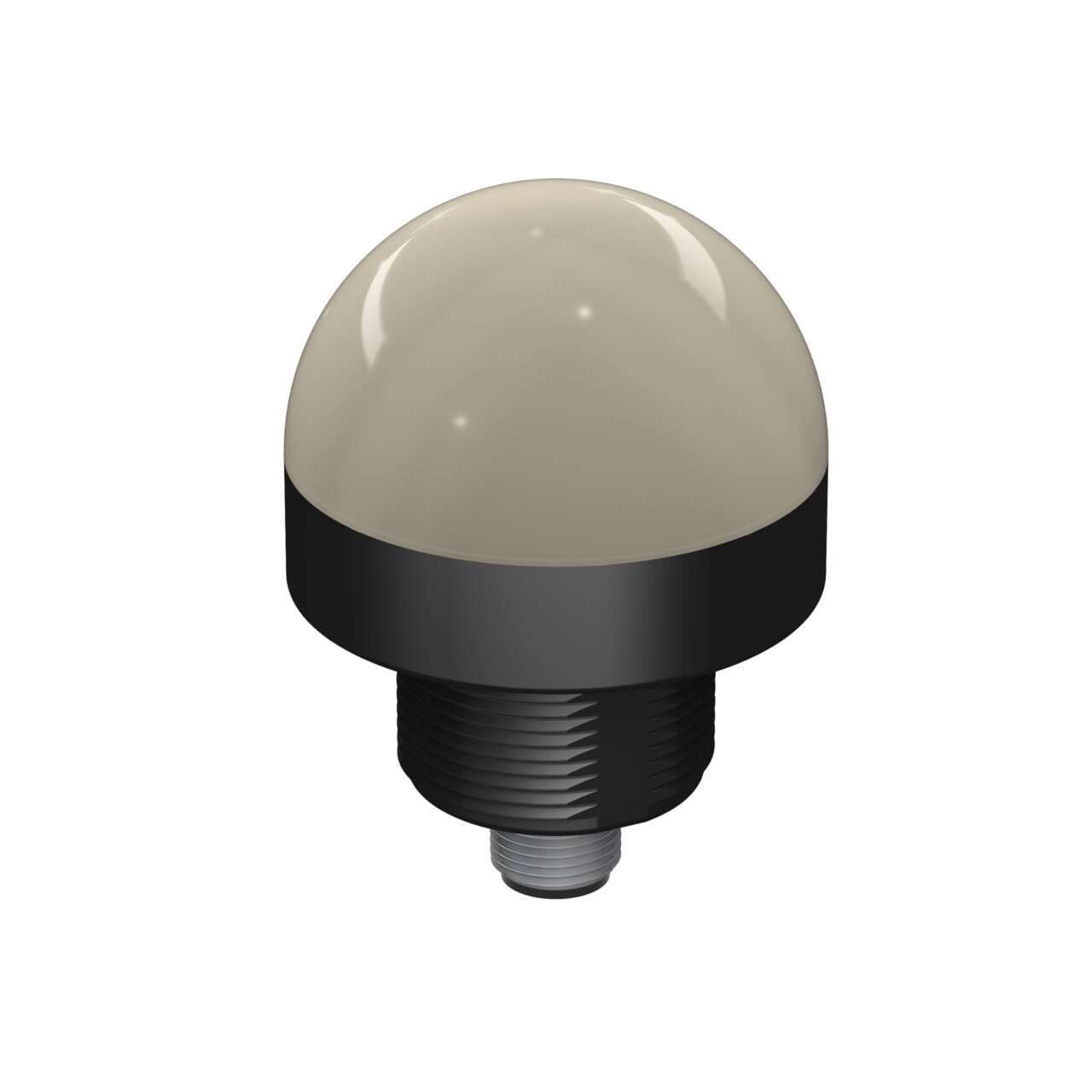

K50LGRYPQ Banner Pick-to-Light Sensors
Part#:K50LGRYPQ
Manufacturer:Banner
Alt. Part#:75671
Product Lifecycle:Active
In-stock parts: 46
Jun 20, 2025
K50 Series EZ-LIGHT: 3-Color General Purpose Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Green Red Yellow; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50LGRYPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight136.0776 g
- Country Of OriginMX
- Housing Style Base Mount - Dome Window
- Product Size (mm) 50
- Number of Input Pins/Conductors 4
- Max Input Response Time (ms) 1
- Modbus RTU No
- Power DC
- Animation Option 1 Solid On
- Max Op. Temperature (°C) 50
- Multi-Color Device Single Color On
- Primary Housing Material Polycarbonate
- Color Option 3 Yellow
- Supply Voltage 18-30 V dc
- Feature: Washdown Rated Yes
- Number of Colors / Segments 3
- Quick Disconnect Type M12 (Euro)
- Min Op. Temperature (°C) -40
- Feature: Chemical Resistant No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 1 Green
- Environmental Rating IP67; IP69
- Primary Window Material Polycarbonate Diffused
- Mounting Thread M30 x 1.5
- Connection Integral QD
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 69.0
- IO Link No
- Power Source DC
- Color Technology Standard LED
- Input Type PNP
- Feature: Hazardous Area No
- Feature: Audible No
- Indication Yes
- Color Option 2 Red
- Max Current Color (mA) 40
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Wireless No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K50LGRYPQ Description
Banner Engineering K50LGRYPQ is an illuminated push-button from the EZ-LIGHT series designed with a 3-color G/R/Y color pattern LED illumination in a black housing. It features a dome window shape with both the window and base made of polycarbonate (PC). This part is pre-equipped with an 8-pin M12 Euro-style QD connector for connectivity. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal, and can be mounted on the surface, base, or pole flush with a 30mm hole and M30 thread. The dome diameter is 50mm / 2 inches. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP65, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. The operating mode is a momentary NO (Normally Open) touch output, with a current consumption of 65mA. It includes 3 x digital inputs (12-30Vdc; PNP) for color control, 1 x digital output (NO relay contact type), and 1 NO auxiliary contact, with no NC (Normally Closed) auxiliary contacts.
Related documents K50LGRYPQ Specs
