K50LDBRWPQ Banner Pick-to-Light Sensors
Part#:K50LDBRWPQ
Manufacturer:Banner
Alt. Part#:85898
Product Lifecycle:Active
In-stock parts: 30
Jun 20, 2025
K50 Series EZ-LIGHT Daylight Visible 3-Color Indicator; Voltage: 15-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Blue Red White; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50LDBRWPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight195.951744 g
- Country Of OriginMX
- Number of Colors / Segments 3
- Max Current Color (mA) 40
- Feature: Hazardous Area No
- Modbus RTU No
- Mounting Thread M30 x 1.5
- Color Technology Standard LED
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 49.5
- Feature: Quick Disconnect Yes
- Power Source DC
- Animation Option 1 Solid On
- Max Input Response Time (ms) 1
- Indication Intensity High Brightness & Daylight Visible
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Connection Integral QD
- Quick Disconnect Type M12 (Euro)
- Indication Yes
- Color Option 1 Blue
- Environmental Rating IP67
- IO Link No
- Product Size (mm) 50
- Color Option 3 White
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Primary Housing Material Polycarbonate
- Cable Length (m) 2
- Input Type PNP
- Min Op. Temperature (°C) -40
- Housing Style Base Mount - No Window
- Power DC
- Color Option 2 Red
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Max Op. Temperature (°C) 50
- Multi-Color Device Single Color On
- Number of Input Pins/Conductors 4
- Feature: Audible No
- Feature: Chemical Resistant No
- Wireless No
- Supply Voltage 12-30 V dc
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K50LDBRWPQ Description

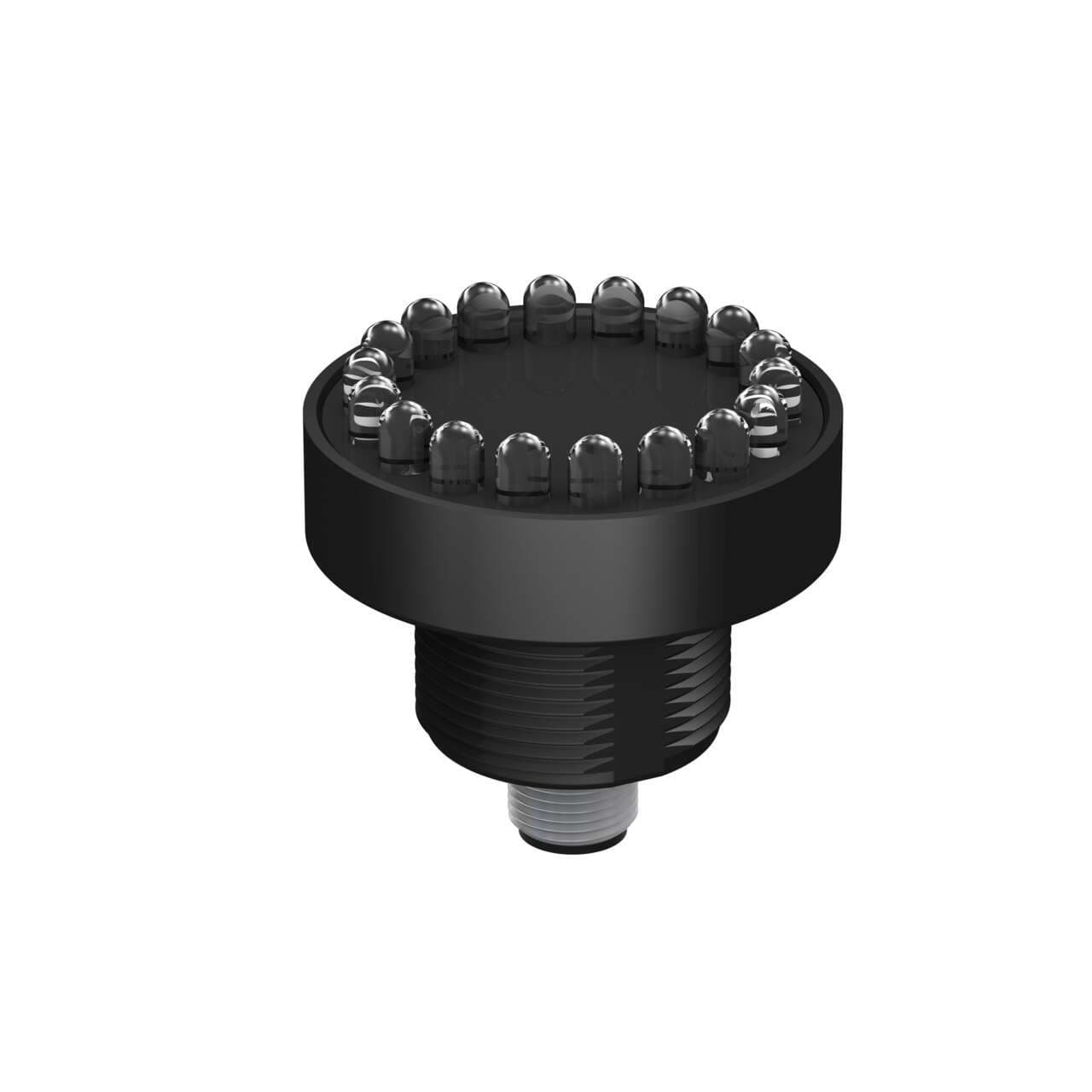

Banner Engineering K50LDBRWPQ is a pilot light from the EZ-LIGHT series designed to serve as an LED pilot light indicator. It features daylight-visible 3-color B/R/W (Blue/Red/White) color pattern LED illumination housed in a black, round shape without a window. The construction includes a polycarbonate (PC) diffused window and a polycarbonate (PC) base for durability. This part is pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads for connectivity. It operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc being nominal. The K50LDBRWPQ offers versatile mounting options including surface, base, or pole flush with a 30mm hole and an M30 thread. The body diameter is 50mm / 2 inches, and it can operate in ambient air temperatures ranging from -40°C to +50°C. It is designed with an IP67 degree of protection against ingress, consumes 40mA of current, and includes 3 x digital inputs (12-30Vdc; PNP) for color control.
Related documents K50LDBRWPQ Specs
