K50LGRY6PQPMA Banner Pick-to-Light Sensors
Part#:K50LGRY6PQPMA
Manufacturer:Banner
Alt. Part#:75543
Product Lifecycle:Active
In-stock parts: 6
Jun 20, 2025
K50 Series EZ-LIGHT: 3-Color I/O Block Compatible Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; Environmental Rating: IP67; IP69K; Input: PNP; Colors: Green Red Yellow; 150 mm (6 in) 5-pin M12 PUR Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50LGRY6PQPMA Banner price in the box on the right side or send a quick quote.
Product Details
- Weight163.29312 g
- Country Of OriginMX
- Cable Length (m) 0.15
- Color Option 1 Green
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Max Op. Temperature (°C) 50
- Wireless No
- Power DC
- Color Technology Standard LED
- Color Option 2 Red
- Primary Window Material Polycarbonate Diffused
- Modbus RTU No
- Animation Option 1 Solid On
- Color 3 - Wavelength/Color Temp/Coordinates 590 nm
- Primary Housing Color Black
- IO Link No
- Product Size (mm) 50
- Color Option 3 Yellow
- Feature: Hazardous Area No
- Environmental Rating IP67; IP69
- Mounting Thread M30 x 1.5
- Color 1 - Wavelength/Color Temp/Coordinates 528 nm
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 58.0
- Feature: Audible No
- Power Source DC
- Quick Disconnect Type M12 (Euro)
- Max Current Color (mA) 50
- Feature: Washdown Rated Yes
- Housing Style Base Mount - Dome Window
- Number of Colors / Segments 3
- Input Type PNP
- I/O Block Compatible Yes
- Feature: Chemical Resistant No
- Indication Yes
- Lumens Color 1 59.0
- Supply Voltage 18-30 V dc
- Multi-Color Device Single Color On
- Primary Housing Material Polycarbonate
- Connection Pigtail PUR QD
- Lumens Color 3 56.0
- Max Input Response Time (ms) 250
- Pro-Editor Compatible (Discrete) No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 2 17.0
- Number of Input Pins/Conductors 5
- Min Op. Temperature (°C) -20
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K50LGRY6PQPMA Description

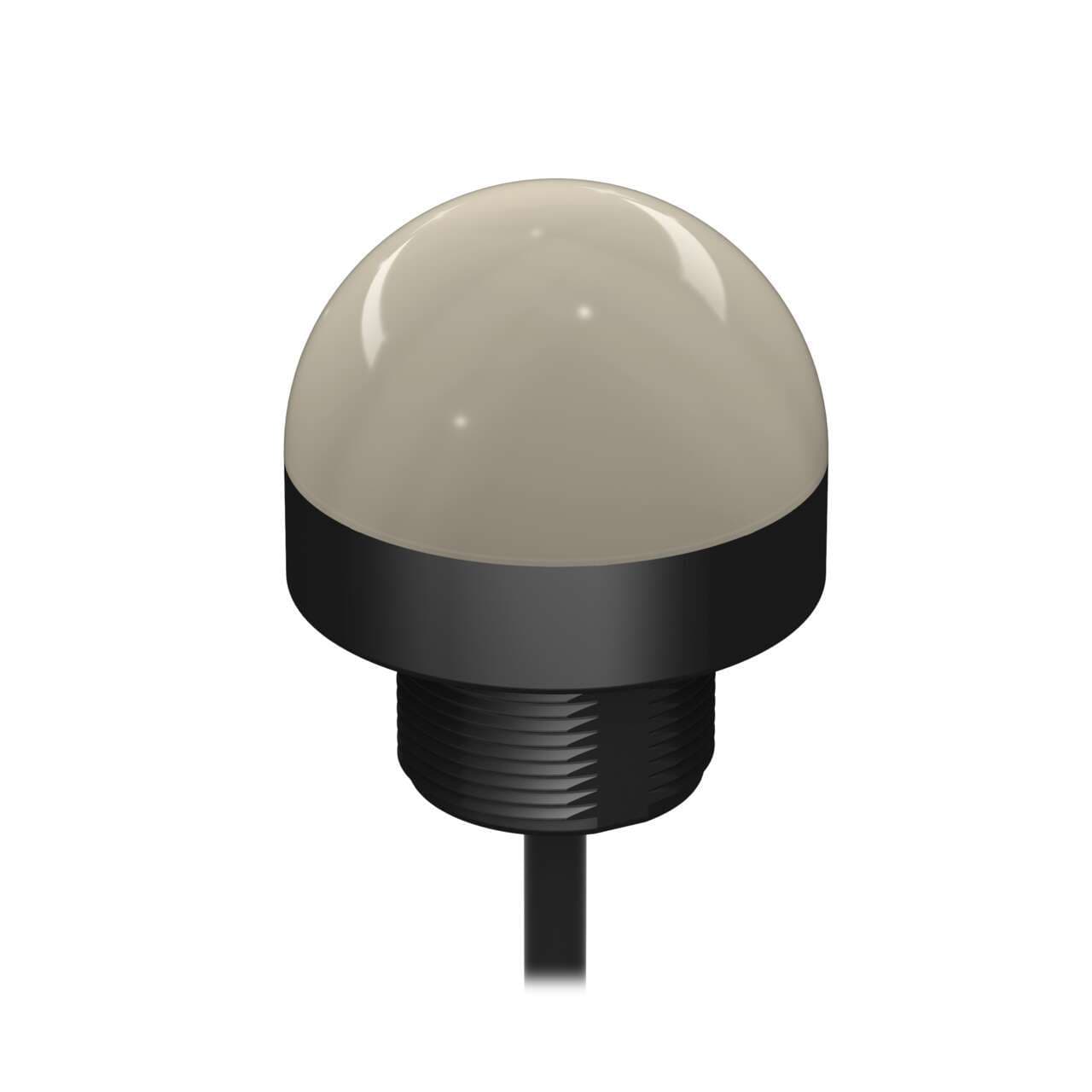

Banner Engineering K50LGRY6PQPMA is a pilot light from the EZ-LIGHT series designed with a 3-color G/R/Y color pattern LED illumination. This part features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. It is pre-wired with a 9m / 30ft cable that terminates with bare end flying leads for connectivity. The supply voltage required for operation is within the range of 85Vac-130Vac, accommodating nominal voltages of 100Vac, 110Vac, and 120Vac. It offers versatile mounting options including surface, base, or pole flush with a 30mm hole and an M30 thread. The dome diameter measures 50mm / 2 inches. This pilot light is designed to operate within an ambient air temperature range of -40°C to +50°C and boasts a degree of protection rated at IP67 and IP69K. It has a current consumption of 15mA and includes 3 x digital inputs (85-130Vac) for color control.
Related documents K50LGRY6PQPMA Specs
This item can ship within 24h!
1-year warranty
$140.40
Stock:
6
Select Qty:
$140.40
$140.40 each
