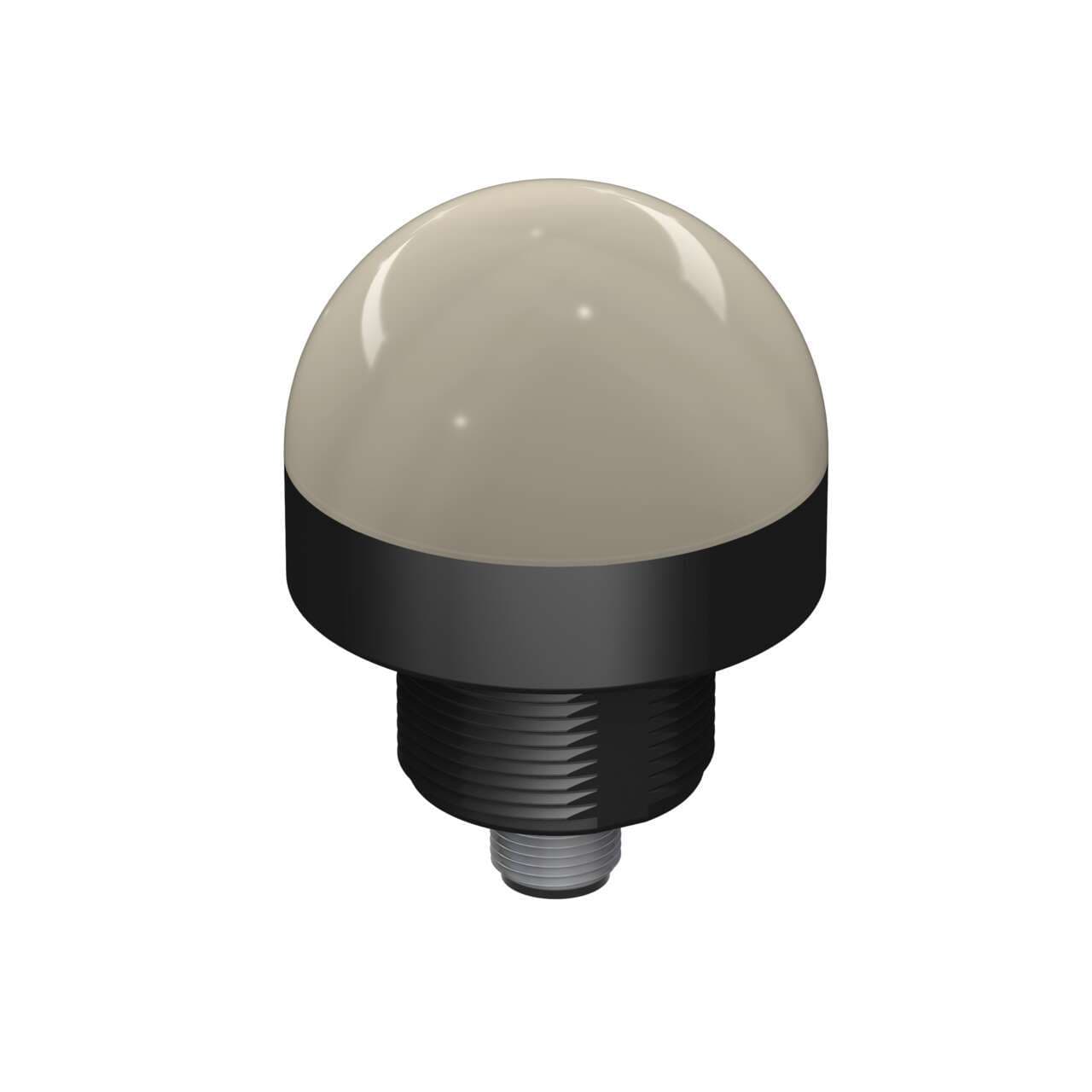

K50LNBXXPQ Banner Pick-to-Light Sensors
Part#:K50LNBXXPQ
Manufacturer:Banner
Alt. Part#:87283
Product Lifecycle:Active
Get a quick Quote!
K50LN Series EZ-LIGHT: 1-Color Hazardous Area Indicator; Protection Type: Ex nA_Ex tc; Voltage: 10-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Blue; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50LNBXXPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight181.4368 g
- Country Of OriginMX
- Power Source DC
- Connection Integral QD
- Feature: Audible No
- Indication Yes
- Min Op. Temperature (°C) -40
- Number of Input Pins/Conductors 4
- Feature: Quick Disconnect Yes
- Cable Length (m) 0.15
- Supply Voltage 10-30 V dc
- Primary Housing Color Black
- IO Link No
- Mounting Thread M30 x 1.5
- Animation Option 1 Solid On
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 69.0
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Product Size (mm) 50
- Feature: Hazardous Area Yes
- Pro-Editor Compatible (Discrete) No
- Primary Housing Material Polycarbonate
- Quick Disconnect Type M12 (Euro)
- Environmental Rating IP67; IP69
- Feature: Chemical Resistant No
- Number of Colors / Segments 1
- Max Current Color (mA) 25
- Max Op. Temperature (°C) 50
- Multi-Color Device Single Color On
- Housing Style Base Mount - Dome Window
- Color Option 1 Blue
- Primary Window Material Polycarbonate Diffused
- Modbus RTU No
- Power DC
- Color Technology Standard LED
- Input Type PNP
- Feature: Washdown Rated Yes
- Wireless No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K50LNBXXPQ Description
Banner Engineering K50LNBXXPQ is a pilot light from the EZ-LIGHT series designed for hazardous areas, featuring LED pilot light indicator functionality. This part offers a 2-color G/R color pattern LED illumination within a black housing. The design includes a dome window shape with both the window and base made of polycarbonate (PC) material. It is pre-wired with a 2m / 6.5ft cable that terminates with bare end flying leads for connectivity. The supply voltage requirement ranges from 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc. It supports surface, base, or pole flush mounting with a 30mm hole and M30 thread, and has a 50mm / 2" dome diameter. The K50LNBXXPQ operates within an ambient air temperature range of -40°C to +50°C and boasts a degree of protection rated at IP67 and IP69K. Its current consumption is 25mA, and it features 2 x digital inputs (10-30Vdc; PNP) for color control.
Related documents K50LNBXXPQ Specs
