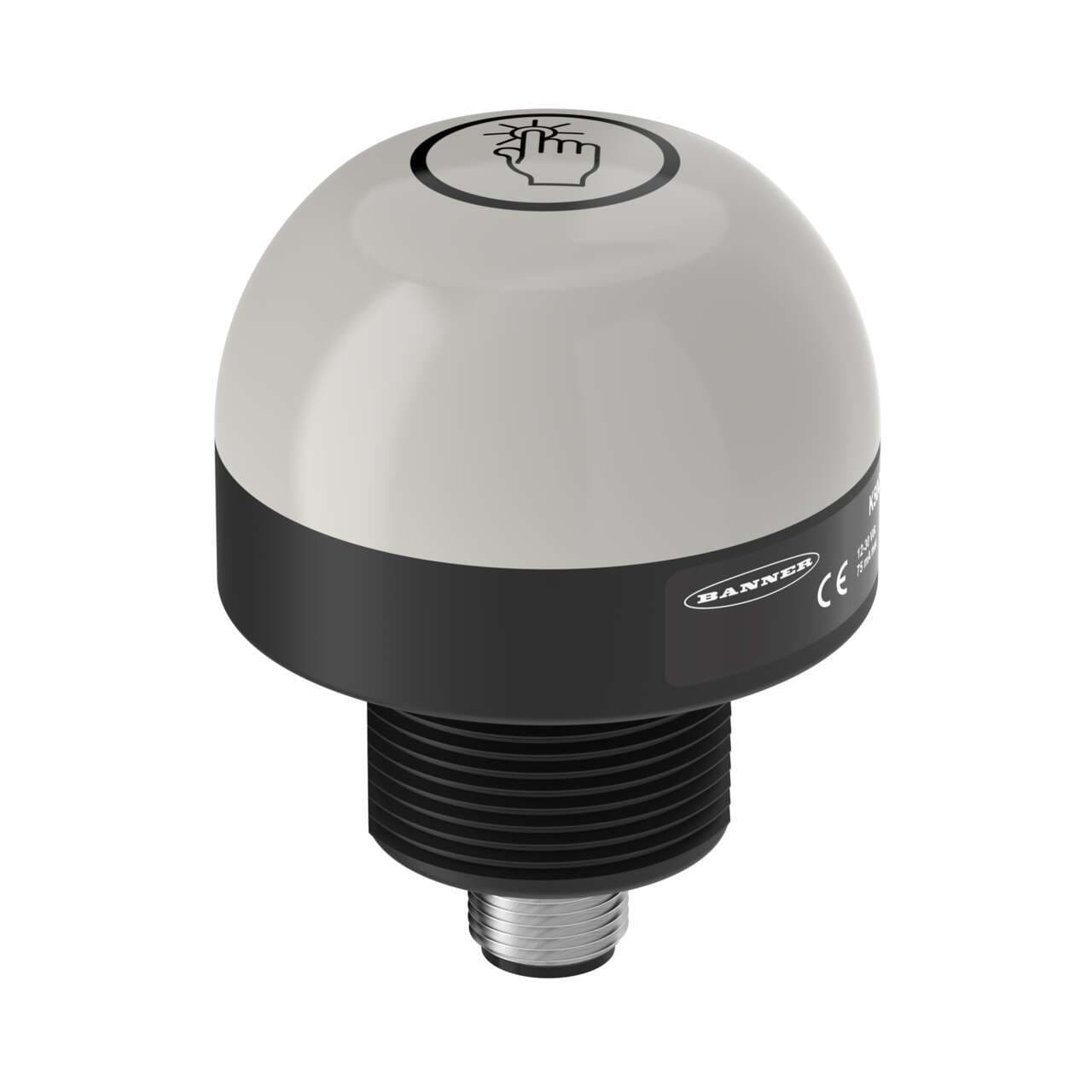

K50APTGRCQ Banner Pick-to-Light Sensors
Part#:K50APTGRCQ
Manufacturer:Banner
Alt. Part#:24983
Product Lifecycle:Active
Get a quick Quote!
K50 Series EZ-LIGHT: 2-Color Touch Sensor; Touch Light Overrides Job Light; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Green Red; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50APTGRCQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight136.0776 g
- Country Of OriginCN
- Power DC
- Quick Disconnect Type M12 (Euro)
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- I/O Block Compatible Yes
- Storage Temp (°C) -40 to 70
- Wireless No
- Button Operation Momentary
- Modbus RTU No
- Housing Style Base Mount - Dome Window
- Lumens Color 1 29.0
- Output Type PNP
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Power Source DC
- Connection Integral QD
- Lumens Color 2 13.0
- Operation Normally Open
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Audible No
- Actuation Yes
- Animation Option 1 Solid On
- Max Current Color (mA) 75
- Max Output Response Time (ms) 50
- Feature: Washdown Rated Yes
- Activation Function Capacitive Touch
- Color Option 1 Green
- Number of Input Pins/Conductors 4
- Min Op. Temperature (°C) -40
- Multi-Color Device Single Color On
- Mounting Thread M30 x 1.5
- Product Size (mm) 50
- Input Type PNP
- Primary Window Material Polycarbonate Diffused
- Job Light Green
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 2 Red
- Supply Voltage 12-30 V dc
- Max Op. Temperature (°C) 50
- IO Link No
- Color Technology Standard LED
- Cable Length (m) 0.15
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Pick-to-Light Function C
- Environmental Rating IP67; IP69
- Feature: Chemical Resistant No
- Primary Housing Material Polycarbonate
- Number of Colors / Segments 2
- Acknowledge (Sense) Light Red
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 66.0
- Feature: Hazardous Area No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K50APTGRCQ Description
K50 Series EZ-LIGHT: 2-Color Touch Sensor; Touch Light Overrides Job Light, Voltage: 12-30V dc; Housing: Polycarbonate; IP67 IP69K, Input: PNP (NO); Colors: Green Red, Euro-style Quick-Disconnect Connector
