K50APT2GRYC3Q Banner Pick-to-Light Sensors
Part#:K50APT2GRYC3Q
Manufacturer:Banner
Alt. Part#:96674
Product Lifecycle:Active
Get a quick Quote!
K50 Series EZ-LIGHT: 3-Color Touch Sensor Gen 2; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Green Red Yellow; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50APT2GRYC3Q Banner price in the box on the right side or send a quick quote.
Product Details
- Weight181.4368 g
- Country Of OriginMX
- Power DC
- Cable Length (m) 0.15
- Power Source DC
- Primary Housing Material Polycarbonate
- Lumens Color 2 13.0
- Pick-to-Light Function C3
- Feature: Washdown Rated Yes
- Actuation Yes
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Acknowledge (Sense) Light Yellow
- Max Output Response Time (ms) 50
- Button Operation Momentary
- Mounting Thread M30 x 1.5
- Lumens Color 1 29.0
- Connection Integral QD
- Number of Input Pins/Conductors 5
- Max Op. Temperature (°C) 50
- Feature: Chemical Resistant No
- Animation Option 1 Solid On
- Color Option 3 Yellow
- Supply Voltage 12-30 V dc
- Storage Temp (°C) -40 to 70
- Feature: Audible No
- Quick Disconnect Type M12 (Euro)
- Mis-Pick Light Red
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Multi-Color Device Single Color On
- Activation Function Capacitive Touch
- Color Option 1 Green
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Input Type PNP
- Feature: Hazardous Area No
- Lumens Color 3 24.0
- Output Type PNP
- Min Op. Temperature (°C) -40
- Wireless No
- Number of Colors / Segments 3
- Color Option 2 Red
- Operation Normally Open
- Environmental Rating IP67; IP69
- Modbus RTU No
- Color Technology Standard LED
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 3 - Wavelength/Color Temp/Coordinates 591 nm
- I/O Block Compatible Yes
- Primary Window Material Polycarbonate Diffused
- Housing Style Base Mount - Dome Window
- Product Size (mm) 50
- Max Current Color (mA) 75
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 66.0
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Job Light Green
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K50APT2GRYC3Q Description

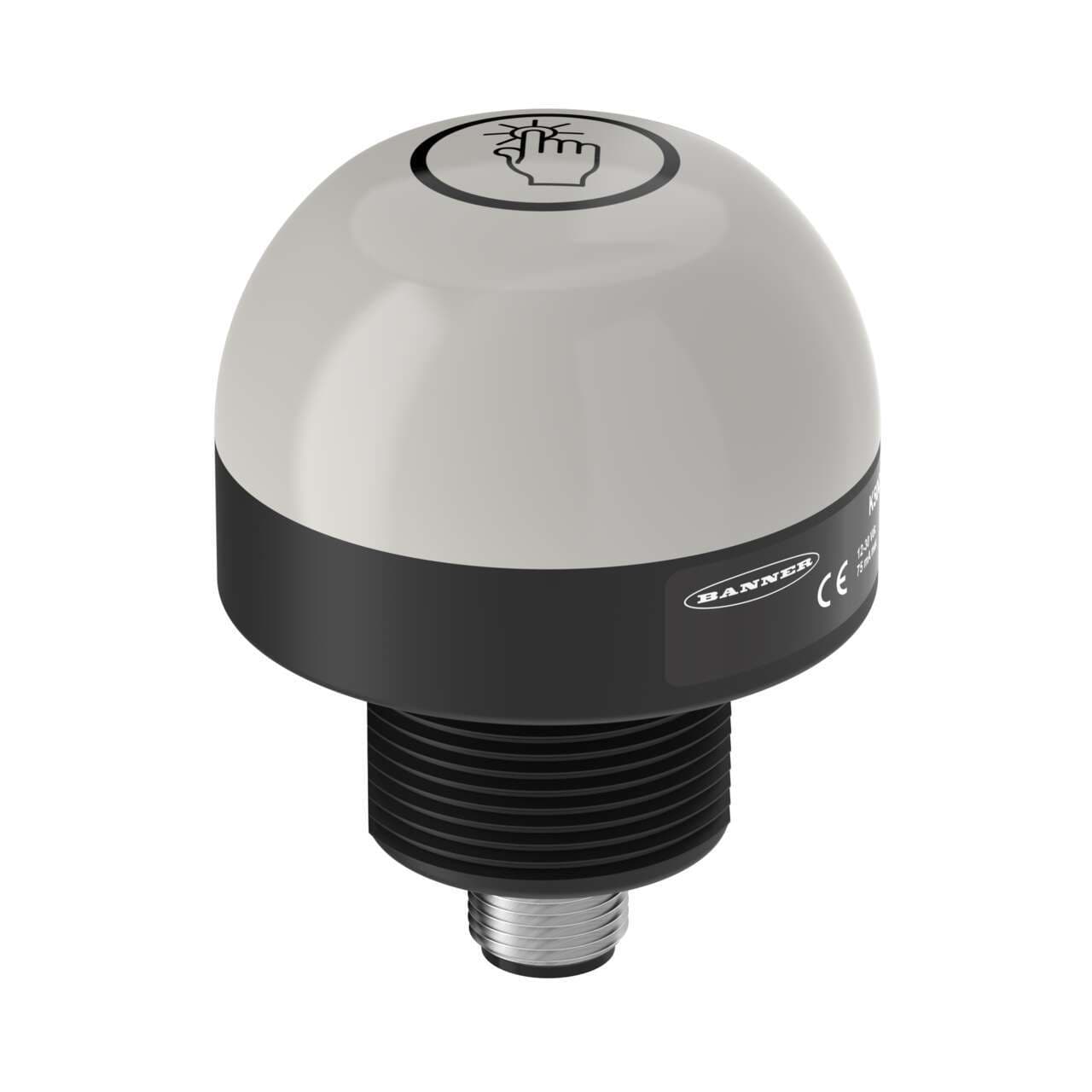

Banner Engineering K50APT2GRYC3Q, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 LED illumination. It features a black housing with a dome-shaped window made from diffused polycarbonate (PC) and a base also constructed from PC. This part is pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. It operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and can be mounted on the surface or base pole with an M30 thread. The dome diameter measures 50mm / 2 inches. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67 and IP69K. The operating mode includes a momentary job light (G; Green) that turns on when the job input is active, touch activation for output and sensing light (Y; Yellow), and a mispick light (R; Red) with output NO (Normally Open) touch output when touched with inactive job input. It also features 1 x digital input (12-30Vdc; PNP) for JOB color control and 2 x digital outputs (12-30Vdc; PNP) for Touch and Mispick functions.
