K50APT2GXDQ Banner Pick-to-Light Sensors
Part#:K50APT2GXDQ
Manufacturer:Banner
Alt. Part#:96692
Product Lifecycle:Active
Get a quick Quote!
K50 Series EZ-LIGHT: 1-Color Touch Sensor Gen 2; Job Light Only; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Green; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50APT2GXDQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight136.0776 g
- Country Of OriginCN
- Housing Style Base Mount - Dome Window
- Connection Integral QD
- Supply Voltage 12-30 V dc
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Multi-Color Device Single Color On
- Actuation Yes
- Lumens Color 1 29.0
- Pick-to-Light Function D
- Min Op. Temperature (°C) -40
- IO Link No
- Primary Housing Material Polycarbonate
- Product Size (mm) 50
- Max Current Color (mA) 75
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 66.0
- Button Operation Momentary
- Wireless No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Input Type PNP
- Primary Housing Color Black
- Modbus RTU No
- Cable Length (m) 2
- Animation Option 1 Solid On
- Operation Normally Open
- Storage Temp (°C) -40 to 70
- Pro-Editor Compatible (Discrete) No
- Power Source DC
- Quick Disconnect Type M12 (Euro)
- Output Type PNP
- Primary Window Material Polycarbonate Diffused
- Feature: Hazardous Area No
- Activation Function Capacitive Touch
- Color Option 1 Green
- Max Output Response Time (ms) 50
- Feature: Washdown Rated Yes
- Job Light Green
- Power DC
- Color Technology Standard LED
- Number of Input Pins/Conductors 5
- Environmental Rating IP67; IP69
- Feature: Chemical Resistant No
- Mounting Thread M30 x 1.5
- Number of Colors / Segments 1
- I/O Block Compatible Yes
- Max Op. Temperature (°C) 50
- Feature: Audible No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K50APT2GXDQ Description

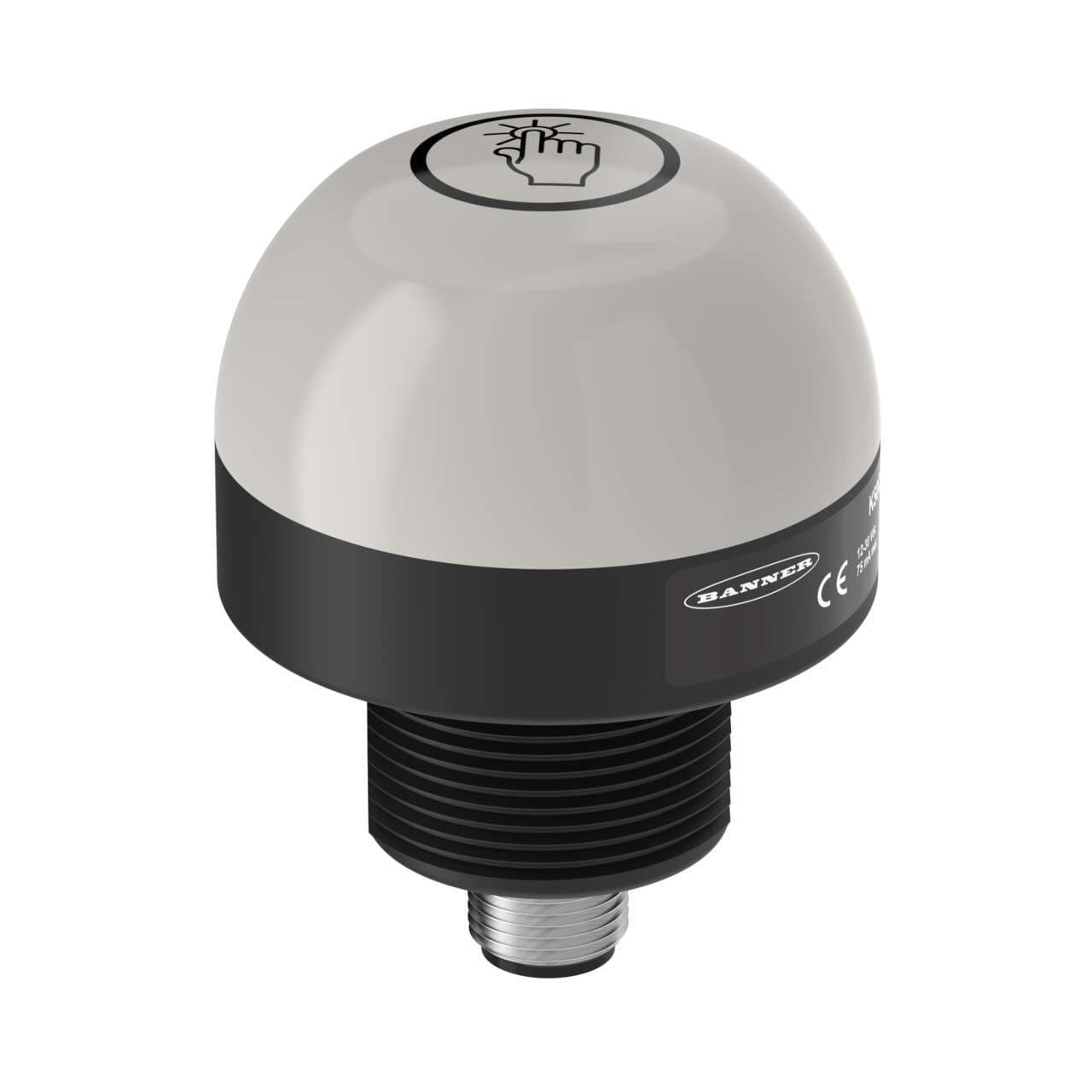

Banner Engineering K50APT2GXDQ is a capacitive touch-sensitive pick-to-light component from the EZ-LIGHT series designed for automation applications. This part features Gen.2 LED illumination within a black housing and a dome window shape. The window and base are made from polycarbonate (PC), ensuring durability. It comes pre-equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The K50APT2GXDQ operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal, and can be mounted on the surface or a base pole with an M30 thread. The dome has a diameter of 50mm (2 inches), and the device is designed to operate in ambient air temperatures ranging from -40°C to +50°C. It offers a high degree of protection with IP67 and IP69K ratings, making it suitable for harsh environments. The operating mode includes a momentary job light (Green) that remains on when the input is active, and touch activates the output only with a Normally Open (NO) touch output. The current consumption is 75mA, and it features 1 x digital input (12-30Vdc; PNP) for JOB color control and 1 x digital output (12-30Vdc; PNP) for touch functionality.
