K50APFF100GRCQ Banner Pick-to-Light Sensors
Part#:K50APFF100GRCQ
Manufacturer:Banner
Alt. Part#:76229
Product Lifecycle:Active
Get a quick Quote!
K50 C-Series EZ-LIGHT: 2-Color Fixed-Field Sensor; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Range: 100 mm; Input: PNP (NO); Colors: Green Red; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50APFF100GRCQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight158.7572 g
- Country Of OriginMX
- Mounting Thread M30 x 1.5
- Number of Input Pins/Conductors 4
- Environmental Rating IP67; IP69
- Min Op. Temperature (°C) -40
- Pro-Editor Compatible (Discrete) No
- Power Source DC
- Color Technology Standard LED
- Acknowledge (Sense) Light Red
- Max Output Response Time (ms) 3
- Primary Window Material Polycarbonate Diffused
- IO Link No
- Feature: Audible No
- Power DC
- Number of Colors / Segments 2
- Max Current Color (mA) 75
- Input Type PNP
- Number of Beams 1
- Feature: Chemical Resistant No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Animation Option 1 Solid On
- Pick-to-Light Function C
- Maximum Sensing Distance (mm) 100
- Feature: Washdown Rated Yes
- Modbus RTU No
- Actuation Yes
- Color Option 2 Red
- Supply Voltage 12-30 V dc
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 67.8
- Primary Housing Color Black
- Wireless No
- Primary Housing Material Polycarbonate
- Color Option 1 Green
- I/O Block Compatible Yes
- Max Op. Temperature (°C) 50
- Multi-Color Device Single Color On
- Activation Function Optical
- Connection Integral QD
- Output Type PNP
- NEMA Type and UL Type Rating UL 4X, 13
- Job Light Green
- Button Operation Momentary
- Housing Style Base Mount - Dome Window
- Quick Disconnect Type M12 (Euro)
- Product Size (mm) 50
- Operation Normally Open
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Hazardous Area No
- Sensing Mode (General) Fixed Field
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K50APFF100GRCQ Description

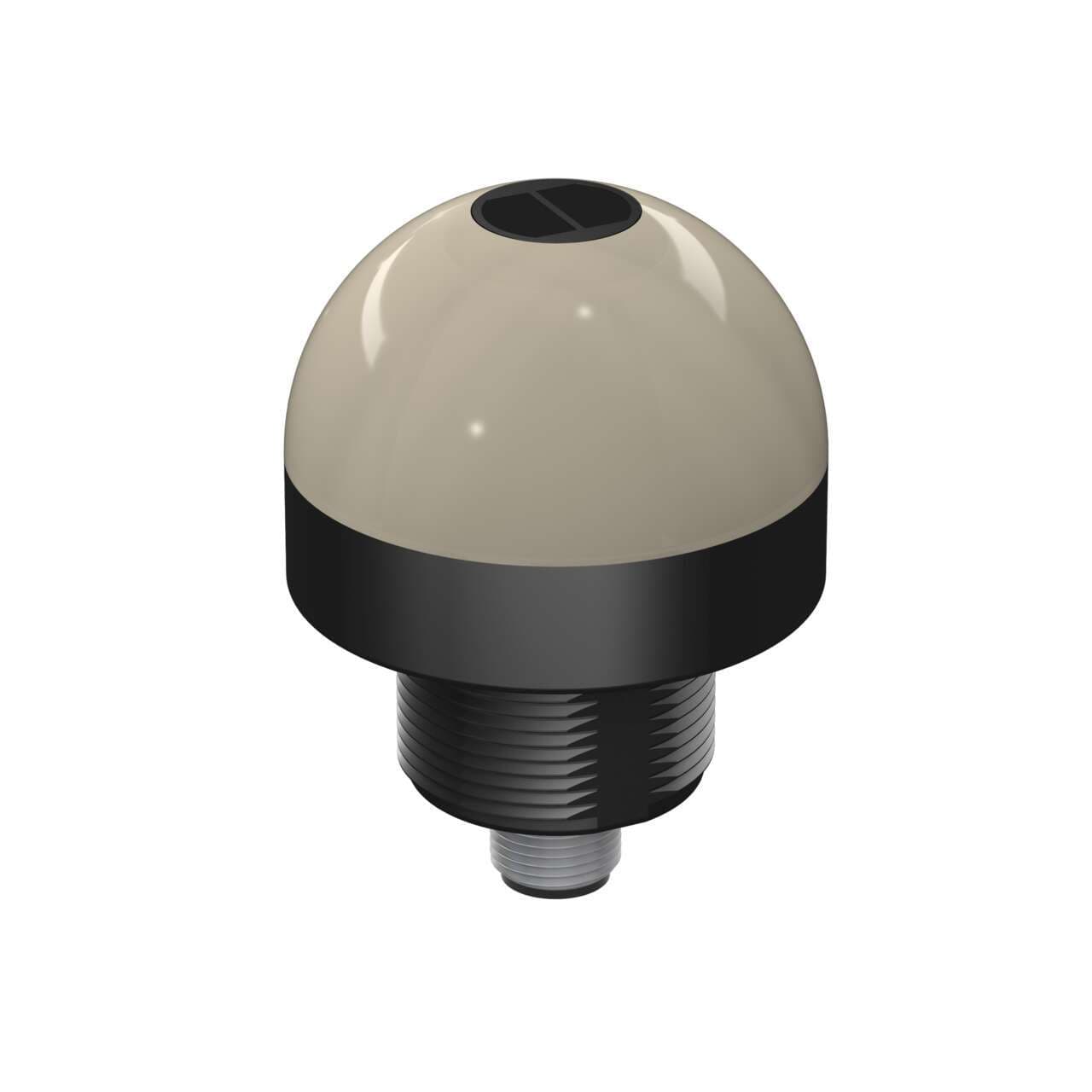

Banner Engineering K50APFF100GRCQ, part of the EZ-LIGHT series, is a pick-to-light device designed with a fixed field infrared (IR) sensing LED illumination. This unit features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. It is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The device operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal, and offers versatile mounting options including surface, base pole M30, and 1/2" NPSM thread. The dome diameter measures 50mm / 2 inches, and it can operate in ambient air temperatures ranging from -40°C to +50°C. It boasts a high degree of protection with ratings of IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. The operating mode includes a momentary job light (G; Green) that is ON when the job input is active, and touch activates the output and sensing light (R; Red) with a NO (Normally Open) touch output. It features 1 x digital input (12-30Vdc; PNP) for JOB color control and a sensing distance of 100mm, along with 1 x digital output (12-30Vdc; PNP) for touch functions.
Related documents K50APFF100GRCQ Specs
