K50ABT2XGHQ Banner Pick-to-Light Sensors
Part#:K50ABT2XGHQ
Manufacturer:Banner
Alt. Part#:96731
Product Lifecycle:Active
Get a quick Quote!
K50 Series EZ-LIGHT: 1-Color Touch Sensor Gen 2; Momentary Output; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Output: Bipolar (NO); Colors: None - Not Activated, Green - Activated; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50ABT2XGHQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight136.0776 g
- Country Of OriginMX
- Power Source DC
- Lumens Color 2 29.0
- Operation Normally Open
- Primary Housing Color Black
- Housing Style Base Mount - Dome Window
- Product Size (mm) 50
- Pick-to-Light Function H
- Max Op. Temperature (°C) 50
- Button Operation Momentary
- Power DC
- Activation Function Capacitive Touch
- Color 2 - Wavelength/Color Temp/Coordinates 525 nm
- Output Type Bipolar (NPN & PNP)
- Min Op. Temperature (°C) -40
- Multi-Color Device Single Color On
- Color Option 2 Green
- Number of Input Pins/Conductors 5
- I/O Block Compatible Yes
- Wireless No
- Actuation Yes
- Connection Integral QD
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Washdown Rated Yes
- IO Link No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Environmental Rating IP67; IP69
- Feature: Audible No
- Mounting Thread M30 x 1.5
- Number of Colors / Segments 1
- Input Type PNP
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 66.0
- Feature: Chemical Resistant No
- Modbus RTU No
- Primary Housing Material Polycarbonate
- Color Technology Standard LED
- Supply Voltage 12-30 V dc
- Storage Temp (°C) -40 to 70
- Primary Window Material Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) No
- Quick Disconnect Type M12 (Euro)
- Max Current Color (mA) 75
- Max Output Response Time (ms) 50
- Feature: Hazardous Area No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K50ABT2XGHQ Description

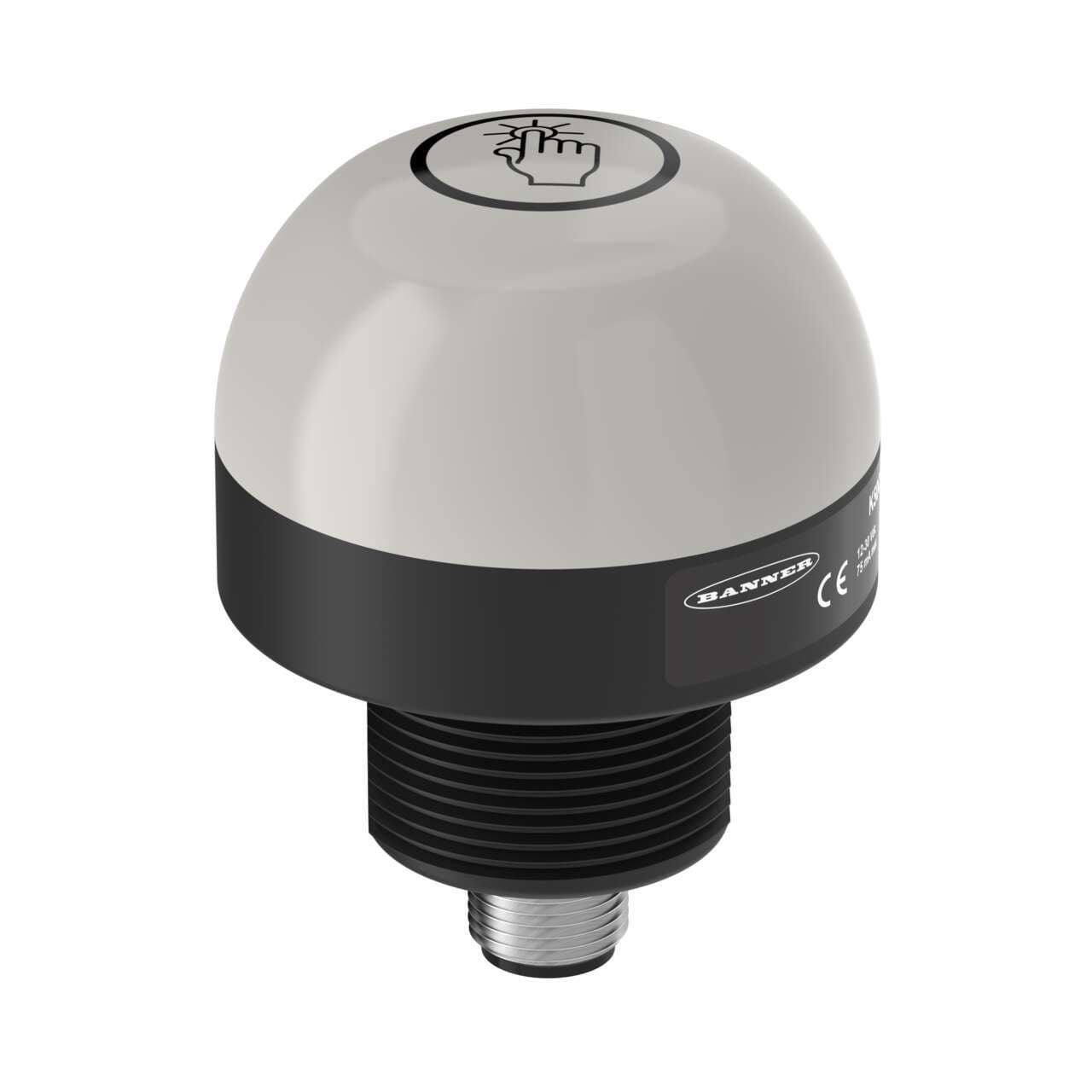

Banner Engineering K50ABT2XGHQ is an illuminated capacitive touch-sensitive button from the EZ-LIGHT series, featuring Gen.2 1-color LED illumination that displays no color when not activated and green (G) when activated. It has a black housing with a dome-shaped window made from diffused polycarbonate (PC) and a base also constructed from polycarbonate (PC). This part is designed for surface or base pole mounting with an M30 thread and comes pre-equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector. It operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal. The K50ABT2XGHQ has a 50mm / 2" dome diameter and can operate in ambient air temperatures ranging from -40°C to +50°C. It is rated for IP67 and IP69K degrees of protection, ensuring durability in various environments. The operating mode is momentary NO (Normally Open) touch output, with a current consumption of 75mA. It also features 1 x digital input (12-30Vdc; PNP/NPN) for color control and 1 x digital output (12-30Vdc; PNP/NPN) for touch functionality.
