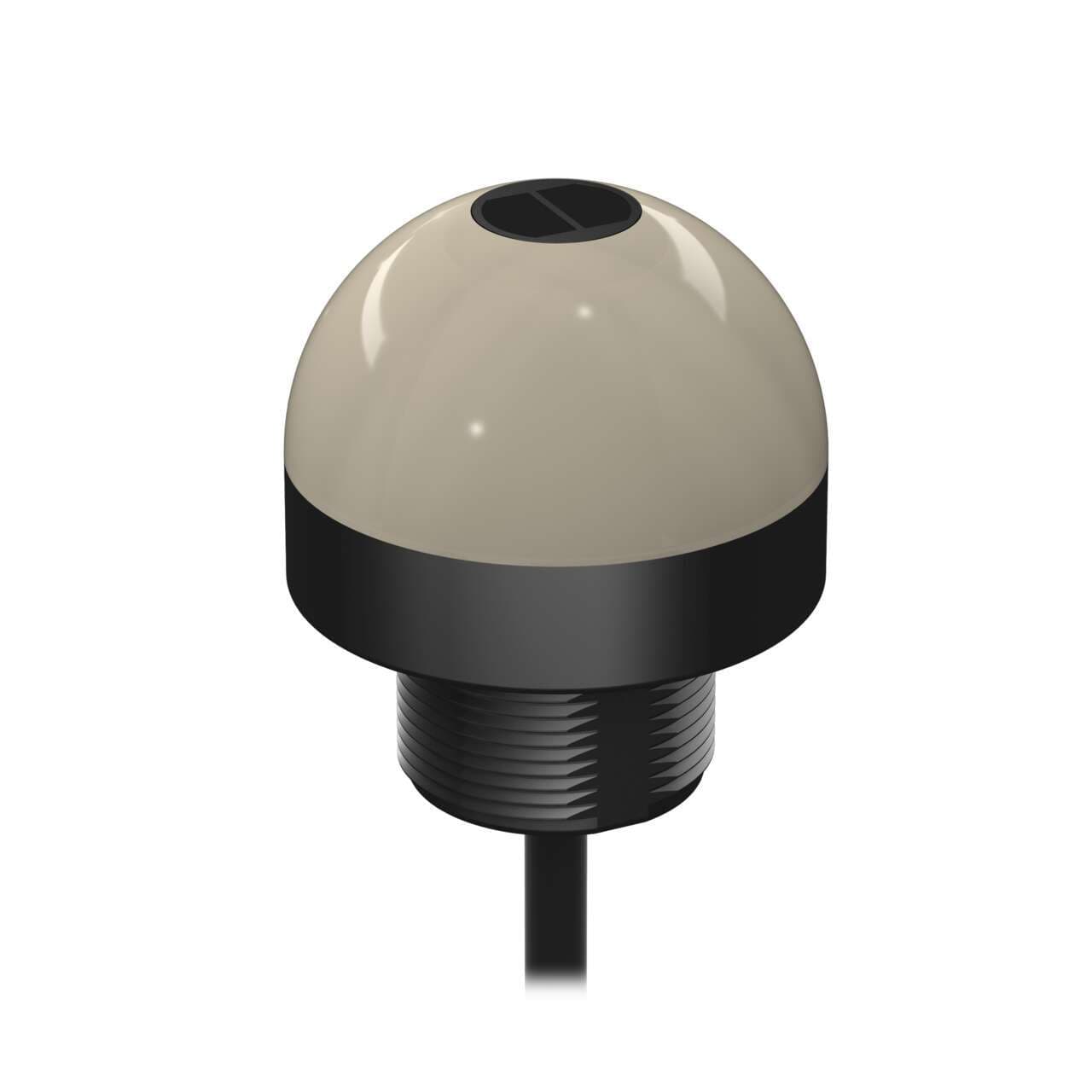

K50APFF100GREQP Banner Pick-to-Light Sensors
Part#:K50APFF100GREQP
Manufacturer:Banner
Alt. Part#:75376
Product Lifecycle:Active
Get a quick Quote!
K50 E-Series EZ-LIGHT: 2-Color Fixed-Field Sensor; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Range: 100 mm; Input: PNP (NO); Colors: Green Red; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50APFF100GREQP Banner price in the box on the right side or send a quick quote.
Product Details
- Weight158.7572 g
- Country Of OriginMX
- Actuation Yes
- Color Technology Standard LED
- Supply Voltage 12-30 V dc
- Environmental Rating IP67; IP69
- Feature: Audible No
- Activation Function Optical
- Color Option 2 Red
- Housing Style Base Mount - Dome Window
- Mis-Pick Light Red
- Maximum Sensing Distance (mm) 100
- Button Operation Momentary
- Max Current Color (mA) 75
- Power DC
- Number of Colors / Segments 2
- Pick-to-Light Function E
- Primary Housing Color Black
- Number of Input Pins/Conductors 4
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 56.8
- Primary Window Material Polycarbonate Diffused
- Sensing Mode (General) Fixed Field
- Connection Pigtail QD
- Input Type PNP
- Cable Length (m) 0.15
- NEMA Type and UL Type Rating UL 4X, 13
- Multi-Color Device Single Color On
- Product Size (mm) 50
- Color Option 1 Green
- I/O Block Compatible Yes
- Max Op. Temperature (°C) 50
- Mounting Thread M30 x 1.5
- Min Op. Temperature (°C) -40
- Job Light Green
- Number of Beams 1
- Feature: Hazardous Area No
- Power Source DC
- Animation Option 1 Solid On
- Operation Normally Open
- Quick Disconnect Type M12 (Euro)
- Primary Housing Material Polycarbonate
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Wireless No
- IO Link No
- Output Type PNP
- Max Output Response Time (ms) 3
- Feature: Chemical Resistant No
- Modbus RTU No
- Feature: Washdown Rated Yes
- Pro-Editor Compatible (Discrete) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K50APFF100GREQP Description
Banner Engineering K50APFF100GREQP is a pick-to-light device from the EZ-LIGHT series, designed for optical sensing with a fixed field infrared (IR) sensing I.O. block compatible LED illumination. It features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and base. This unit is pre-wired with a 6" / 15cm pigtail that terminates with a 4-pin M12 Euro-style QD connector. It operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.) and can be mounted via surface / base M30 / 1/2" NPSM thread. The dome diameter is 50mm / 2", and it is designed to operate in ambient air temperatures ranging from -40°C to +50°C. It offers a degree of protection rated at IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. The operating mode includes a momentary job light (G; Green) that is ON when the job input is active, touch activates output only, touch with inactive job input activates mispick light (R; Red), and a NO (Normally Open) touch output. It has a current consumption of 75mA, 1 x digital input (12-30Vdc; PNP) for JOB color control, a sensing distance of 100mm, and digital outputs including 1 x digital output (12-30Vdc; PNP) for Touch and 1 x digital output (12-30Vdc; PNP) for Mispick.
