Variable Frequency Drives (VFD)

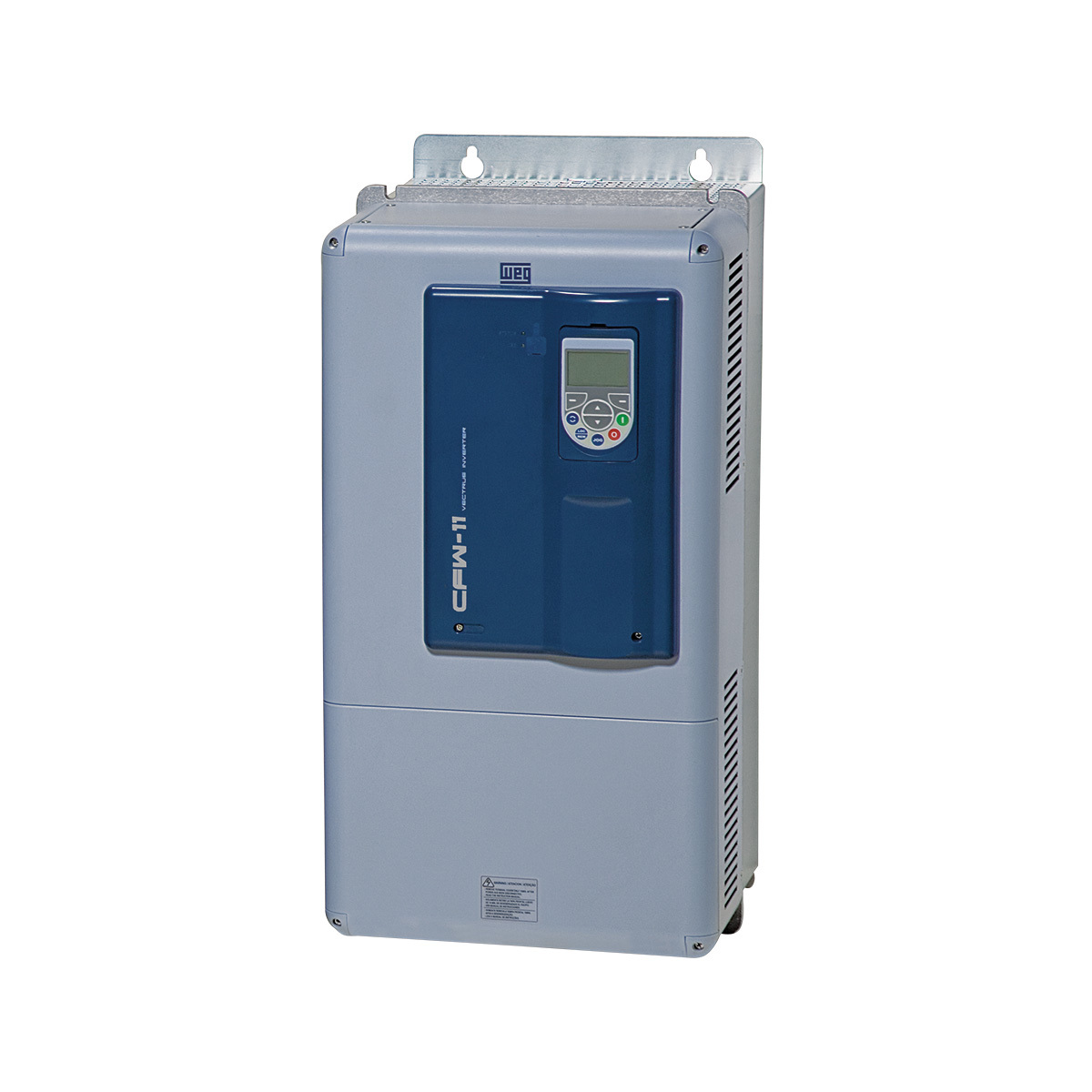

CFW110125T6ON1YZ

DRIVE CFW110125T6ON1YZ

WEG

HVW701D105T2N12-X-B

WEG HVW701D105T2N12-X-B - STANDARD PANEL HVW701D105T2N12-X-B, HVAC Enclosed Drives (HVW)

WEG

3G3RX2-A4015

RX2 Series High-Performance Inverter

Omron

ACS35503U09A82J404

MACHINERY DRIVE, 3 HP, 9.8 A, 240 VAC, Voltage Range: 200-240V, UL TYPE OPEN (IP20), Cabinet-mounted, Basic Panel, 3-Phase Input, 3-Phase Output, Frame: R2

ABB Control

EP209-I00-ENR0

NIDEC EP209-I00-ENR0 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Indexer series designed for point-to-point positioning with an ambient air temperature for operation range of 0°C to +40°C. It features 2 analog outputs (20mA / -10...+10Vdc; single-ended; 10-bit conversion resolution), an IP20 degree of protection, and dimensions of H9.6" x W3.4" x D5.23" (H243.84mm x W86.3mm x D132.84mm). This model also includes 8 digital outputs (150mA / 10-30Vdc; source), 1 analog input (-10...+10Vdc; differential; 14-bit conversion resolution), and 16 digital inputs (10-30Vdc; source). It supports a supply voltage (AC) of 90Vac-264Vac (120Vac / 220Vac / 230Vac / 240Vac), utilizes an RS-485 Modbus RTU communication protocol, operates with a rated current of 9A, and is designed for a single-phase input (2P) network. The rated active power is 2.325kW, and it is RoHS compliant with air cooling.

Nidec

F600-10203250E10101AN103

NIDEC F600-10203250E10101AN103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for variable speed control of AC motors. It operates within an ambient air temperature range of -20°C to +40°C and offers a degree of protection rated at IP20. This model features a frame size 10E with dimensions of H42.1" x W12.2" x D11.4" (H1069mm x W310mm x D290mm). It is equipped with 1 analog output (0-10Vdc), 2 digital outputs (240Vac; relay contact type), 1 analog input (4-20mA / 0-10Vdc; single-ended), and 3 digital inputs (24Vdc) plus an additional 3 digital inputs (0-24Vdc; configurable) for flexible connectivity. The F600 series drive utilizes external line choke air cooling, supports a supply voltage of 200Vac-240Vac (220Vac / 230Vac) with a network frequency of 60 Hz, and communicates via Modbus RTU protocol. It is designed for a 3-phase input (3P) network, with a rated current of 325A (Normal duty), rated active power of 90kW (Normal duty), and rated power of 125HP (Normal duty).

Nidec

CFW700E180T4DB20C3

WEG CFW700E180T4DB20C3 - DRIVE CFW700E0180T4DB20C3, CFW500/700 Drives

WEG

I55AE215F10V11000S

Lenze I55AE215F10V11000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a built-in RFI filter, standard I.O., and conformal coating, with dimensions of H250mm x W60mm x D130mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It supports a rated current of 3.9A for heavy-duty operations at 400Vac and 3.5A at 480Vac, with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network is 3-phase (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output, 5 digital inputs with optional uses for two of them, 2 analog inputs with optional voltage or current input, and 1 digital output. The rated active power is 1.5kW, and the rated power is 2HP for heavy-duty operations at 400-480Vac.

Lenze

CFW110758T6OYZ

DRIVE CFW110758T6OYZ

WEG

I55AE155F10V1100LS

Lenze I55AE155F10V1100LS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a built-in RFI filter, standard I.O., and conformal coating. The dimensions are H180mm x W60mm x D130mm. It supports PROFINET communication protocol and includes protection functions for overvoltage category, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 1.8A for heavy-duty operations at 400Vac and 1.6A at 480Vac, with a supply voltage of 400Vac / 480Vac. It is suitable for control cabinet or surface/wall mounting, operates within an ambient air temperature of 45°C at a switching frequency of 2kHz or 4kHz, and 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output, 5 digital inputs with optional uses for two of them, 2 analog inputs with optional voltage or current input, and 1 digital output. The rated active power is 0.55kW, and the rated power is 3/4HP for heavy-duty operations at 400-480Vac.

Lenze

I55AE155B10V11000S

Lenze I55AE155B10V11000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for compact inverter applications with DC-injection braking and brake management for brake control. It features S-ramps for smooth acceleration and deceleration, a flying restart circuit, and a PID controller. The design includes a built-in RFI filter, standard I.O., and conformal coating, with dimensions of H180mm x W60mm x D130mm. It lacks a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 3.2A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. It is suitable for control cabinet or surface/wall mounting, operates within an ambient air temperature of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network type is single-phase / 1P, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.55kW, and the rated power is 3/4HP for heavy-duty applications at 230-240Vac.

Lenze

HS30-02400023A10101AB100

NIDEC HS30-02400023A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS30 series designed for high-speed applications with a rated frequency output of 0-3000Hz (open loop). It features a built-in brake transistor, dual Safe Torque Off (STO), and utilizes air cooling for temperature management. The device has dimensions of frame size 2, measuring H8.1" x W3.1" x D5.9" (H205mm x W78mm x D150mm). It supports multiple communication protocols including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. The rated current is 2.3A for both Normal and Heavy-duty operations, with a supply voltage range of 380Vac-480Vac (400Vac / 415Vac). It operates within an ambient air temperature range of -20°C to +55°C and has a degree of protection rated at IP20 NEMA 1. The network type is a 3-phase input (3P) with a supply input frequency of 45-66 Hz and an output frequency of 0-3000 Hz. The device includes 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs plus 1 additional digital input (0-24Vdc), 1 x digital output (100mA / 0-24Vdc; PWM; source) and 1 x digital output (2A / 240Vac; source; relay contact type), along with 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit; can be used as a digital input). It has a rated active power of 0.75kW and a rated power of 1HP for both Normal and Heavy-duty applications.

Nidec

ATV61HD55Y

Schneider Electric ATV61HD55Y is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 61 series designed for three-phase networks with a supply voltage range of 425-759Vac, including nominal voltages of 480Vac, 500Vac, 600Vac, and 690Vac. It features variable speed/frequency drive capabilities with U/F ratio adjustment (2 points / 5 points / energy saving), sensorless flux vector control (standard / energy saving), and vector control without speed feedback, capable of delivering 120% of the nominal motor torque. The design incorporates a built-in EMC filter (class C3), a built-in heatsink, and a coated version for enhanced chemical resistance, conforming to a reinforced version. It has an IP20 UL type 1 degree of protection and supports wall mounting. The rated current is specified as 68A at 500Vac and 2.5kHz, 62A at 575Vac and 2.5kHz, 62A at 690Vac and 2.5kHz, with a maximum current of 81.6A for 60 seconds. Communication is facilitated through Modbus and CANopen protocols. The output network frequency ranges from 0.1 to 500 Hz. It includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) plus 1 additional digital input programmable as discrete or PTC input and another for PWR safety, along with 2 digital outputs (1 C/O SPDT relay contact and 1 NO relay contact). Analog inputs include 1 for -10...+10Vdc and another for 0-10Vdc / 0-20mA signals. The current consumption is 68A for 500Vac, 57A for 600Vac, and 63A for 690Vac, with rated active power of 55kW at 690Vac and 45kW at 500Vac, equivalent to 60HP. The dimensions are H630mm x W320mm x D290mm.

Schneider Electric

C200-06500190A10101AB100

NIDEC C200-06500190A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C200 series, designed with air cooling. It operates on a supply voltage of 500Vac-575Vac, with dimensions of frame size 6 H15.39" x W8.27" x D8.94" (H291mm x W210mm x D227mm), and offers a degree of protection of IP20 NEMA 1. The rated current is 22A under normal duty and 19A under heavy-duty conditions. It supports Modbus RTU communication protocol over a 3-phase input network, with a network frequency of 45-66 Hz (supply input) and an output frequency range of 0-550 Hz. The ambient air temperature for operation ranges from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 x digital input (0-24Vdc), and 1 x digital output (50mA / 0-24Vdc; source; PWM) plus 1 x digital output (2A / 240Vac; source; relay contact type). Additionally, it includes 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 15kW under normal duty and 11kW under heavy-duty, with a rated power of 20HP (normal duty) and 15HP (heavy-duty).

Nidec

HVW701A005T4N01-X-X

WEG HVW701A005T4N01-X-X - STANDARD PANEL HVW701A005T4N01-X-X, HVAC Enclosed Drives (HVW)

WEG

C200-02400032A10101AB100

NIDEC C200-02400032A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C200 series designed with air cooling. It operates on a supply voltage of 380Vac-480Vac (400Vac / 415Vac) and has dimensions of frame size 2 H8.07" x W2.95" x D5.9" (H205mm x W75mm x D150mm), with a degree of protection rated at IP20 NEMA 1. The rated current is 3.2A for both normal and heavy-duty operations. It supports Modbus RTU communication protocol over a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation ranges from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 x digital input (0-24Vdc), and 1 x digital output (50mA / 0-24Vdc; source; PWM) plus 1 x digital output (2A / 240Vac; source; relay contact type). The analog inputs include 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). It has a rated active power of 1.1kW and a rated power of 1.5HP / 1-1/2HP for both normal and heavy-duty applications.

Nidec

I55AE345F10V11000S

Lenze I55AE345F10V11000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a built-in RFI filter, standard I.O., and conformal coating, with dimensions of H450mm x W250mm x D230mm. This model lacks a communication interface but includes protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It supports rated currents of 107A (light-duty; 400Vac), 92.4A (light-duty; 480Vac), 89A (heavy-duty; 400Vac), and 77A (heavy-duty; 480Vac), with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature of up to 45°C (at 2kHz or 4kHz switching frequency) or 40°C (at 8kHz or 16kHz switching frequency), and has an IP20 protection degree. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs, supporting a rated active power of 55kW (light-duty; 400-480Vac) and 45kW (heavy-duty; 400-480Vac), equivalent to 75HP (light-duty) and 60HP (heavy-duty).

Lenze

HVW701D086DN01200001

WEG HVW701D086DN01200001 - STANDARD PANEL HVW701D086DN01200001, HVAC Enclosed Drives (HVW)

WEG

M600-10601780E10101AN100

NIDEC M600-10601780E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed for variable speed control with a single Safe Torque Off (STO) and requires an external choke for air cooling. It features dimensions of frame size 10E, measuring H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 197A under normal duty and 178A under heavy-duty conditions. It is designed for a supply voltage of 500Vac-690Vac (600Vac) and can function within an ambient air temperature range of -20°C to +40°C. The drive offers an IP20 NEMA 1 degree of protection and is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It includes 2 analog outputs, 6 digital inputs, 4 digital outputs, and 3 analog inputs with varying specifications for resolution and type. The rated active power is 185kW for normal duty and 160kW for heavy-duty, equivalent to 250HP and 200HP respectively.

Nidec

I55AE311F10V11000S

Lenze I55AE311F10V11000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionalities. It features a built-in RFI filter, standard I.O., and conformal coating, without a communication interface. The protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of motor protection. It supports rated currents of 28.2A (light-duty; 400Vac), 25.2A (light-duty; 480Vac), 23.5A (heavy-duty; 400Vac), and 21A (heavy-duty; 480Vac), with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature of up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with an IP20 degree of protection. The network is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 15kW (light-duty; 400Vac / 480Vac) and 11kW (heavy-duty; 400Vac / 480Vac), with rated power of 20HP (light-duty; 400Vac / 480Vac) and 15HP (heavy-duty; 400Vac / 480Vac).

Lenze
