Variable Frequency Drives (VFD)

HVW701E105T4N12-X-C

WEG HVW701E105T4N12-X-C - STANDARD PANEL HVW701E105T4N12-X-C, HVAC Enclosed Drives (HVW)

WEG

M702-09201760E10101AB100

NIDEC M702-09201760E10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor, dual Safe Torque Off (STO), and requires an external choke with air cooling for operation. It features dimensions of frame size 9E, measuring H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm). This model supports various communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 216A under normal duty and 176A under heavy-duty conditions, and it is designed for a supply voltage of 200Vac-240Vac (220Vac / 230Vac). The ambient air temperature for operation ranges from -20°C to +40°C, and it offers a degree of protection of IP20, NEMA 1, UL open. The M702 is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency of 0-599 Hz. It includes 2 x digital inputs (0-24Vdc), with terminal 8 configurable as a motor protection thermistor, and 2 x digital outputs (100mA / 0-24Vdc; source) plus 1 x digital output (2A / 240Vac; source; relay contact type). The rated active power is 55kW under normal duty and 45kW under heavy-duty, equivalent to 75HP and 60HP respectively.

Nidec

VLB30150A480

VLB30150A480 Lovato - Variable speed drive, VLB3... type, three-phase supply 400-480VAC 50/60Hz. EMC suppressor built-in, Cat. C2, 15kW

Lovato Electric

I55AE211A10V0100WS

Lenze I55AE211A10V0100WS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a standard I.O. with conformal coating, dimensions of H250mm x W60mm x D130mm, and supports Modbus TCP communication protocol. The drive offers protection against overvoltage, leakage current, earth fault resistance, and motor overtemperature. It has a rated current of 6A for heavy-duty applications at 120Vac, with a supply voltage of 120Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. This single-phase network device operates at a network frequency of 45-65 Hz (input) and 0-599 Hz (output), featuring 1 analog output, 5 digital inputs with versatile functionality, 1 digital output, and 2 analog inputs. It is rated at 1.1kW active power and 1-1/2HP for heavy-duty applications at 120Vac.

Lenze

ESV153N04TXB

ESV153N04TXB Lenze Variable Frequency Drive (VFD) - The SMV 20.0 hp (15.0 kW) drive features a 400 / 480 VAC 3Ø input in a fan cooled NEMA 1 (IP31) indoor enclosure. The SMVector NEMA 1 (IP31) is a compact and cost effective drive for a wide range of AC motor applications demanding dynamic speed and torque control. The SMVector NEMA 1 (IP31) is available in power ranges from 0.33...60.0 hp (0.25 kW...45.0 kW) and global voltages from 120 VAC...600 VAC.

Lenze

HVW701B024T2N01-I-X

WEG HVW701B024T2N01-I-X - STANDARD PANEL HVW701B024T2N01-I-X, HVAC Enclosed Drives (HVW)

WEG

EDP11S601GN1211000

STANDARD PANEL EDP11S601GN1211000

WEG

HS70-03200080A10101AB100

NIDEC HS70-03200080A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS70 series designed for high-speed applications with a built-in brake transistor and a single Safe Torque Off (STO) feature. It operates with variable frequency outputs ranging from 0-3000Hz in open loop and 0-1250Hz in closed loop, supported by air cooling. The unit has dimensions of frame size 3, measuring H15" x W3.3" x D7.9" (H382mm x W83mm x D200mm), and uses Ethernet for communication. It is rated for 11A under normal duty and 8A under heavy-duty conditions, with a supply voltage of 200Vac-240Vac (220Vac / 230Vac). The ambient air temperature for operation is between -20°C and +40°C, and it has an IP20 NEMA 1 UL open degree of protection. This VSD/VFD is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency of up to 3000 Hz. It features 2 x analog outputs, 3 x digital inputs, 3 x digital outputs, and 3 x analog inputs with varying conversion resolutions. The rated active power is 2.2kW for normal duty and 1.5kW for heavy-duty, corresponding to 3HP and 2HP, respectively.

Nidec

I55AE211B10V1100MS

Lenze I55AE211B10V1100MS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionalities. It features a built-in RFI filter, standard I.O., and conformal coating. The dimensions are H250mm x W60mm x D130mm. It supports Ethernet/IP communication protocol and includes protection functions for overvoltage category, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 6A (heavy-duty; 230-240Vac) with a supply voltage of 230Vac / 240Vac. It is suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation varies with the switching frequency, allowing a maximum of 45°C at 2kHz or 4kHz and 40°C at 8kHz or 16kHz. It has an IP20 degree of protection, operates on a single-phase / 1P network with a frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 1.1kW (heavy-duty; 230-240Vac), and the rated power is 1-1/2HP (heavy-duty; 230-240Vac).

Lenze

I55AE230F10V11000S

Lenze I55AE230F10V11000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control with additional features including compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It is equipped with a built-in RFI filter, standard I.O. conformal coating, and lacks a communication interface. The protection functions cover overvoltage category, leakage current, earth fault resistance, and overtemperature of the motor. It supports rated currents of 8.8A for light-duty at 400Vac, 7.6A for light-duty at 480Vac, 7.3A for heavy-duty at 400Vac, and 6.3A for heavy-duty at 480Vac. The supply voltage is rated for 400Vac / 480Vac, suitable for control cabinet or surface/wall mounting. The operational ambient air temperature ranges up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with a degree of protection of IP20. It operates on a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 analog output (0-10Vdc; 0-20mA or 4-20mA), 5 digital inputs (PNP/NPN logic), 1 digital output (max. 100mA), and 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 4kW for light-duty and 3kW for heavy-duty, both at 400-480Vac, translating to a rated power of 5HP for light-duty and 4HP for heavy-duty, respectively.

Lenze

EDP11S038GN3R11000

STANDARD PANEL EDP11S038GN3R11000

WEG

UMI-0185FU-B7

UMI-0185FU-B7 Unitronics - Unitronics VFD - B7 Series, 520-600V, 3 Phase, 18.5kW, 25HP, STO included

Unitronics

H300-06500430A10101AB103

NIDEC H300-06500430A10101AB103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the H300 series designed with a built-in brake transistor, internal line choke, and air cooling. It features dimensions of frame size 6, measuring H15.4" x W8.3" x D8.9" (H391mm x W210mm x D227mm). This model supports Modbus RTU communication protocol and operates with a rated current of 43A under normal duty conditions. It is designed for a supply voltage range of 500Vac-575Vac and can function within an ambient air temperature range of -20°C to +40°C. The device offers a degree of protection rated at IP20, NEMA 1, UL type 1, and is suitable for a 3-phase input network with a supply input frequency of 60 Hz. It includes 2 analog outputs, 6 digital inputs (3 of which are configurable), and 1 additional digital input ranging from 0-24Vdc, alongside 2 digital outputs of relay contact type. Additionally, it features 1 analog input for 4-20mA and another for 0-10Vdc. The rated active power is 30kW under normal duty, equivalent to 40HP.

Nidec

M1210SE

Lenze M1210SE is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with a water-tight and dust-tight corrosion-resistant stainless steel housing. It utilizes the Modbus communication protocol and is equipped with thermal overload protection and solid state motor overload protection. The device has a rated current of 4.6A at 200Vac and 4A at 230Vac, with a supply voltage range of 200Vac-240Vac, accommodating 208Vac, 220Vac, and 230Vac. It is suitable for control cabinet or surface/wall mounting and operates within an ambient air temperature range of -10 to +40 °C. The M1210SE offers a degree of protection of NEMA 4X and is designed for single-phase networks with an input frequency of 48-62 Hz and an output frequency of 0-120 Hz. It features 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs, 1 digital input for start, 1 digital input for stop, and 2 digital outputs (NPN; sinking). Additionally, it includes 1 analog input for 0-10Vdc and 1 analog input for 4-20mA. The rated active power is 0.75kW, and the rated power is 1HP, both at 200-240Vac.

Lenze

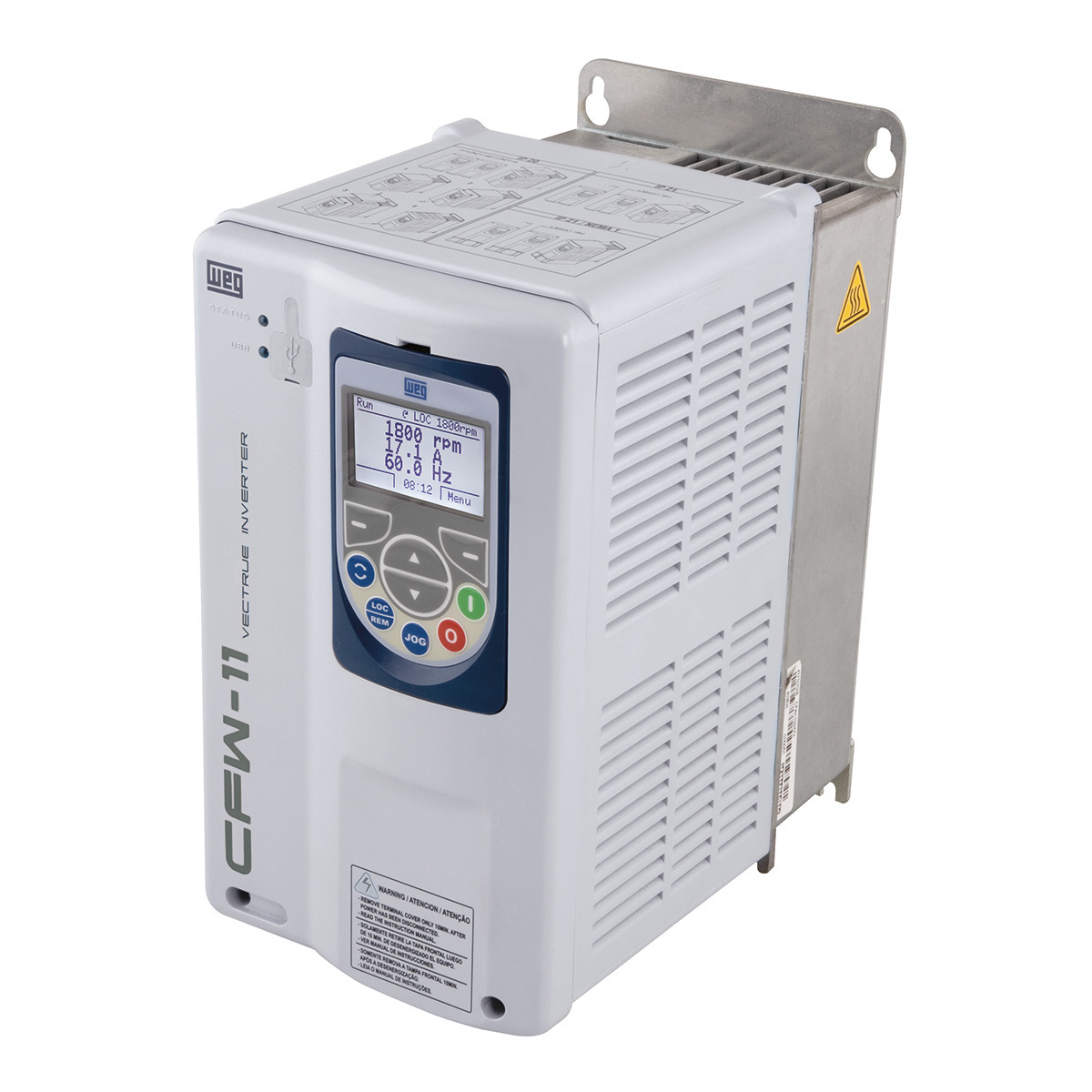

CFW110007T2ON1Z-PGM

DRIVE CFW110007T2ON1Z-PGM

WEG

HVW701C054T2N01-J-B

WEG HVW701C054T2N01-J-B - STANDARD PANEL HVW701C054T2N01-J-B, HVAC Enclosed Drives (HVW)

WEG

H300-05500100A10101AB653

NIDEC H300-05500100A10101AB653 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the H300 series designed with a built-in brake transistor, internal line choke, and utilizes air cooling for temperature management. It features dimensions of frame size 5, measuring H15.4" x W5.6" x D7.6" (H391mm x W143mm x D200mm). This model supports Modbus RTU communication protocol and operates with a rated current of 10A under normal duty conditions. It is designed for a supply voltage range of 500Vac-575Vac and can function within an ambient air temperature range of -20°C to +40°C. The device offers a degree of protection rated at IP65, NEMA 4, UL type 12, making it suitable for various industrial environments. It is compatible with a 3-phase input network (3P) and a supply input frequency of 60 Hz. The H300-05500100A10101AB653 provides 2 analog outputs, 6 digital inputs (3 x 24Vdc and 3 x 24Vdc/configurable), 1 digital input (0-24Vdc), and 2 digital outputs (relay contact type), alongside 2 analog inputs (1 x 4-20mA and 1 x 0-10Vdc). It has a rated active power of 5.5kW and a rated power of 7.5HP / 7-1/2HP under normal duty conditions.

Nidec

UMI-0040CU-B5

UMI-0040CU-B5 Unitronics - Limited Availability. If Not Available Use UMI-0040CU-B7

Unitronics

ESV112N02SFC

ESV112N02SFC Lenze Variable Frequency Drive (VFD) - The SMV 1.5 hp (1.1 kW) drive features a 208 / 240 VAC 1Ø filtered input in a convection cooled NEMA 4X (IP65) indoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated line filt

Lenze

CFW700E180T4DB20C3

WEG CFW700E180T4DB20C3 - DRIVE CFW700E0180T4DB20C3, CFW500/700 Drives

WEG
