Variable Frequency Drives (VFD)

HVW701C058T4N01-J-A

WEG HVW701C058T4N01-J-A - STANDARD PANEL HVW701C058T4N01-J-A, HVAC Enclosed Drives (HVW)

WEG

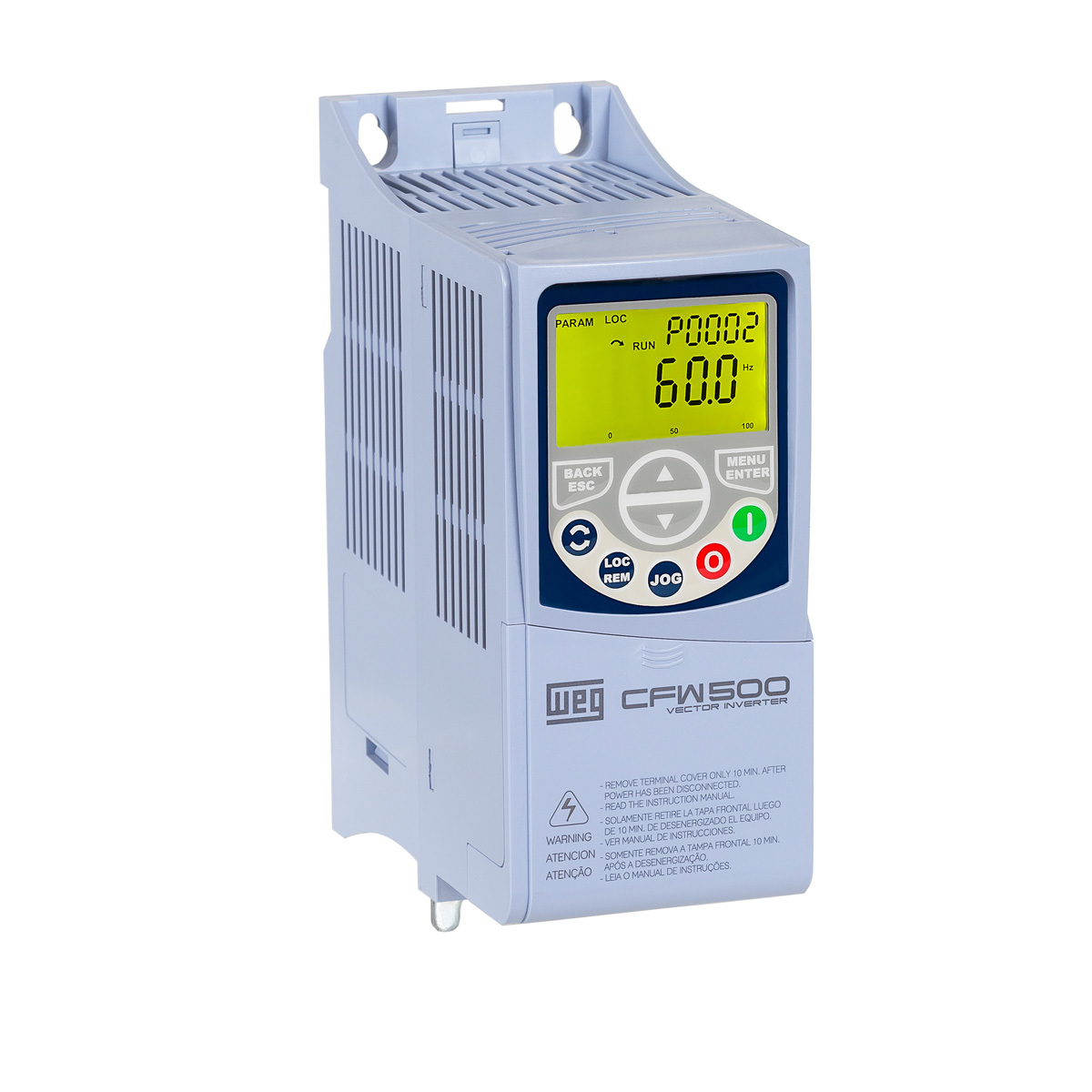

CFW500A01P6T4NB20G2

DRIVE CFW500A01P6T4NB20G2

WEG

I55AE318F1AV11002S

Lenze I55AE318F1AV11002S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H347mm x W204.5mm x D222mm. The communication protocol supported is CANopen, with protection functions including overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. It has a rated current of 48A (light-duty; 400Vac), 40.8A (light-duty; 480Vac), 40A (heavy-duty; 400Vac), and 34A (heavy-duty; 480Vac), with a supply voltage of 400Vac / 480Vac. The mounting mode is suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation is max. 45°C (at a switching frequency of 2kHz or 4kHz) and max. 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. It operates on a 3-phase (3P / 3AC) network, with a network frequency of (input) 45-65 Hz and (output) 0-599 Hz. It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 22kW (light-duty; 400-480Vac) and 18.5kW (heavy-duty; 400-480Vac), with a rated power of 30HP (light-duty; 400-480Vac) and 25HP (heavy-duty; 400-480Vac).

Lenze

F600-05400300A10101AB103

NIDEC F600-05400300A10101AB103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for controlling motor speed and frequency. It operates within an ambient air temperature range of -20°C to +40°C. This model features 1 analog output (0-10Vdc), 2 digital outputs (240Vac; relay contact type), and 1 analog input (4-20mA / 0-10Vdc; single-ended) alongside 3 digital inputs (24Vdc) and an additional 3 digital inputs (0-24Vdc; configurable) for versatile connectivity. It is protected by an IP20 enclosure and measures frame size 5, with dimensions of H15.4" x W5.6" x D7.6" (H391mm x W143mm x D200mm). The F600 series drive includes a built-in brake transistor, internal line choke, and air cooling design. It requires a 3-phase input (3P) supply voltage of 380Vac-480Vac (400Vac / 415Vac) at a network frequency of 60 Hz. Communication is facilitated via Modbus RTU protocol. The drive is rated for a current of 30A (Normal duty), with a rated active power of 15kW (Normal duty) and a rated power of 20HP (Normal duty).

Nidec

I55AE230F1AV11002S

Lenze I55AE230F1AV11002S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and supports CANopen communication protocol. The device offers protection functions against overvoltage category, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 8.8A (light-duty; 400Vac), 7.6A (light-duty; 480Vac), 7.3A (heavy-duty; 400Vac), and 6.3A (heavy-duty; 480Vac), and a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature of up to 45°C (at a switching frequency of 2kHz or 4kHz) and up to 40°C (at a switching frequency of 8kHz or 16kHz), with a degree of protection of IP20. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output, 5 x digital inputs with optional uses, 1 x digital output, and 2 x analog inputs with optional uses. The rated active power is 4kW (light-duty; 400-480Vac) and 3kW (heavy-duty; 400-480Vac), with a rated power of 5HP (light-duty; 400-480Vac) and 4HP (heavy-duty; 400-480Vac).

Lenze

M000-09201760EU0100AN100

NIDEC M000-09201760EU0100AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the M000 series designed for heavy-duty applications. It requires an external choke for air cooling and has dimensions of frame size 9E, measuring H39.7" x W12.2" x D11.4" (H1010mm x W310mm x D290mm). The rated current is 176A, and it operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac) with a network frequency of 50 Hz. This model offers a degree of protection of IP20 NEMA 1 and supports a rated active power range of 90kW-250kW and a rated power range of 125HP-400HP for heavy-duty operations.

Nidec

CFW700E142T4DBN1C3

WEG CFW700E142T4DBN1C3 - DRIVE CFW700E0142T4DBN1C3, CFW500/700 Drives

WEG

I55AE125A1AV0100KS

Lenze I55AE125A1AV0100KS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for compact inverter applications including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It adheres to the safe torque off (STO) safety standard and features an I.O. conformal coating. The dimensions are H180mm x W60mm x D130mm, and it supports EtherCAT communication protocol. Protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. The rated current is 1.7A for heavy-duty applications at 120Vac, with a supply voltage of 120Vac. It is suitable for control cabinet or surface/wall mounting, operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with a degree of protection of IP20. It is designed for a single-phase / 1P network with a frequency of 45-65 Hz (input) and 0-599 Hz (output). The unit includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.25kW, and the rated power is 1/3HP for heavy-duty applications at 120Vac.

Lenze

GA80U4089AWM

GA80U4089AWM Yaskawa - Variable frequency drive (VFD), 3 phase, 480 VAC, 89 A, Flange (Type 12 Backside), General Purpose GA800 Series

Yaskawa

HVW701C058GN01200000

WEG HVW701C058GN01200000 - STANDARD PANEL HVW701C058GN01200000, HVAC Enclosed Drives (HVW)

WEG

EDP11S795GN3R01000

STANDARD PANEL EDP11S795GN3R01000

WEG

SP3401-EZ

NIDEC SP3401-EZ is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with an E.Z. Motion module and a single Safe Torque Off (STO) feature, utilizing air cooling. This unit, with dimensions of frame size 3 H15.32" x W9.84" x D10.23" (H389mm x W250mm x D260mm), operates on a supply voltage of 380Vac-480Vac (400Vac / 415Vac) and offers a rated current of 35A under normal duty and 32A under heavy-duty conditions. It is designed for wall-mounted installation and can operate within an ambient air temperature range of 0°C to +40°C. The SP3401-EZ provides an IP20 NEMA 1 degree of protection and supports Modbus RTU RS-485 communication protocol. Its network frequency ranges from 48-65 Hz (supply input) to 0-550 Hz (output), and it features 3-phase input (3P). The device includes 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), 3 x digital inputs (0-24Vdc), and 3 additional digital inputs (0-24Vdc). Analog interface options comprise 1 x analog input (-9.8Vdc...9.8Vdc; differential) with a 16-bit conversion resolution and 2 x analog inputs (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; single-ended) with a 10-bit conversion resolution, alongside 2 x analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source) also with a 10-bit conversion resolution. The rated active power is 18.5kW for normal duty and 15kW for heavy-duty, with a rated power of 25HP for both duty types.

Nidec

HS30-02400013A10101AB100

NIDEC HS30-02400013A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) from the HS30 series designed for high-speed applications with a rated frequency output of 0-3000Hz in open loop. It features a built-in brake transistor and dual Safe Torque Off (STO) functionality, utilizing air cooling for temperature management. The device has dimensions of frame size 2, measuring H8.1" x W3.1" x D5.9" (H205mm x W78mm x D150mm). It supports multiple communication protocols including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. The rated current is 1.3A for both normal and heavy-duty operations, with a supply voltage range of 380Vac-480Vac (specifically 400Vac / 415Vac). It operates within an ambient air temperature range of -20°C to +55°C and offers a degree of protection rated at IP20 and NEMA 1. The network is designed for a 3-phase input (3P) with a supply input frequency of 45-66 Hz and an output frequency of 0-3000 Hz. The device includes 1 analog output (10Vdc; source; single-ended), 5 digital inputs (0-24Vdc) plus 1 additional digital input (0-24Vdc), and 2 digital outputs (one 100mA / 0-24Vdc; PWM; source and one 2A / 240Vac; source; relay contact type). It also features 2 analog inputs (one 0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution and one 0-10Vdc; single-ended; 11-bit; can be used as a digital input). The rated active power is 0.37kW and the rated power is 1/2HP for both normal and heavy-duty applications.

Nidec

SF420

Lenze SF420 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for precise control of motor speed and frequency. It features dimensions of H146mm x W73mm x D146mm and can operate with a supply voltage of either 400Vac or 480Vac, delivering a rated current of 3.9A at 400Vac and 3.4A at 460Vac. This unit is suitable for cabinet or DIN rail mounting and operates efficiently within an ambient air temperature range of 0 to +50 °C, with a derating of 2.5% per °C above +50°C. It supports RS-485 communication protocol and accommodates a network frequency of 48-62 Hz on input and 0-240 Hz on output. The SF420 includes 2 digital outputs (open-collector outputs; 50mA at 30Vdc) for terminals TB-14 and TB-15, and is compatible with a 3-phase network. It also features 1 analog input (0-10Vdc) at terminal TB5, 1 analog input (4-20mA) at terminal TB25, and 2 analog outputs (0-10Vdc or 2Vdc-10Vdc and 0-10Vdc or 2-10Vdc) at terminals TB-30 and TB-31, respectively, which are proportional to output frequency or load. The rated active power is 1.5kW for a supply voltage of 400-480Vac, with a corresponding rated power of 2HP for the same voltage range.

Lenze

M600-10601500E10101AN100

NIDEC M600-10601500E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed with a single Safe Torque Off (STO) and requires an external choke for air cooling. It features dimensions of frame size 10E, measuring H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 172A under normal duty and 150A under heavy-duty conditions. It is designed for a supply voltage of 500Vac-690Vac (600Vac) and can function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20 NEMA 1 degree of protection and is compatible with a 3-phase input (3P) network, supporting a supply input frequency of 45-66 Hz and an output frequency of 0-550 Hz. It includes 2 x analog outputs, 3 x digital inputs, 3 x digital outputs, and multiple analog inputs with varying specifications. The rated active power is 160kW for normal duty and 132kW for heavy-duty, corresponding to 200HP and 175HP, respectively.

Nidec
