Variable Frequency Drives (VFD)

I55AE137F10V11001S

Lenze I55AE137F10V11001S is a Variable Speed/Frequency Drive (VSD/VFD) from the Drives sub-range, designed for compact inverter applications including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It features a built-in RFI filter, application I.O., and conformal coating, with dimensions of H155mm x W60mm x D130mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 1.3A for heavy-duty applications at 400-480Vac, with a supply voltage of 400Vac / 480Vac. The mounting mode is suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation varies with the switching frequency, allowing a maximum of 45°C at 2kHz or 4kHz and 40°C at 8kHz or 16kHz, with a protection degree of IP20. It operates on a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The drive includes 2 analog outputs (0-10Vdc; 0-20mA or 4-20mA), 7 digital inputs (PNP/NPN logic), 2 digital outputs (max. 100mA), and 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA), with a rated active power of 0.37kW and rated power of 1/2HP for heavy-duty applications at 400-480Vac.

Lenze

I51AE275F10V11000S

Lenze I51AE275F10V11000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for variable speed and frequency control with additional features including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, a flying restart circuit, and a PID controller. It is equipped with a built-in RFI filter, basic I.O., and conformal coating. This model does not include a communication interface. It offers protection functions against overvoltage, leakage current, earth fault, and motor overtemperature. The rated current is 16.5A for heavy-duty operations at 400Vac and 14A at 480Vac, with a supply voltage of 400Vac / 480Vac. It is designed for control cabinet or surface/wall mounting and operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz. The degree of protection is IP20, suitable for 3-phase networks with an input frequency of 45-65 Hz and an output frequency of 0-599 Hz. It features 1 analog output, 5 digital inputs with flexible functionality, and 2 analog inputs, supporting both voltage and current signals. The rated active power is 11kW for light-duty and 7.5kW for heavy-duty operations, corresponding to 15HP and 10HP respectively, across a voltage range of 400-480Vac.

Lenze

CFW701E0150T5NBN1C3

DRIVE CFW701E0150T5NBN1C3

WEG

C200-02400032A10101AB100

NIDEC C200-02400032A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C200 series designed with air cooling. It operates on a supply voltage of 380Vac-480Vac (400Vac / 415Vac) and has dimensions of frame size 2 H8.07" x W2.95" x D5.9" (H205mm x W75mm x D150mm), with a degree of protection rated at IP20 NEMA 1. The rated current is 3.2A for both normal and heavy-duty operations. It supports Modbus RTU communication protocol over a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation ranges from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 x digital input (0-24Vdc), and 1 x digital output (50mA / 0-24Vdc; source; PWM) plus 1 x digital output (2A / 240Vac; source; relay contact type). The analog inputs include 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). It has a rated active power of 1.1kW and a rated power of 1.5HP / 1-1/2HP for both normal and heavy-duty applications.

Nidec

CFW700E180T4DB20C3

WEG CFW700E180T4DB20C3 - DRIVE CFW700E0180T4DB20C3, CFW500/700 Drives

WEG

HS70-03200080A10101AB100

NIDEC HS70-03200080A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS70 series designed for high-speed applications with a built-in brake transistor and a single Safe Torque Off (STO) feature. It operates with variable frequency outputs ranging from 0-3000Hz in open loop and 0-1250Hz in closed loop, supported by air cooling. The unit has dimensions of frame size 3, measuring H15" x W3.3" x D7.9" (H382mm x W83mm x D200mm), and uses Ethernet for communication. It is rated for 11A under normal duty and 8A under heavy-duty conditions, with a supply voltage of 200Vac-240Vac (220Vac / 230Vac). The ambient air temperature for operation is between -20°C and +40°C, and it has an IP20 NEMA 1 UL open degree of protection. This VSD/VFD is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency of up to 3000 Hz. It features 2 x analog outputs, 3 x digital inputs, 3 x digital outputs, and 3 x analog inputs with varying conversion resolutions. The rated active power is 2.2kW for normal duty and 1.5kW for heavy-duty, corresponding to 3HP and 2HP, respectively.

Nidec

I55AE211A10V0100WS

Lenze I55AE211A10V0100WS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a standard I.O. with conformal coating, dimensions of H250mm x W60mm x D130mm, and supports Modbus TCP communication protocol. The drive offers protection against overvoltage, leakage current, earth fault resistance, and motor overtemperature. It has a rated current of 6A for heavy-duty applications at 120Vac, with a supply voltage of 120Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. This single-phase network device operates at a network frequency of 45-65 Hz (input) and 0-599 Hz (output), featuring 1 analog output, 5 digital inputs with versatile functionality, 1 digital output, and 2 analog inputs. It is rated at 1.1kW active power and 1-1/2HP for heavy-duty applications at 120Vac.

Lenze

HVW701E105T4N12-X-C

WEG HVW701E105T4N12-X-C - STANDARD PANEL HVW701E105T4N12-X-C, HVAC Enclosed Drives (HVW)

WEG

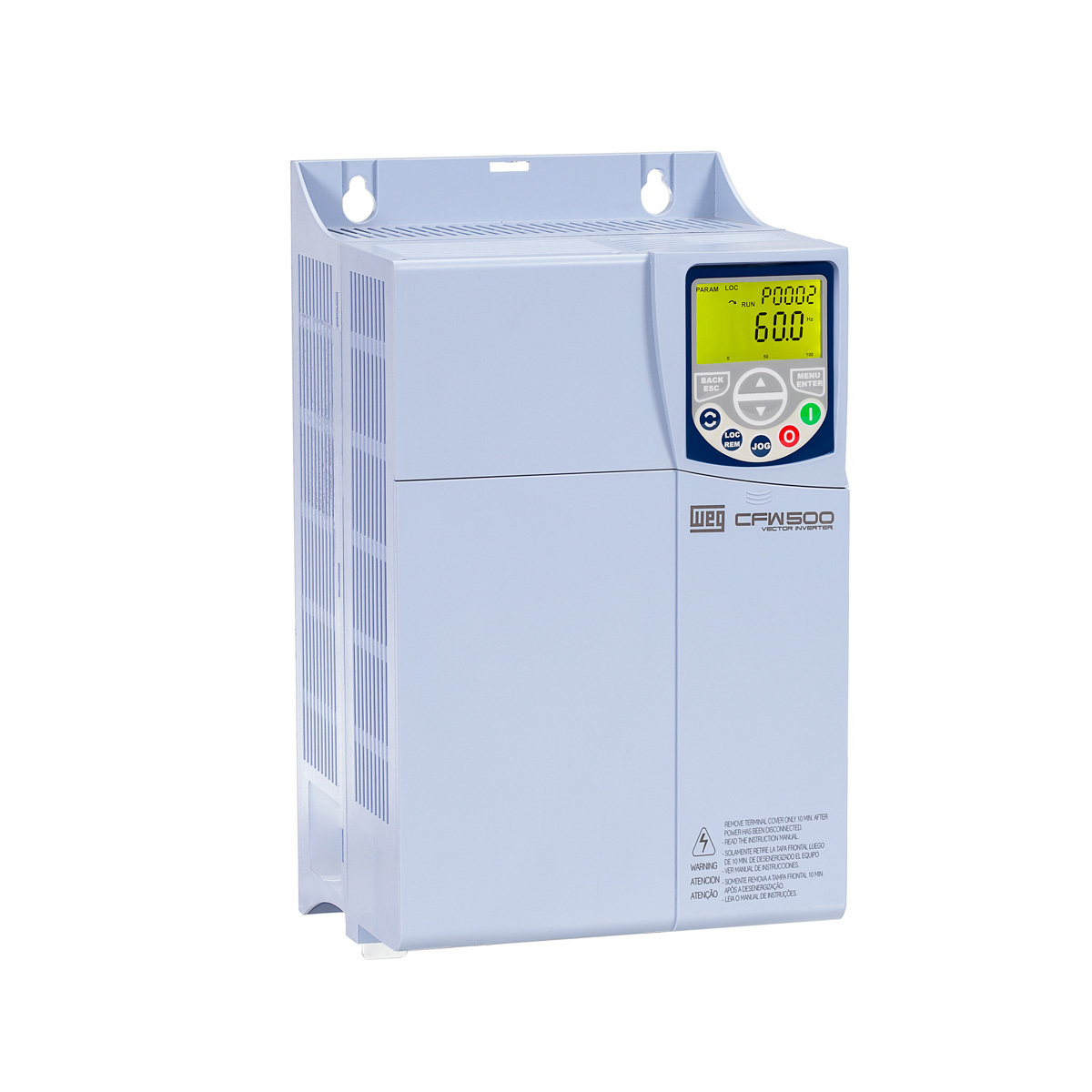

CFW500D33P0T2DB20

DRIVE CFW500D33P0T2DB20

WEG

CFW700E180T4DBN1C3

WEG CFW700E180T4DBN1C3 - DRIVE CFW700E0180T4DBN1C3, CFW500/700 Drives

WEG

M600-07600540A10101AB100

NIDEC M600-07600540A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed with a built-in brake transistor and a single Safe Torque Off (STO) feature, utilizing air cooling. It has dimensions of frame size 7, measuring H20" x W10.63" x D11.02" (H508mm x W270mm x D280mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 73A under normal duty and 54A under heavy-duty conditions. It is designed for a supply voltage of 500Vac-690Vac (600Vac) and can function in ambient air temperatures ranging from -20°C to +40°C. The device offers an IP20 NEMA 1 degree of protection and is compatible with a 3-phase input (3P) network, with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It features 2 x analog outputs (-10...+10Vdc; single-ended; source; 10-bit conversion resolution), 3 x digital inputs (0-24Vdc), 3 x digital outputs (100mA / 0-24Vdc; source), 1 x digital output (2A / 240Vac; relay contact type), and multiple analog inputs with varying specifications. The rated active power is 55kW under normal duty and 45kW under heavy-duty, corresponding to a rated power of 75HP and 60HP, respectively.

Nidec

I55AE222F1AV1100MS

Lenze I55AE222F1AV1100MS is a variable speed/frequency drive (VSD/VFD) and compact inverter designed for variable speed control, DC-injection braking, brake management, smooth acceleration and deceleration with S-ramps, and flying restart circuit functionality. It includes a PID controller for precise process control. This model features a built-in RFI filter, safe torque off (STO) safety standard, and I.O. conformal coating for enhanced durability. It measures H250mm x W60mm x D130mm and supports Ethernet/IP communication protocol. The drive offers protection against overvoltage, leakage current, earth fault resistance, and motor overtemperature. It operates with a rated current of 5.6A at 400Vac and 4.8A at 480Vac, with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates efficiently within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz. The drive has an IP20 degree of protection, is designed for a 3-phase network, and operates with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs, supporting both voltage and current input/output configurations. The rated active power is 2.2kW, and the rated power is 3HP for heavy-duty applications at 400-480Vac.

Lenze

S100-01253-0B0000

Nidec S100-01253-0B0000

Nidec

C200-09601040E10101AB100

NIDEC C200-09601040E10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C200 series designed with an external line reactor air cooling system. It operates on a supply voltage of 500Vac-690Vac (600Vac) and has dimensions of frame size 9E H42.09" x W12.21" x D11.42" (H1069mm x W310mm x D290mm), with a degree of protection rated at IP20 NEMA 1. The rated current is 125A for Normal duty and 104A for Heavy-duty applications. It supports Modbus RTU communication protocol over a 3-phase input (3P) network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation ranges from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 x digital input (0-24Vdc), and 1 x digital output (50mA / 0-24Vdc; source; PWM) plus 1 x digital output (2A / 240Vac; source; relay contact type). Additionally, it includes 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 110kW for Normal duty and 90kW for Heavy-duty, with a rated power of 150HP for Normal duty and 125HP for Heavy-duty.

Nidec

HVW701E211T2N12-I-A

WEG HVW701E211T2N12-I-A - STANDARD PANEL HVW701E211T2N12-I-A, HVAC Enclosed Drives (HVW)

WEG

I55AE155F1AV11004S

Lenze I55AE155F1AV11004S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H180mm x W60mm x D130mm. This model supports PROFIBUS communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 1.8A (heavy-duty; 400Vac) and 1.6A (heavy-duty; 480Vac), and a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates efficiently within an ambient air temperature range, with a maximum of 45°C at a switching frequency of 2kHz or 4kHz, and 40°C at a switching frequency of 8kHz or 16kHz. The device has an IP20 degree of protection, is designed for a 3-phase network (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output, multiple digital inputs with flexible functionality, 1 x digital output, and 2 x analog inputs that can be optionally used as voltage or current inputs. The rated active power is 0.55kW (heavy-duty; 400-480Vac), with a rated power of 3/4HP (heavy-duty; 400-480Vac).

Lenze

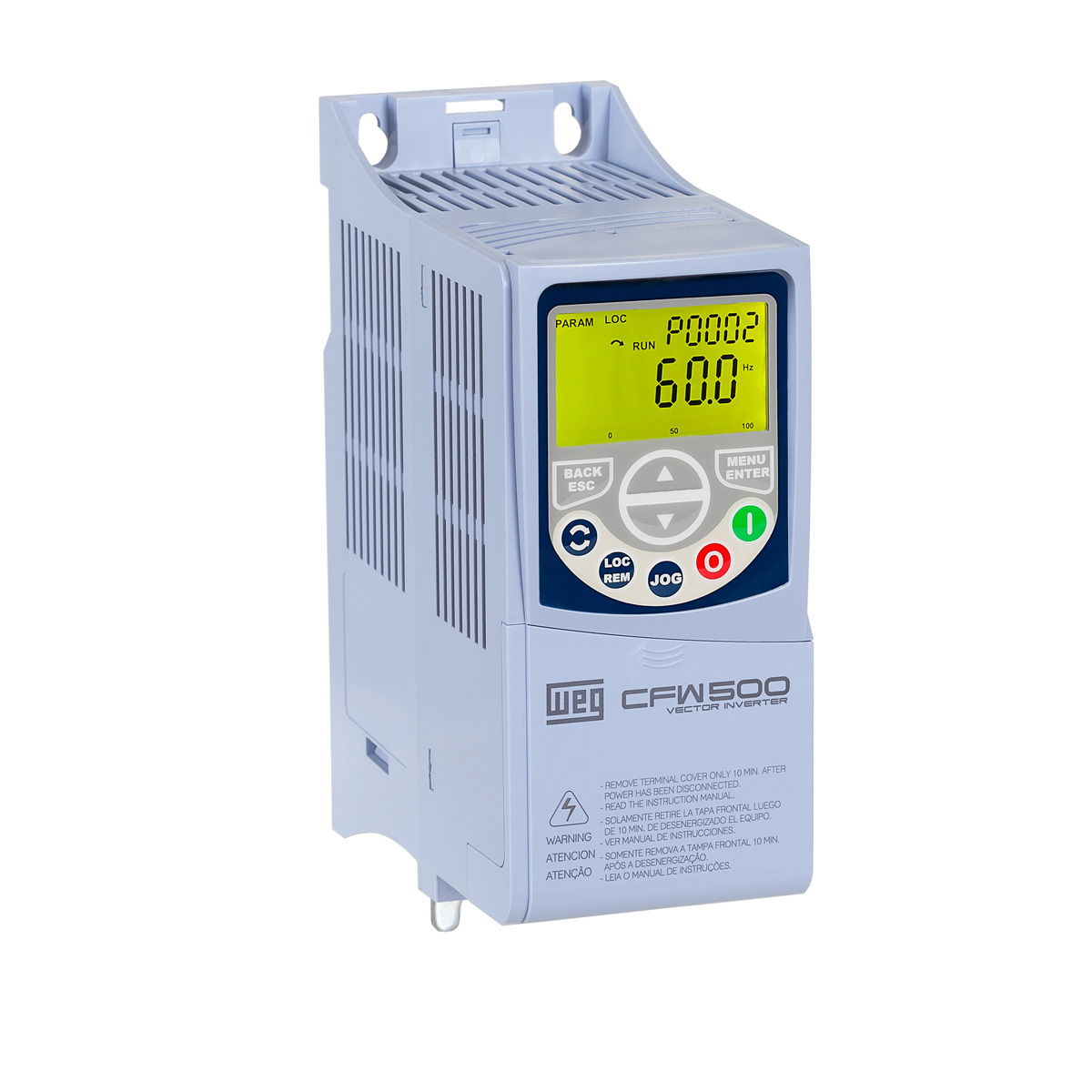

CFW500A02P6T4NB20G2

DRIVE CFW500A02P6T4NB20G2

WEG

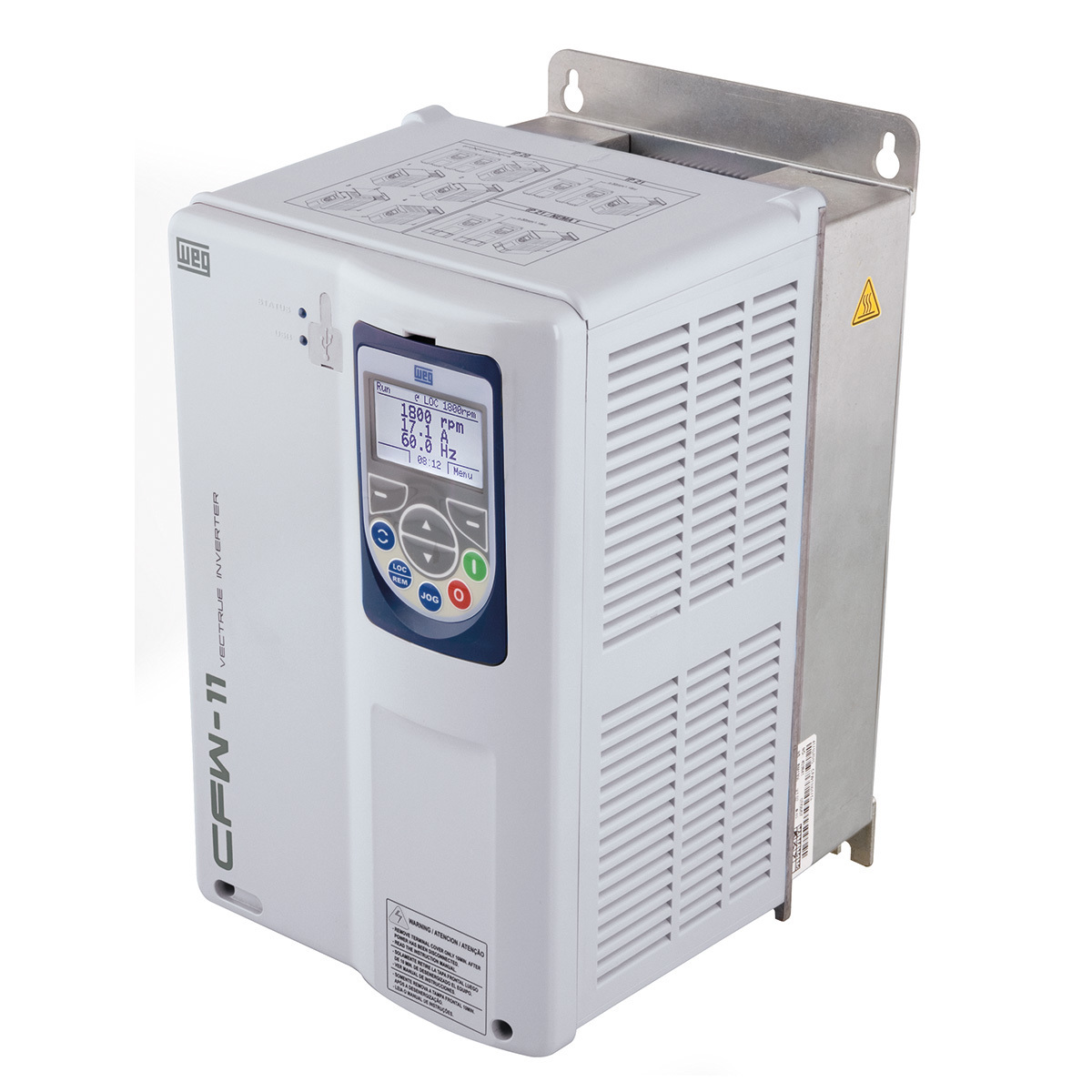

CFW110024T2ON1Z-PGS

DRIVE CFW110024T2ON1Z-PGS

WEG

CFW500D47P0T2DB20G2

DRIVE CFW500D47P0T2DB20G2

WEG

EDP11S038GN1201000

STANDARD PANEL EDP11S038GN1201000

WEG
