Variable Frequency Drives (VFD)

UMI-0370CU-B5

UMI-0370CU-B5 Unitronics - Limited Availability. If Not Available Use UMI-0370CU-B7

Unitronics

M000-11502850DU0100AB100

NIDEC M000-11502850DU0100AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M000 series designed for heavy-duty applications. It features a built-in brake transistor and a built-in DC to AC inverter with air cooling. The device has dimensions of frame size 11D, measuring H31.7" x W12.2" x D12.3" (H804mm x W310mm x D312mm). It operates with a rated current of 285A and supports a supply voltage range of 500Vac-575Vac. This model is equipped with an IP20 NEMA 1 degree of protection and is designed to work with a network frequency of 50 Hz. It offers a rated active power range of 90kW-250kW and a rated power range of 125HP-400HP, suitable for heavy-duty operations.

Nidec

ATV71HD18N4383

Schneider Electric ATV71HD18N4383 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series designed for synchronous motor control. It features a built-in DC choke, EMC filter, and heatsink, offering variable speed/frequency drive capabilities with U/F ratio (2 points / 5 points), sensorless flux vector control, ENA System, and vector control with or without speed feedback. This model can deliver 220% of the nominal motor torque for 2 seconds and 170% of the nominal motor torque for 60 seconds. It operates on a supply voltage of 323-528Vac (380Vac / 400Vac / 480Vac / 500Vac nom.) and has dimensions of H400mm x W230mm x D213mm. The ATV71HD18N4383 is designed for wall mounting and has a degree of protection of IP20, IP21, and UL type 1. It supports Modbus and CANopen communication protocols and is compatible with a 3-phase (3P) network, offering an output frequency range of 0.1-599 Hz. The drive includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) programmable as LI1-LI5, 1 digital input programmable as discrete or PTC input, and 1 PWR safety input, along with 1 digital output (C/O SPDT relay contact) and 2 digital outputs (NO relay contacts). It also features 1 analog input (-10...+10Vdc) and 1 analog input (0-10Vdc / 0-20mA). The rated current is 41A at 380Vac (4kHz), 34A at 460Vac (4kHz), with a maximum current of 67.7A for 2 seconds and 61.5A for 60 seconds. The current consumption is 45.5A at 380Vac and 37.5A at 480Vac, with a rated active power of 18.5kW and rated power of 25HP.

Schneider Electric

EDP11S242GN3R10000

STANDARD PANEL EDP11S242GN3R10000

WEG

HVW701E211T4N12-I-C

WEG HVW701E211T4N12-I-C - STANDARD PANEL HVW701E211T4N12-I-C, HVAC Enclosed Drives (HVW)

WEG

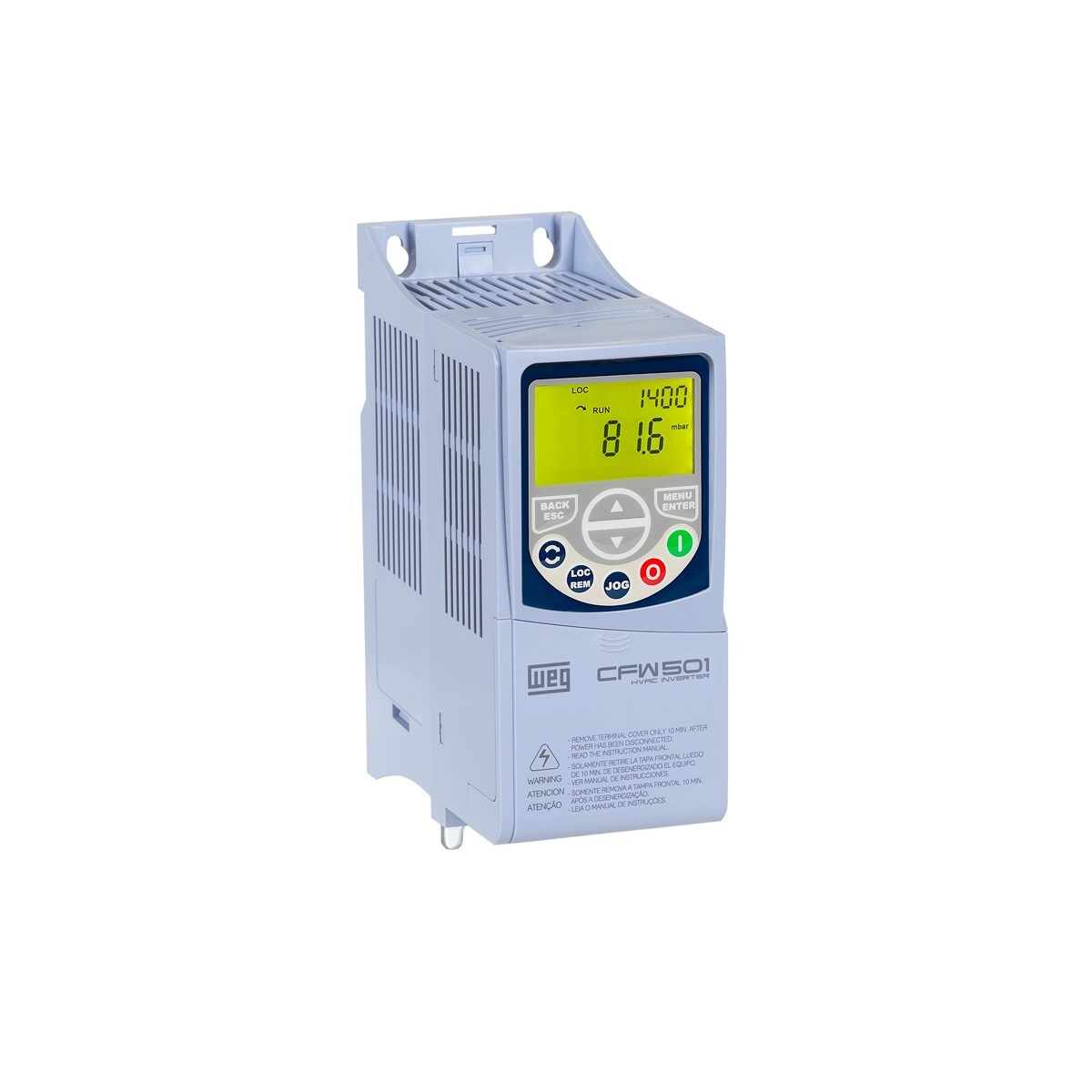

CFW501A09P6T2NB20C3

DRIVE CFW501A09P6T2NB20C3

WEG

CFW700B33P5T2DBN1

WEG CFW700B33P5T2DBN1 - DRIVE CFW700B33P5T2DBN1, CFW500/700 Drives

WEG

UMI-0300CU-B7

UMI-0300CU-B7 Unitronics - Unitronics VFD - B7 Series, 200-240V, 3 Phase, 30kW, 40HP, STO included

Unitronics

M600-10203000E10101AN100

NIDEC M600-10203000E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed for variable speed control with a single Safe Torque Off (STO) and requires an external choke with air cooling. It features dimensions of frame size 10E, measuring H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm), and supports RS-485 Modbus RTU communication protocol. The drive operates with a rated current of 360A under normal duty and 300A under heavy-duty conditions, and it is designed for a supply voltage of 200Vac-240Vac (220Vac / 230Vac). It can function in ambient air temperatures ranging from -20°C to +40°C and has a degree of protection of IP20 NEMA 1. This model is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It includes 2 x analog outputs, 3 x digital inputs, 3 x digital outputs plus 1 x relay contact type digital output, and multiple analog inputs with varying specifications. The rated active power is 110kW for normal duty and 90kW for heavy-duty, corresponding to 150HP and 125HP, respectively.

Nidec

M600-10601780E10101AN100

NIDEC M600-10601780E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed for variable speed control with a single Safe Torque Off (STO) and requires an external choke for air cooling. It features dimensions of frame size 10E, measuring H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 197A under normal duty and 178A under heavy-duty conditions. It is designed for a supply voltage of 500Vac-690Vac (600Vac) and can function within an ambient air temperature range of -20°C to +40°C. The drive offers an IP20 NEMA 1 degree of protection and is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It includes 2 analog outputs, 6 digital inputs, 4 digital outputs, and 3 analog inputs with varying specifications for resolution and type. The rated active power is 185kW for normal duty and 160kW for heavy-duty, equivalent to 250HP and 200HP respectively.

Nidec

HVW701A005T4N01-X-X

WEG HVW701A005T4N01-X-X - STANDARD PANEL HVW701A005T4N01-X-X, HVAC Enclosed Drives (HVW)

WEG

HS30-02400023A10101AB100

NIDEC HS30-02400023A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS30 series designed for high-speed applications with a rated frequency output of 0-3000Hz (open loop). It features a built-in brake transistor, dual Safe Torque Off (STO), and utilizes air cooling for temperature management. The device has dimensions of frame size 2, measuring H8.1" x W3.1" x D5.9" (H205mm x W78mm x D150mm). It supports multiple communication protocols including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. The rated current is 2.3A for both Normal and Heavy-duty operations, with a supply voltage range of 380Vac-480Vac (400Vac / 415Vac). It operates within an ambient air temperature range of -20°C to +55°C and has a degree of protection rated at IP20 NEMA 1. The network type is a 3-phase input (3P) with a supply input frequency of 45-66 Hz and an output frequency of 0-3000 Hz. The device includes 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs plus 1 additional digital input (0-24Vdc), 1 x digital output (100mA / 0-24Vdc; PWM; source) and 1 x digital output (2A / 240Vac; source; relay contact type), along with 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit; can be used as a digital input). It has a rated active power of 0.75kW and a rated power of 1HP for both Normal and Heavy-duty applications.

Nidec

H300-06500430A10101AB103

NIDEC H300-06500430A10101AB103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the H300 series designed with a built-in brake transistor, internal line choke, and air cooling. It features dimensions of frame size 6, measuring H15.4" x W8.3" x D8.9" (H391mm x W210mm x D227mm). This model supports Modbus RTU communication protocol and operates with a rated current of 43A under normal duty conditions. It is designed for a supply voltage range of 500Vac-575Vac and can function within an ambient air temperature range of -20°C to +40°C. The device offers a degree of protection rated at IP20, NEMA 1, UL type 1, and is suitable for a 3-phase input network with a supply input frequency of 60 Hz. It includes 2 analog outputs, 6 digital inputs (3 of which are configurable), and 1 additional digital input ranging from 0-24Vdc, alongside 2 digital outputs of relay contact type. Additionally, it features 1 analog input for 4-20mA and another for 0-10Vdc. The rated active power is 30kW under normal duty, equivalent to 40HP.

Nidec

I55AE230F10V11000S

Lenze I55AE230F10V11000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control with additional features including compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It is equipped with a built-in RFI filter, standard I.O. conformal coating, and lacks a communication interface. The protection functions cover overvoltage category, leakage current, earth fault resistance, and overtemperature of the motor. It supports rated currents of 8.8A for light-duty at 400Vac, 7.6A for light-duty at 480Vac, 7.3A for heavy-duty at 400Vac, and 6.3A for heavy-duty at 480Vac. The supply voltage is rated for 400Vac / 480Vac, suitable for control cabinet or surface/wall mounting. The operational ambient air temperature ranges up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with a degree of protection of IP20. It operates on a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 analog output (0-10Vdc; 0-20mA or 4-20mA), 5 digital inputs (PNP/NPN logic), 1 digital output (max. 100mA), and 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 4kW for light-duty and 3kW for heavy-duty, both at 400-480Vac, translating to a rated power of 5HP for light-duty and 4HP for heavy-duty, respectively.

Lenze

EDP11S601GN1211000

STANDARD PANEL EDP11S601GN1211000

WEG

HVW701B024T2N01-I-X

WEG HVW701B024T2N01-I-X - STANDARD PANEL HVW701B024T2N01-I-X, HVAC Enclosed Drives (HVW)

WEG

VLB30150A480

VLB30150A480 Lovato - Variable speed drive, VLB3... type, three-phase supply 400-480VAC 50/60Hz. EMC suppressor built-in, Cat. C2, 15kW

Lovato Electric

M702-09201760E10101AB100

NIDEC M702-09201760E10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor, dual Safe Torque Off (STO), and requires an external choke with air cooling for operation. It features dimensions of frame size 9E, measuring H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm). This model supports various communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 216A under normal duty and 176A under heavy-duty conditions, and it is designed for a supply voltage of 200Vac-240Vac (220Vac / 230Vac). The ambient air temperature for operation ranges from -20°C to +40°C, and it offers a degree of protection of IP20, NEMA 1, UL open. The M702 is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency of 0-599 Hz. It includes 2 x digital inputs (0-24Vdc), with terminal 8 configurable as a motor protection thermistor, and 2 x digital outputs (100mA / 0-24Vdc; source) plus 1 x digital output (2A / 240Vac; source; relay contact type). The rated active power is 55kW under normal duty and 45kW under heavy-duty, equivalent to 75HP and 60HP respectively.

Nidec

ESV153N06TMD

ESV153N06TMD Lenze Variable Frequency Drive (VFD) - The SMV 20.0 hp (15.0 kW) drive features a 480 / 600 VAC 3Ø input with input disconnect in a fan cooled NEMA 4X (IP65) indoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated l

Lenze

CFW110211T2ON1Z

DRIVE CFW110211T2ON1Z

WEG
