Variable Frequency Drives (VFD)

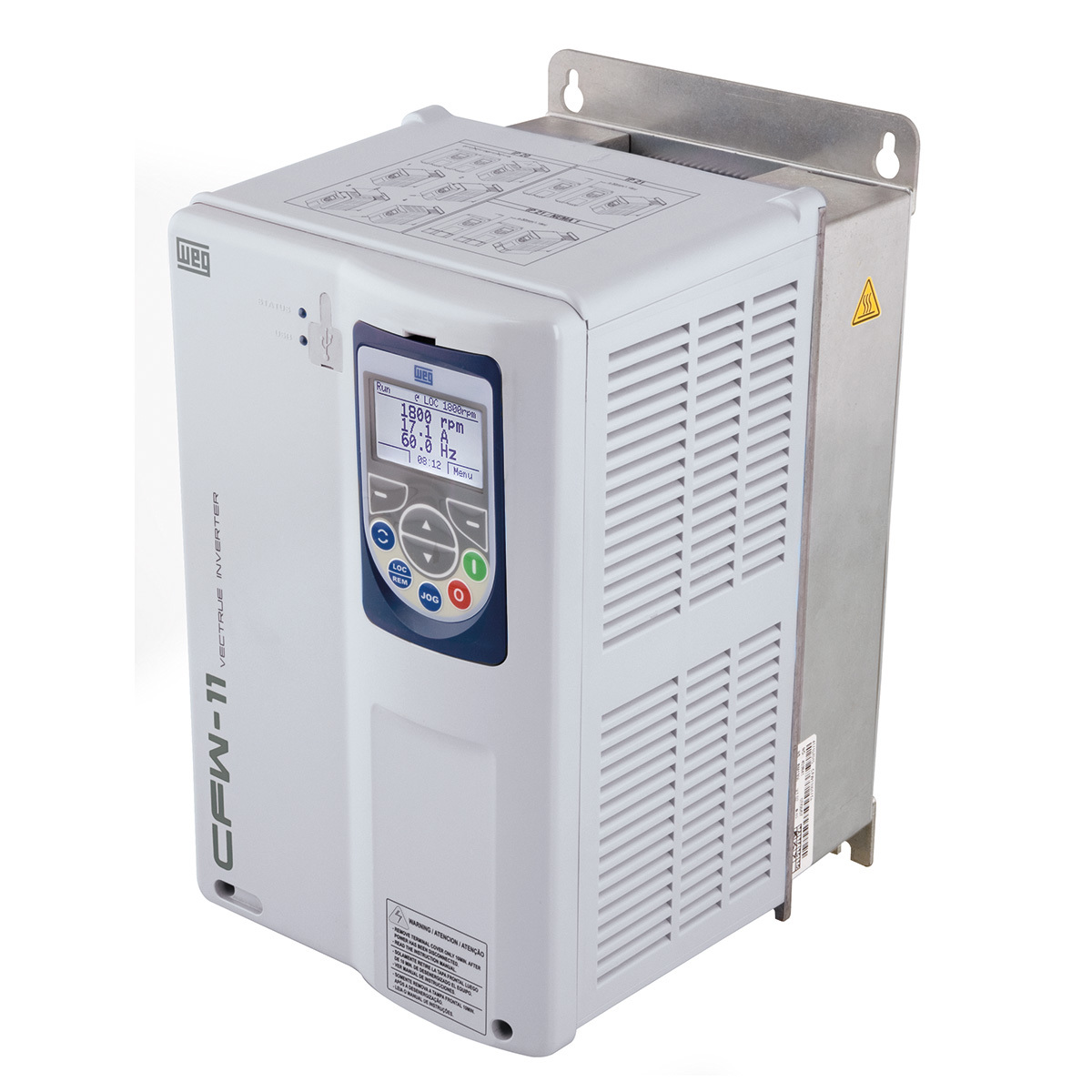

CFW110013T2ON1Z

DRIVE CFW110013T2ON1Z

WEG

HVW701B028DN01200001

WEG HVW701B028DN01200001 - STANDARD PANEL HVW701B028DN01200001, HVAC Enclosed Drives (HVW)

WEG

EDP11S003GN3R

STANDARD PANEL EDP11S003GN3R

WEG

M600-07500440A10101AB100

NIDEC M600-07500440A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed with a built-in brake transistor and a single Safe Torque Off (STO) feature, utilizing air cooling. It has dimensions of frame size 7, measuring H20" x W10.63" x D11.02" (H508mm x W270mm x D280mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 53A under normal duty and 44A under heavy-duty conditions. It is designed for a supply voltage of 500Vac-575Vac and can function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20 NEMA 1 degree of protection and is compatible with a 3-phase input network, supporting a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It features 2 x analog outputs (-10...+10Vdc; single-ended; source; 10-bit conversion resolution), 6 x digital inputs (0-24Vdc), 4 x digital outputs (including one 2A / 240Vac relay contact type), and 3 x analog inputs with varying specifications and 11-bit conversion resolution. The rated active power is 45kW for normal duty and 30kW for heavy-duty, corresponding to 50HP and 40HP, respectively.

Nidec

HVW701E180T2N12-J-A

WEG HVW701E180T2N12-J-A - STANDARD PANEL HVW701E180T2N12-J-A, HVAC Enclosed Drives (HVW)

WEG

EDP11S045DN3R10000

STANDARD PANEL EDP11S045DN3R10000

WEG

CFW110028T2ON1Z

DRIVE CFW110028T2ON1Z

WEG

HS70-03400100A10101AB100

NIDEC HS70-03400100A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS70 series designed for variable speed/frequency control with rated frequency outputs of 0-3000Hz in open loop and 0-1250Hz in closed loop applications. It features a built-in brake transistor and a single Safe Torque Off (STO) function, suitable for high-speed applications, and utilizes air cooling for temperature management. The device has dimensions of frame size 3, measuring H15" x W3.3" x D7.9" (H382mm x W83mm x D200mm), and supports Ethernet communication protocol. It operates with a rated current of 12.3A under normal duty and 10A under heavy-duty conditions, requiring a supply voltage of 380Vac-480Vac (specifically 400Vac / 415Vac). The inverter can function in ambient air temperatures ranging from -20°C to +40°C and has a degree of protection rated at IP20 NEMA 1 UL open. It is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and can output frequencies up to 3000 Hz. The device includes 2 analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 6 digital inputs (0-24Vdc), 4 digital outputs (including one 2A / 240Vac; source; relay contact type), and 3 analog inputs with up to 11-bit conversion resolution. It has a rated active power of 5.5kW under normal duty and 4kW under heavy-duty, equivalent to 7.5HP / 7-1/2HP and 5HP respectively.

Nidec

I55AE211D10V01000S

Lenze I55AE211D10V01000S is a variable speed/frequency drive (VSD/VFD) and compact inverter designed for a wide range of applications. It features DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, a flying restart circuit, and a PID controller. The design includes a standard I.O. with conformal coating and dimensions of H250mm x W60mm x D130mm. This model does not have a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 6A for heavy-duty applications at 230-240Vac and supports both single-phase and three-phase networks with a supply voltage of 230Vac / 240Vac. The mounting mode is suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation varies with the switching frequency, allowing a maximum of 45°C at 2kHz or 4kHz and 40°C at 8kHz or 16kHz. It has an IP20 degree of protection and operates on a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The inverter includes 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs. It has a rated active power of 1.1kW and a rated power of 1-1/2HP for heavy-duty applications at 230-240Vac.

Lenze

HVW701C045T4N01-J-B

WEG HVW701C045T4N01-J-B - STANDARD PANEL HVW701C045T4N01-J-B, HVAC Enclosed Drives (HVW)

WEG

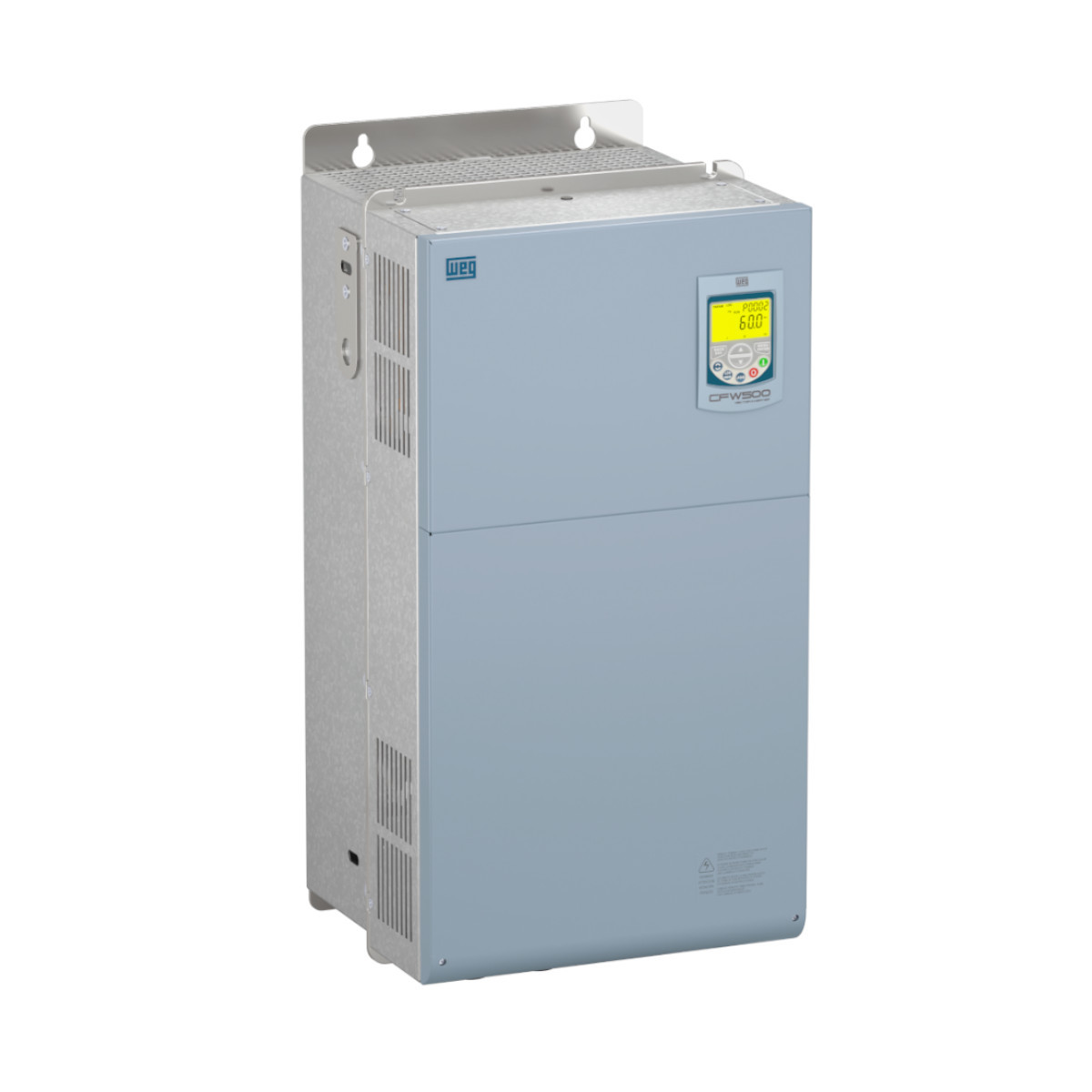

CFW500G0211T4DB20G2

DRIVE CFW500G0211T4DB20G2

WEG

I5DAE315F10V10000S

Lenze I5DAE315F10V10000S is a variable speed/frequency drive (VSD/VFD) or inverter within the Power units sub-range, designed for control cabinet or surface/wall mounting. This inverter power unit features a built-in RFI filter and operates without a communication interface. It is equipped with protection functions including overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. The rated current specifications are 38.4A for light-duty at 400Vac, 32.4A for light-duty at 480Vac, 32A for heavy-duty at 400Vac, and 27A for heavy-duty at 480Vac. It supports a supply voltage of 400Vac / 480Vac, operates on a 3-phase (3P / 3AC) network, and offers a degree of protection of IP20. The rated active power is 15kW for heavy-duty applications within a 400-480Vac range, and the rated power is 20HP for heavy-duty applications within the same voltage range.

Lenze

HVW701E105GN01200000

WEG HVW701E105GN01200000 - STANDARD PANEL HVW701E105GN01200000, HVAC Enclosed Drives (HVW)

WEG

HVW701C038T4N01-J-A

WEG HVW701C038T4N01-J-A - STANDARD PANEL HVW701C038T4N01-J-A, HVAC Enclosed Drives (HVW)

WEG

I55AE137F1AV11002S

Lenze I55AE137F1AV11002S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H155mm x W60mm x D130mm. The communication protocol supported is CANopen, with protection functions including overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. It has a rated current of 1.3A for heavy-duty applications at 400-480Vac, with a supply voltage of 400Vac / 480Vac. The mounting mode is suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation varies with the switching frequency, allowing a maximum of 45°C at 2kHz or 4kHz and 40°C at 8kHz or 16kHz. It has an IP20 degree of protection, operates on a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), multiple digital inputs with PNP/NPN logic, 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.37kW, and the rated power is 1/2HP for heavy-duty applications at 400-480Vac.

Lenze

I51AE311F10V11000S

Lenze I51AE311F10V11000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for variable speed and frequency control with additional features including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It is equipped with a built-in RFI filter, basic I.O., and conformal coating but does not include a communication interface. The device offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It supports a rated current of 23.5A for heavy-duty operations at 400Vac and 21A at 480Vac, with a supply voltage of 400Vac / 480Vac. Designed for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network is 3-phase (3P / 3AC) with an input frequency of 45-65 Hz and an output frequency of 0-599 Hz. It features 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs. The rated active power is 15kW for light-duty and 11kW for heavy-duty operations at 400-480Vac, corresponding to 20HP and 15HP respectively.

Lenze

M15100E

Lenze M15100E is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with a water-tight and dust-tight corrosion-resistant stainless steel housing. It supports Modbus communication protocol and is equipped with thermal overload protection and solid state motor overload protection. The device operates at a rated current of 11A for supply voltages of 480Vac / 590Vac and is suitable for control cabinet or surface/wall mounting. It can function within an ambient air temperature range of -10 to +40°C and offers a degree of protection of NEMA 4X. The M15100E is designed for a 3-phase network, with an input frequency of 48-62 Hz and an output frequency of 0-120 Hz. It features 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs, 1 digital input for start, 1 digital input for stop, and 2 digital outputs (NPN; sinking). Additionally, it includes 1 analog input for 0-10Vdc and 1 analog input for 4-20mA. The rated active power is 7.5kW, and the rated power is 10HP for both 480Vac and 590Vac.

Lenze

M600-10402700E10101AB100

NIDEC M600-10402700E10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed with a built-in brake transistor, single Safe Torque Off (STO), and requires an external choke with air cooling for operation. It features dimensions of frame size 10E, measuring H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 320A under normal duty and 270A under heavy-duty conditions. It is designed for a supply voltage of 380Vac-480Vac (specifically 400Vac / 415Vac) and can function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20 NEMA 1 degree of protection and is suitable for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. It includes 2 analog outputs, 6 digital inputs, 4 digital outputs, and 3 analog inputs with varying specifications detailed in the description. The rated active power is 160kW for normal duty and 132kW for heavy-duty, corresponding to 250HP and 200HP, respectively.

Nidec

I55AE175A10V01000S

Lenze i55AE175A10V01000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a standard I.O. with conformal coating, dimensions of H250mm x W60mm x D130mm, and lacks a communication interface. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 4.2A for heavy-duty applications at 120Vac, with a supply voltage of 120Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range, with a maximum of 45°C at a switching frequency of 2kHz or 4kHz, and 40°C at 8kHz or 16kHz. The drive is IP20 protected, designed for single-phase networks with an input frequency of 45-65 Hz and an output frequency of 0-599 Hz. It includes 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs, supporting both voltage and current inputs and outputs. The rated active power is 0.75kW, and the rated power is 1HP for heavy-duty applications at 120Vac.

Lenze

VFD015C4EA-21

Variable Frequency Drive, 3 phase, 460 VAC build-in EMI Input, 2 HP, frame A, wall mount, IP20, NEMA 1

Delta
