Variable Frequency Drives (VFD)

HS30-04200133A10101AB100

NIDEC HS30-04200133A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) from the HS30 series designed for high-speed applications with a rated frequency output of 0-3000Hz (open loop). It features a built-in brake transistor and dual Safe Torque Off (STO) with air cooling. The dimensions are frame size 4, measuring H10.9" x W4.5" x D6.9" (H277mm x W115mm x D175mm). This model supports multiple communication protocols, including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. It has a rated current of 13.3A for both Normal and Heavy-duty operations and operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac). The ambient air temperature for operation ranges from -20°C to +55°C, with a degree of protection of IP20 NEMA 1. It can be connected to a single-phase input (2P) or 3-phase input (3P) network with a supply input frequency of 45-66 Hz and an output frequency of 0-3000 Hz. The device includes 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs plus 1 additional digital input (0-24Vdc), 1 x digital output (100mA / 0-24Vdc; PWM; source) and 1 x digital output (2A / 240Vac; source; relay contact type), along with 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit; can be used as a digital input). It has a rated active power and power in HP of 3kW/3HP for both Normal and Heavy-duty operations.

Nidec

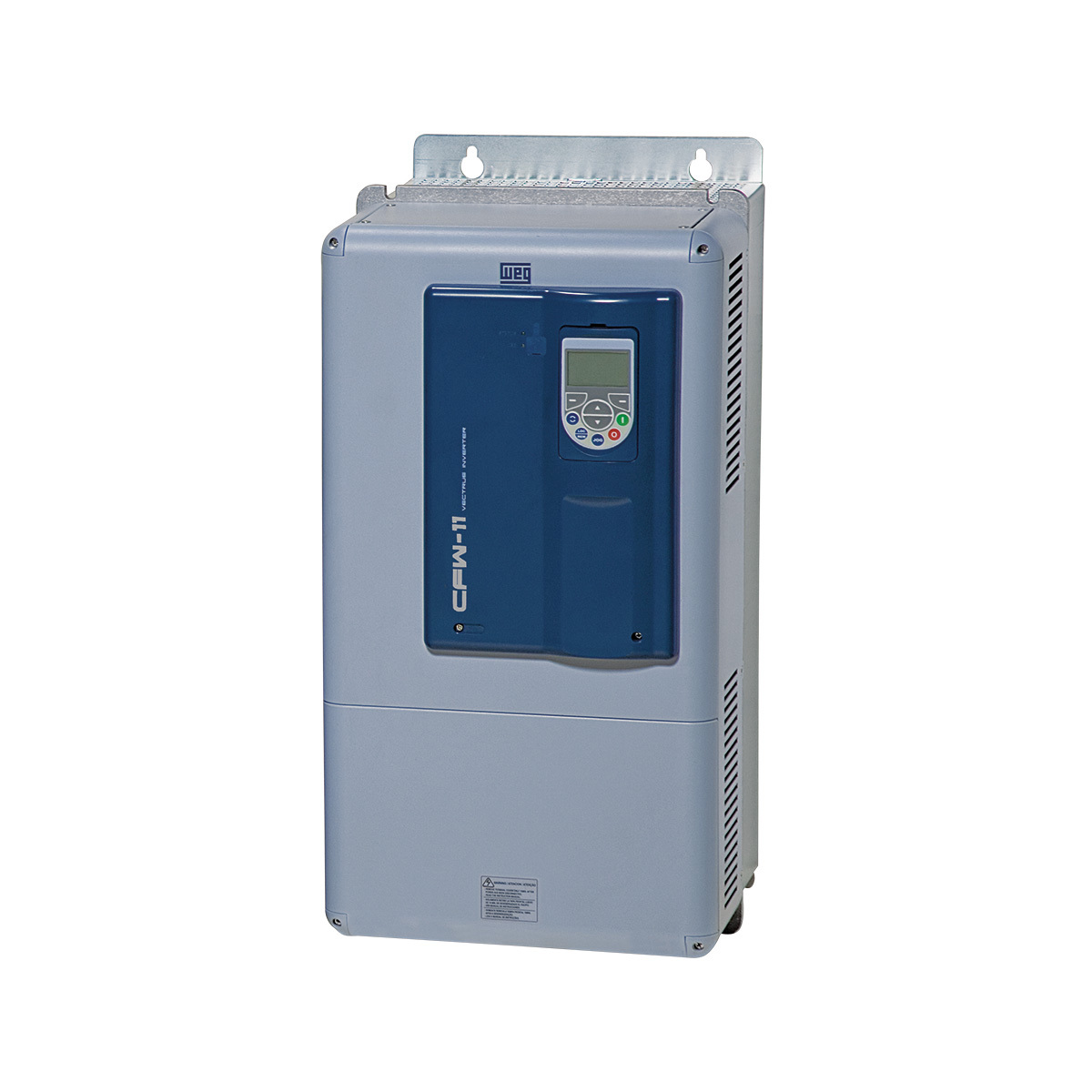

CFW110211T4ON1DBZ

DRIVE CFW110211T4ON1DBZ

WEG

CFW110053T6ON1NBYZ

DRIVE CFW110053T6ON1NBYZ

WEG

ACS35503U31A02J404

MACHINERY DRIVE, 10 HP, 31 A, 240 VAC, Voltage Range: 200-240V, UL TYPE OPEN (IP20), Cabinet-mounted, Basic Panel, 3-Phase Input, 3-Phase Output, Frame: R4

ABB Control

M000-09402240AU0100AN100

NIDEC M000-09402240AU0100AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter, part of the M000 series, designed for heavy-duty applications. It features an internal line choke with air cooling and comes in a frame size 9A with dimensions of H41.3" x W12.2" x D11.4" (H1049mm x W310mm x D290mm). The rated current is 224A for heavy-duty operations. This model operates on a supply voltage of 380Vac-480Vac (400Vac / 415Vac) and is designed to work with a network frequency of 50 Hz. It offers a degree of protection of IP20 NEMA 1. The rated active power ranges from 90kW to 110kW, and the rated power is between 125HP and 150HP for heavy-duty tasks.

Nidec

I55AE211F10V11000S

Lenze I55AE211F10V11000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a built-in RFI filter, standard I.O., and conformal coating. The dimensions are H250mm x W60mm x D130mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It supports a rated current of 3.2A for 400Vac and 3A for 480Vac, with a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output (0-10Vdc; 0-20mA or 4-20mA), 5 digital inputs (PNP/NPN logic), 1 digital output (max. 100mA), and 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 1.1kW for 400-480Vac, and the rated power is 1-1/2HP for 400-480Vac.

Lenze

F600-03200110A10101AB103

NIDEC F600-03200110A10101AB103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for 3-phase input with a supply voltage range of 200Vac-240Vac, specifically 220Vac or 230Vac, and operates efficiently with a 60 Hz network frequency. It features a built-in brake transistor, an internal line choke, and utilizes air cooling for temperature management, ensuring operation within an ambient air temperature range of -20°C to +40°C. This model is protected by an IP20 enclosure and has dimensions of frame size 3, measuring H15" x W3.3" x D7.9" (H382mm x W83mm x D200mm). It offers a variety of inputs and outputs, including 1 x analog input (4-20mA / 0-10Vdc; single-ended), 1 x analog output (0-10Vdc), 3 x digital inputs (24Vdc and 0-24Vdc; configurable), and 2 x digital outputs (240Vac; relay contact type). The F600 series drive supports Modbus RTU communication protocol, has a rated current of 11A for normal duty operations, and delivers a rated active power of 2.2kW or 3HP under normal duty conditions.

Nidec

I55AE125B10V1100KS

Lenze I55AE125B10V1100KS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionalities. It features a built-in RFI filter, standard I.O., and conformal coating, with dimensions of H155mm x W60mm x D130mm. This model supports EtherCAT communication protocol and includes protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 1.7A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network type is single-phase / 1P, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.25kW, and the rated power is 1/3HP for heavy-duty applications at 230-240Vac.

Lenze

SP3403-HF

NIDEC SP3403-HF is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for high frequency applications up to 3000Hz max. in an open-loop configuration with a single Safe Torque Off (STO) and air cooling. It features a frame size 3 with dimensions of H15.32" x W9.84" x D10.23" (H389mm x W250mm x D260mm), and operates on a supply voltage of 380Vac-480Vac (400Vac / 415Vac). The rated current is 56A under normal duty and 46A under heavy-duty conditions. This wall-mounted unit is designed to operate within an ambient air temperature range of 0°C to +40°C and has a degree of protection rated at IP20 NEMA 1. It supports Modbus RTU RS-485 communication protocol and has a network frequency of 48-65 Hz on the supply input and 0-3000 Hz on the output. The SP3403-HF includes 3 digital outputs (0-24Vdc; source), 1 digital output (2A / 240Vac; source; relay contact type), 3 digital inputs (0-24Vdc), and 3 additional digital inputs (0-24Vdc). Analog interface comprises 1 analog input (-9.8Vdc...9.8Vdc; differential) and 2 analog inputs (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; single-ended), along with 2 analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source). The rated active power is 30kW for normal duty and 22kW for heavy-duty, corresponding to 40HP and 30HP respectively.

Nidec

ESV223N04TFF

ESV223N04TFF Lenze Variable Frequency Drive (VFD) - The SMV 30.0 hp (22.0 kW) drive features a 400 / 480 VAC 3Ø filtered input in a fan cooled NEMA 4X (IP65) indoor/outdoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated line

Lenze

I55AE175A10V0100LS

Lenze I55AE175A10V0100LS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a standard I.O. with conformal coating, dimensions of H250mm x W60mm x D130mm, and supports PROFINET communication protocol. The drive offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 4.2A for heavy-duty applications at 120Vac, with a supply voltage of 120Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz, with an IP20 degree of protection. The network type is single-phase / 1P, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 analog output (0-10Vdc; 0-20mA or 4-20mA), 5 digital inputs (PNP/NPN logic), 1 digital output (max. 100mA), and 2 analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.75kW, and the rated power is 1HP for heavy-duty applications at 120Vac.

Lenze

UMI-1100FU-B7

UMI-1100FU-B7 Unitronics - Unitronics VFD - B7 Series, 520-600V, 3 Phase, 110kW, 150HP, STO included

Unitronics

M702-03400062A10101AB100

NIDEC M702-03400062A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M702 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 3, measuring H14.37" x W3.27" x D7.87" (H365mm x W83mm x D200mm). This model supports multiple communication protocols including Ethernet, Ethernet/IP, Modbus TCP, and PROFINET RT. It operates with a rated current of 7.7A under normal duty and 6.2A under heavy-duty conditions. The supply voltage required is 380Vac-480Vac (400Vac / 415Vac), and it can function within an ambient air temperature range of -20°C to +40°C. The degree of protection offered is IP20, NEMA 1, UL open. It is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. The device includes 2 x digital inputs (0-24Vdc, with terminal 8 configurable as a motor protection thermistor) and 3 x digital outputs (2 x 100mA / 0-24Vdc source and 1 x 2A / 240Vac source, relay contact type). Its rated active power is 3kW under normal duty and 2.2kW under heavy-duty, corresponding to a rated power of 5HP and 3HP, respectively.

Nidec

M701-09601310A10101AB100

NIDEC M701-09601310A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M701 series designed with a built-in brake transistor and a single Safe Torque Off (STO) feature, utilizing air cooling. It has dimensions of frame size 9A, measuring H41.3" x W12.21" x D11.42" (H1049mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 155A under normal duty and 131A under heavy-duty conditions. It is designed for a supply voltage of 500Vac-690Vac (600Vac) and can function in ambient air temperatures ranging from -20°C to +40°C. The device offers an IP20 NEMA 1 UL open degree of protection and is compatible with a 3-phase input (3P) network, supporting a supply input frequency of 45-66 Hz and an output frequency of 0-599 Hz. It features 2 x analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 6 x digital inputs (0-24Vdc), 4 x digital outputs (0-24Vdc; source and 2A / 240Vac; source; relay contact type), and 3 x analog inputs (1 x differential and 2 x single-ended; 0-20mA / 4-20mA / -10...+10Vdc; 11-bit conversion resolution). The rated active power is 132kW for normal duty and 110kW for heavy-duty, with corresponding rated power of 175HP and 150HP, respectively.

Nidec

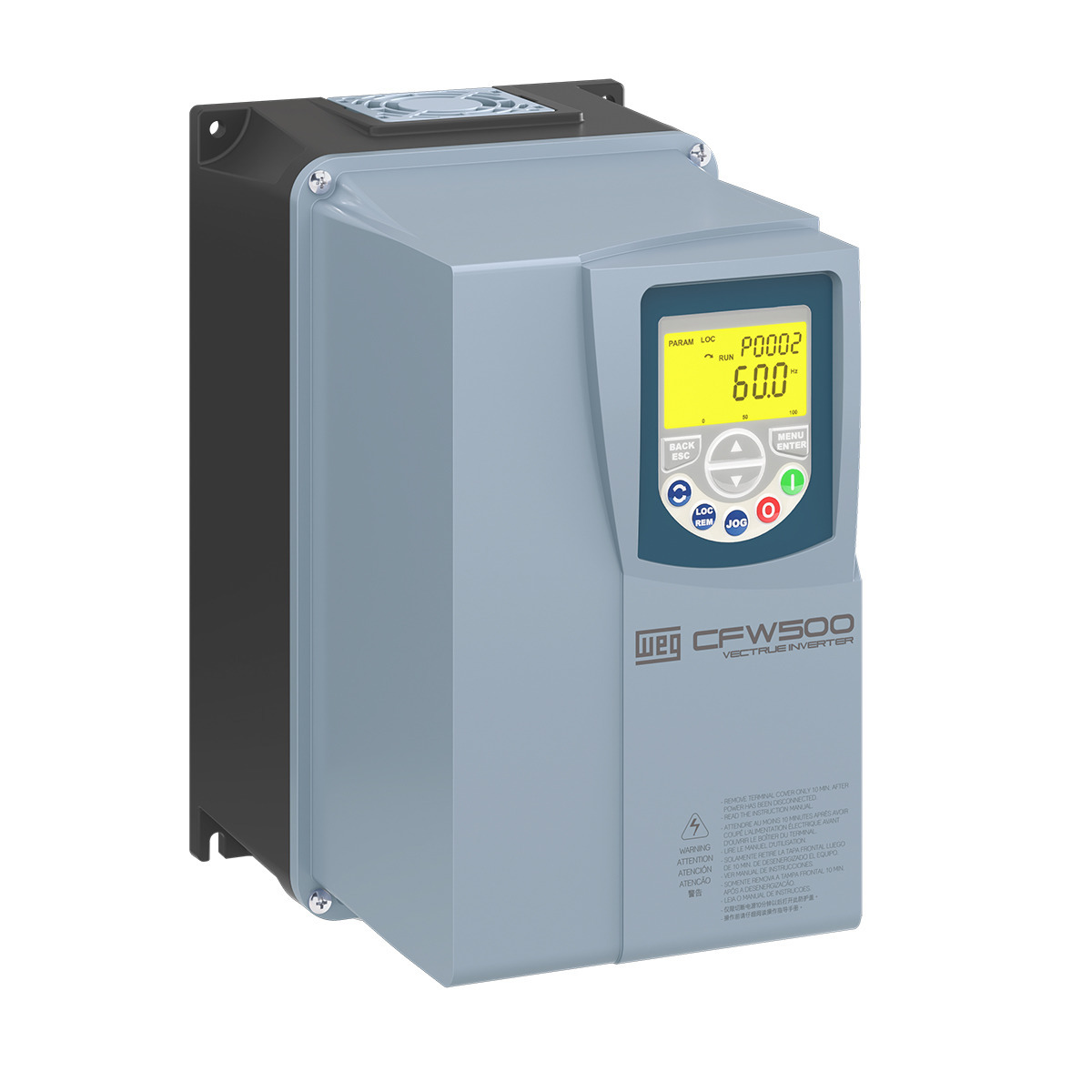

CFW500A02P6T4DB66G2

DRIVE CFW500A02P6T4DB66G2

WEG

CFW110063T6ON1YZ

DRIVE CFW110063T6ON1YZ

WEG

C200-08201160A10101AB100

NIDEC C200-08201160A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the C200 series, designed with air cooling. It operates on a supply voltage of 200Vac-240Vac (220Vac / 230Vac) and has dimensions of frame size 8 H31.65" x W12.21" x D11.42" (H804mm x W310mm x D290mm). This model offers a degree of protection of IP20 NEMA 1 and supports a rated current of 149A for Normal duty and 116A for Heavy-duty applications. It utilizes the Modbus RTU communication protocol over a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency range of 0-550 Hz. The ambient air temperature for operation ranges from -20°C to +60°C. It features 1 x analog output (10Vdc; source; single-ended), 5 x digital inputs (0-24Vdc; PNP/NPN) plus 1 x digital input (0-24Vdc), and 1 x digital output (50mA / 0-24Vdc; source; PWM) plus 1 x digital output (2A / 240Vac; source; relay contact type). Additionally, it includes 1 x analog input (0-20mA / 4-20mA / 0-10Vdc; single-ended; 11-bit conversion resolution) and 1 x analog input (0-10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 37kW for Normal duty and 30kW for Heavy-duty, with a rated power of 50HP for Normal duty and 40HP for Heavy-duty.

Nidec

HVW701E180T2N12-J-C

WEG HVW701E180T2N12-J-C - STANDARD PANEL HVW701E180T2N12-J-C, HVAC Enclosed Drives (HVW)

WEG

I55AE215F1AV11002S

Lenze I55AE215F1AV11002S is a variable speed/frequency drive (VSD/VFD) and inverter within the Drives sub-range, designed for compact inverter applications including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H250mm x W60mm x D130mm. The communication protocol supported is CANopen, with protection functions against overvoltage category, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 3.9A for heavy-duty applications at 400Vac and 3.5A at 480Vac, with a supply voltage of 400Vac / 480Vac. The mounting mode is suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation is up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with a degree of protection of IP20. It operates on a 3-phase network (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 analog output, 5 digital inputs with options for frequency or encoder input, 1 digital output, and 2 analog inputs that can be optionally used as voltage or current input. It has a rated active power of 1.5kW and rated power of 2HP for heavy-duty applications at 400-480Vac.

Lenze

VFD015C4EA-21

Variable Frequency Drive, 3 phase, 460 VAC build-in EMI Input, 2 HP, frame A, wall mount, IP20, NEMA 1

Delta
