Variable Frequency Drives (VFD)

VT104A240

VT104A240 Lovato - Variable speed drive, VT1 type, single-phase, supply 200...240VAC (50/60Hz). Built-in RS485 communication port. Built-in EMC suppressor, Cat. C2, 0.4kW

Lovato Electric

EDP11S105DN3R01000

STANDARD PANEL EDP11S105DN3R01000

WEG

HVW701C058T4N01-I-B

WEG HVW701C058T4N01-I-B - STANDARD PANEL HVW701C058T4N01-I-B, HVAC Enclosed Drives (HVW)

WEG

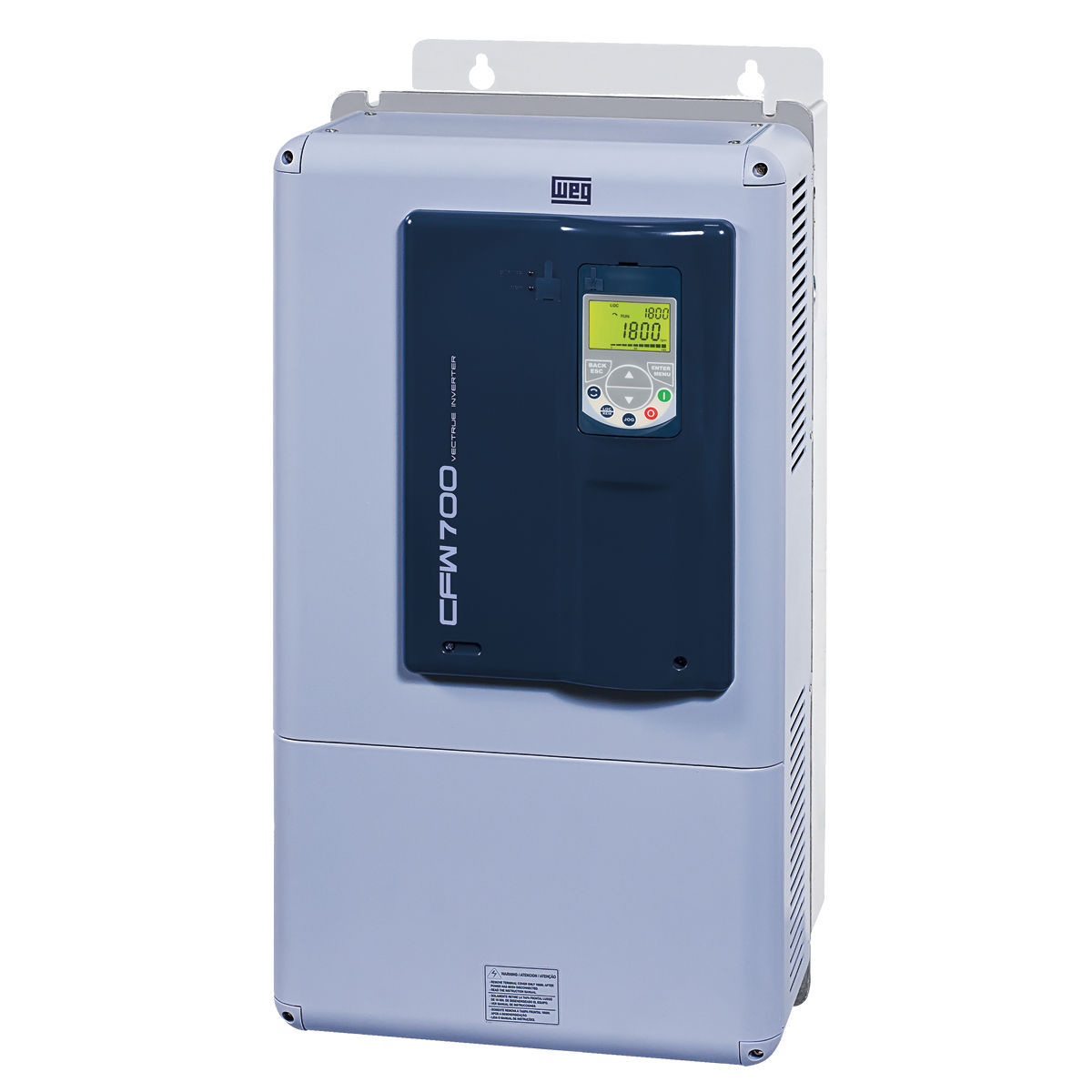

CFW700C70P0T2DBN1

WEG CFW700C70P0T2DBN1 - DRIVE CFW700C70P0T2DBN1, CFW500/700 Drives

WEG

CFW700E0105T4NB20C3

DRIVE CFW700E0105T4NB20C3

WEG

I55AE355F10V11002S

Lenze I55AE355F10V11002S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control with additional features including compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It incorporates a built-in RFI filter, standard I.O., and conformal coating. The dimensions are H536mm x W250mm x D265mm. It supports CANopen communication protocol and offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. The rated current varies with duty and voltage: 132A (light-duty; 400Vac), 115A (light-duty; 480Vac), 110A (heavy-duty; 400Vac), and 96A (heavy-duty; 480Vac). It operates on a supply voltage of 400Vac / 480Vac and can be mounted in a control cabinet or on a surface/wall. The ambient air temperature for operation is up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with a degree of protection of IP20. It is designed for a 3-phase network (3P / 3AC) with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 analog output, 5 digital inputs with flexible functionality, 1 digital output, and 2 analog inputs. The rated active power is 75kW (light-duty; 400-480Vac) and 55kW (heavy-duty; 400-480Vac), with a rated power of 100HP (light-duty; 400-480Vac) and 75HP (heavy-duty; 400-480Vac).

Lenze

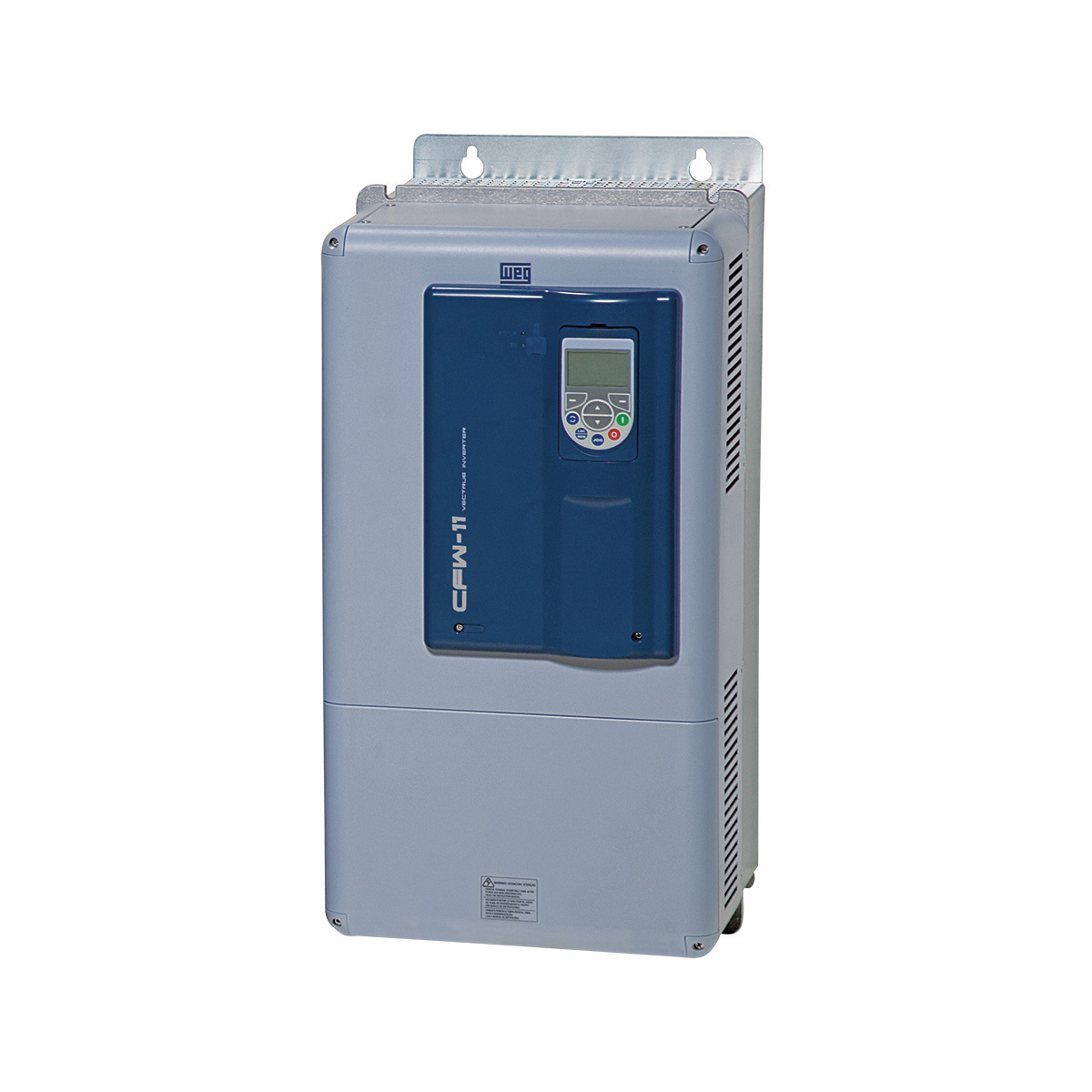

CFW110053T6ON1NBYZ

DRIVE CFW110053T6ON1NBYZ

WEG

M14600B

Lenze M14600B is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for general purpose applications. It features dimensions of H502mm x W261mm x D217mm and supports Modbus communication protocol. The device offers thermal overload protection and solid state motor overload protection. It operates with a rated current of 88A at 400Vac and 77A at 460Vac, and a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it can function within an ambient air temperature range of -10 to +50 °C. The M14600B has a NEMA 1 degree of protection and is compatible with a 3-phase network, accepting an input frequency of 48-62 Hz and outputting 0-120 Hz. It includes 1 analog output proportional to speed, 1 analog output proportional to load, 4 digital inputs plus 1 for start and 1 for stop, and 2 digital outputs (NPN; sinking). Additionally, it features 1 analog input for 0-10Vdc and 1 for 4-20mA. The rated active power is 45kW, with a rated power of 60HP for both 400Vac and 480Vac.

Lenze

CFW080220TDN4A1Z

WEG CFW080220TDN4A1Z - INVERTER USCFW080220T2024EON4A1Z, CFW08 / CFW500 Washdown Drives

WEG

I55AE240F10V1100MS

Lenze I55AE240F10V1100MS is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter functionality, DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller operations. It features a built-in RFI filter, standard I.O. conformal coating, and supports Ethernet/IP communication protocol. The device offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It operates with a rated current of 11.9A (light-duty; 400Vac), 9.8A (light-duty; 480Vac), 9.5A (heavy-duty; 400Vac), and 8.2A (heavy-duty; 480Vac), and a supply voltage of 400Vac / 480Vac. Suitable for control cabinet or surface/wall mounting, it can function in ambient air temperatures up to 45°C (at a switching frequency of 2kHz or 4kHz) and 40°C (at a switching frequency of 8kHz or 16kHz), with a protection degree of IP20. The network type is 3-phase (3P / 3AC), with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output, multiple digital inputs with optional uses, 2 x analog inputs with optional voltage or current input functionality, and 1 x digital output. The rated active power is 5.5kW (light-duty; 400-480Vac) and 4kW (heavy-duty; 400-480Vac), with a rated power of 7-1/2HP (light-duty; 400-480Vac) and 5HP (heavy-duty; 400-480Vac).

Lenze

M701-09601310E10101AN100

NIDEC M701-09601310E10101AN100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M701 series designed for variable speed control with a single Safe Torque Off (STO) feature, requiring an external choke and air cooling for operation. It has dimensions of frame size 9E, measuring H39.7" x W12.21" x D11.42" (H1010mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 155A under normal duty and 131A under heavy-duty conditions. It is designed for a supply voltage range of 500Vac-690Vac (600Vac) and can function in ambient air temperatures ranging from -20°C to +40°C. The device offers an IP20 NEMA 1 UL open degree of protection and is compatible with a 3-phase input network, supporting a supply input frequency of 45-66 Hz and an output frequency range of 0-599 Hz. It features 2 analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 6 digital inputs (0-24Vdc), and 4 digital outputs (0-24Vdc; source and 2A / 240Vac; source; relay contact type). Additionally, it includes 3 analog inputs with two types of conversion resolution: one with differential input and an 11-bit conversion resolution, and two with single-ended input and an 11-bit conversion resolution. The rated active power is 132kW under normal duty and 110kW under heavy-duty, corresponding to a rated power of 175HP and 150HP, respectively.

Nidec

EDP11S003GN12

STANDARD PANEL EDP11S003GN12

WEG

CFW110180T2ON1Z-PGM

DRIVE CFW110180T2ON1Z-PGM

WEG

HS70-07200830A10101AB100

NIDEC HS70-07200830A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the HS70 series designed for variable speed/frequency control with rated frequency outputs of 0-3000Hz in open loop and 0-1250Hz in closed loop applications. It features a built-in brake transistor and a single Safe Torque Off (STO) function suitable for high-speed applications, and utilizes air cooling for temperature management. The dimensions of this model are frame size 7, measuring H21.9" x W10.6" x D11" (H557mm x W270mm x D280mm). It supports Ethernet communication protocol and operates with a rated current of 117A under normal duty and 83A under heavy-duty conditions. The supply voltage required is AC 200Vac-240Vac (220Vac / 230Vac), and it can operate within an ambient air temperature range of -20°C to +40°C. This model has an IP20, NEMA 1, UL open degree of protection, and is designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency of up to 3000 Hz. It includes 2 x analog outputs, 3 x digital inputs, 3 x digital outputs including one 2A / 240Vac relay contact type, and 3 x analog inputs, all designed to facilitate comprehensive control and connectivity. The rated active power is 30kW under normal duty and 22kW under heavy-duty, corresponding to 40HP and 30HP respectively.

Nidec

H300-09202660A10101AN103

NIDEC H300-09202660A10101AN103 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the H300 series designed for variable speed control with an internal line choke, documentation for which is supplied separately, and features air cooling. It has dimensions of frame size 9A, measuring H43.6" x W12.2" x D11.4" (H1108mm x W310mm x D290mm). This model uses the Modbus RTU communication protocol and operates with a rated current of 266A under normal duty. It is designed for a supply voltage of 200Vac-240Vac (220Vac / 230Vac) and can function within an ambient air temperature range of -20°C to +40°C. The device offers a degree of protection rated at IP20 NEMA 1 UL type 1 and is suitable for a 3-phase input (3P) network with a supply input frequency of 60 Hz. It features 2 x analog outputs, 3 x digital inputs (24Vdc), 3 x digital inputs (24Vdc / configurable), 1 x digital input (0-24Vdc), and 2 x digital outputs (relay contact type), along with 1 x analog input (4-20mA) and 1 x analog input (0-10Vdc). The rated active power is 75kW (Normal duty), with a rated power of 100HP (Normal duty).

Nidec

I55AE215D1AV01002S

Lenze I55AE215D1AV01002S is a variable speed/frequency drive (VSD/VFD) and compact inverter designed for a wide range of automation applications. It features DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, a flying restart circuit, and a PID controller. The design incorporates a safe torque off (STO) safety standard and I.O. conformal coating. Its dimensions are H250mm x W60mm x D130mm, and it supports the CANopen communication protocol. Protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of the motor. The rated current is 7A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. It is suitable for control cabinet or surface/wall mounting, with an ambient air temperature for operation of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at a switching frequency of 8kHz or 16kHz. The degree of protection is IP20, and it can operate on a single-phase or 3-phase network with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output, 5 x digital inputs with flexible functionality, 1 x digital output, and 2 x analog inputs. The rated active power is 1.5kW, and the rated power is 2HP for heavy-duty applications at 230-240Vac.

Lenze

EDP11S180GN3R

STANDARD PANEL EDP11S180GN3R

WEG

M701-07600540A10101AB100

NIDEC M701-07600540A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M701 series designed with a built-in brake transistor and a single Safe Torque Off (STO) feature, utilizing air cooling. It has dimensions of frame size 7, measuring H20" x W10.63" x D11.02" (H508mm x W270mm x D280mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 73A under normal duty and 54A under heavy-duty conditions. It is designed for a supply voltage of 500Vac-690Vac (600Vac) and can function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20 NEMA 1 UL open degree of protection and is compatible with a 3-phase input network, supporting a network frequency of 45-66 Hz (supply input) and output frequency range of 0-599 Hz. It features 2 x analog outputs (0-20mA / 4-20mA / -10...+10Vdc; source; 10-bit conversion resolution), 3 x digital inputs (0-24Vdc), 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), and analog inputs including 1 x (0-20mA / 4-20mA / -10...+10Vdc; differential; 11-bit conversion resolution) and 2 x (0-20mA / 4-20mA / -10...+10Vdc; single-ended; 11-bit conversion resolution). The rated active power is 55kW for normal duty and 45kW for heavy-duty, with corresponding rated power of 75HP and 60HP, respectively.

Nidec

SP3505-HF

NIDEC SP3505-HF is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed for high frequency applications up to 3000Hz max. in an open-loop configuration with a single Safe Torque Off (STO) and air cooling. It features a frame size 3 with dimensions of H15.32" x W9.84" x D10.23" (H389mm x W250mm x D260mm), and operates on a supply voltage of 500Vac-575Vac. The rated current is 16A under normal duty and 12A under heavy-duty conditions. This wall-mounted unit is designed to operate within an ambient air temperature range of 0°C to +40°C and offers a degree of protection rated at IP20 NEMA 1. Communication is facilitated via Modbus RTU RS-485, supporting a network frequency of 48-65 Hz on the supply input and 0-3000 Hz on the output. It includes 3 x digital outputs (0-24Vdc; source), 1 x digital output (2A / 240Vac; source; relay contact type), 3 x digital inputs (0-24Vdc), and analog inputs/outputs with varying specifications. The rated active power is 11kW for normal duty and 7.5kW for heavy-duty, corresponding to 15HP and 10HP, respectively.

Nidec

VFD015C4EA-21

Variable Frequency Drive, 3 phase, 460 VAC build-in EMI Input, 2 HP, frame A, wall mount, IP20, NEMA 1

Delta
