Variable Frequency Drives (VFD)

UMI-0185EU-B7

UMI-0185EU-B7 Unitronics - Unitronics VFD - B7 Series, 380-480V, 3 Phase, 18.5kW, 25HP, STO included

Unitronics

I55AE311F1AV11004S

Lenze I55AE311F1AV11004S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and supports PROFIBUS communication protocol. Protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. The rated current is 28.2A for light-duty at 400Vac, 25.2A for light-duty at 480Vac, 23.5A for heavy-duty at 400Vac, and 21A for heavy-duty at 480Vac. It operates on a supply voltage of 400Vac / 480Vac and is suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation is max. 45°C at a switching frequency of 2kHz or 4kHz, and max. 40°C at a switching frequency of 8kHz or 16kHz, with a degree of protection of IP20. It is designed for a 3-phase (3P / 3AC) network with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). The device includes 1 x analog output, 5 x digital inputs with optional uses for frequency or encoder input, 1 x digital output, and 2 x analog inputs with optional uses as voltage or current input. The rated active power is 15kW for light-duty and 11kW for heavy-duty, both at 400Vac / 480Vac, with a rated power of 20HP for light-duty and 15HP for heavy-duty, at the same voltages.

Lenze

ESV751N01SXC

ESV751N01SXC Lenze Variable Frequency Drive (VFD) - The SMV 1.0 hp (0.75 kW) drive features a 120 VAC (doubler) / 240 VAC 1Ø input in a convection cooled NEMA 4X (IP65) indoor enclosure. The SMVector NEMA 4X (IP65) offers exemplary performance even in harsh environments. These decentralized drives are suitable for wall mounting and are available in two enclosure materials suitable for either indoor or outdoor use. This drive is also available with an integral disconnect switch and integrated lin

Lenze

I55AE155B10V11002S

Lenze I55AE155B10V11002S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed and frequency control, compact inverter DC-injection braking, brake management, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, standard I.O., and conformal coating. The dimensions are H180mm x W60mm x D130mm, and it uses the CANopen communication protocol. Protection functions include overvoltage category, leakage current, earth fault resistance, and overtemperature of motor. It has a rated current of 3.2A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. The mounting mode is suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation is max. 45°C at a switching frequency of 2kHz or 4kHz, and max. 40°C at a switching frequency of 8kHz or 16kHz, with a degree of protection of IP20. It operates on a single-phase / 1P network with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.55kW, and the rated power is 3/4HP for heavy-duty applications at 230-240Vac.

Lenze

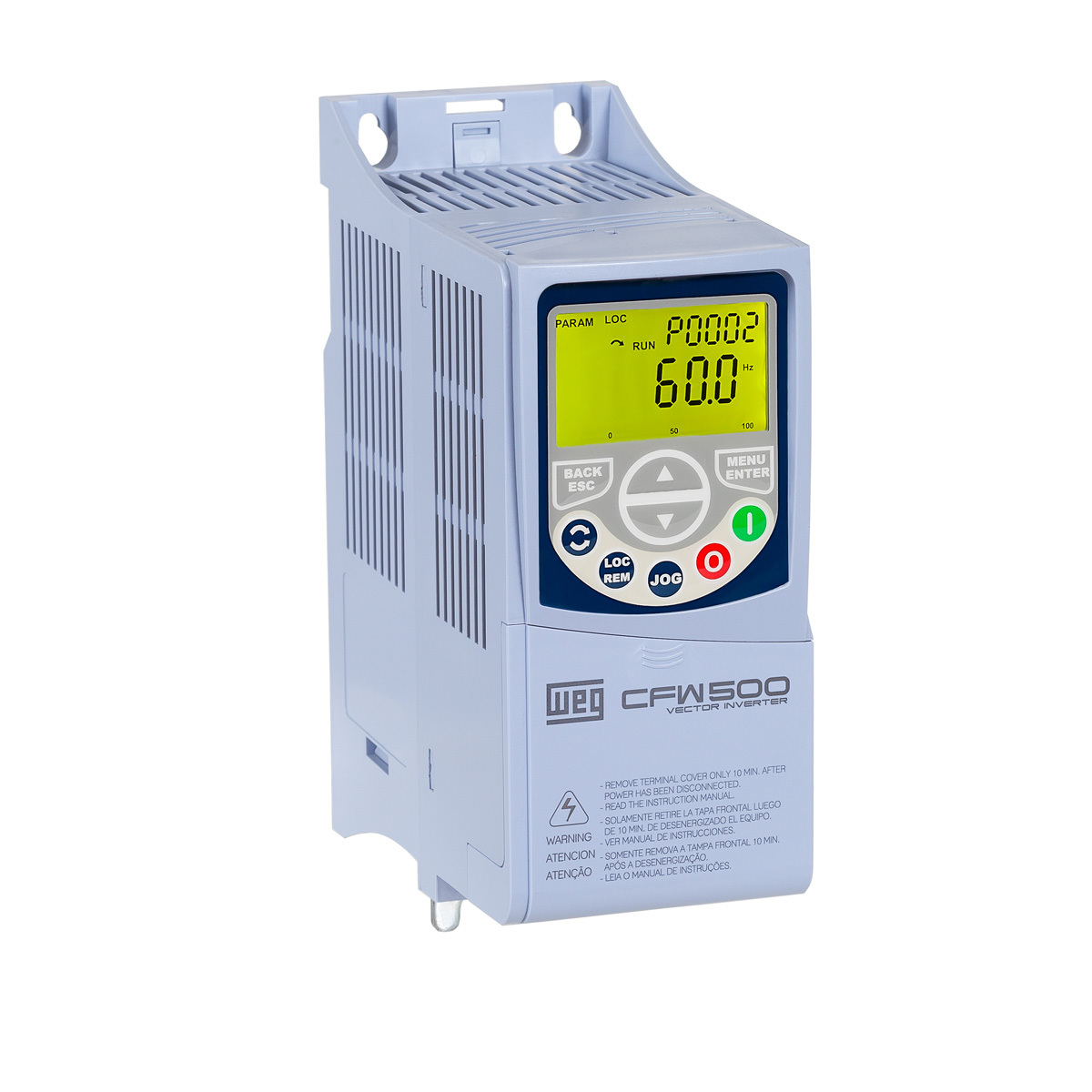

CFW500A01P6B2NB20G2

DRIVE CFW500A01P6B2NB20G2

WEG

GA80U4005ABM

GA80U4005ABM Yaskawa - Variable frequency drive (VFD), 3 phase, 480 VAC, 5 A, IP20, General Purpose GA800 Series

Yaskawa

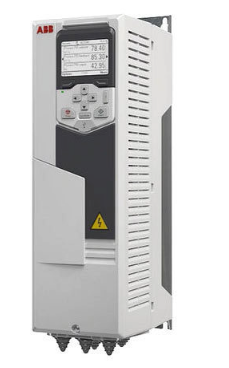

ACS580-01-065A-4

50 HP ABB ACS580 Series NEMA 1 Enclosed Variable Frequency Drive | 400 – 480 VAC 3 Phase Input | 480 VAC 3 Phase Output | 65 Amps | ACS580-01-065A-4

ABB Control

M400-03400073A10101AB100

NIDEC M400-03400073A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M400 series designed with a built-in brake transistor and dual Safe Torque Off (STO) for air cooling. It features dimensions of frame size 3, measuring H8.9" x W3.5" x D6.3" (H226mm x W90mm x D160mm). This model supports multiple communication protocols, including CANopen, DeviceNet, Ethernet/IP, Modbus RTU, Modbus TCP, PROFINET RT, and PROFIBUS DP. It operates with a rated current of 7.3A for both normal and heavy-duty applications and requires a supply voltage of 380Vac-480Vac (400Vac / 415Vac). The ambient air temperature for operation ranges from -20°C to +60°C, and it has a degree of protection of IP20 NEMA 1. Designed for a 3-phase input network with a supply input frequency of 45-66 Hz and an output frequency of 0-550 Hz, it includes 2 analog outputs, 8 digital inputs, and 3 digital outputs, alongside 2 analog inputs. The rated active power and power in HP for both normal and heavy-duty operations are 3kW and 3HP, respectively.

Nidec

ATV71HD11M3XZ

Schneider Electric ATV71HD11M3XZ is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar 71 series designed for variable speed and frequency control of electric motors. It features sensorless flux vector control, ENA System, and vector control with or without speed feedback, capable of delivering 220% of the nominal motor torque for 2 seconds and 170% for 60 seconds. This model has a non-detachable display with a built-in heatsink, operates on a supply voltage of 170-264Vac (200Vac / 220Vac / 230Vac / 240Vac nominal), and offers dimensions of H400mm x W230mm x D213mm. It is protected by an IP20, IP21, and UL type 1 rated enclosure. The rated current is 54A at 230Vac (4kHz), with a maximum current of 89.1A for 2 seconds and 81A for 60 seconds. It supports wall mounting and uses Modbus and CANopen communication protocols. Designed for a 3-phase network with an output frequency range of 0.1-599 Hz, it includes 1 analog output (0-10Vdc / 0-20mA), 5 digital inputs (24Vdc; sink/source) plus 1 additional digital input programmable as discrete or PTC input and another for PWR safety, along with 3 digital outputs. It also features 2 analog inputs for versatile connectivity. The current consumption is 53.3A at 200Vac and 45.8A at 240Vac, with a rated active power of 11kW and rated power of 15HP.

Schneider Electric

M600-08201320A10101AB100

NIDEC M600-08201320A10101AB100 is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the M600 series designed with a built-in brake transistor and a single Safe Torque Off (STO) feature, utilizing air cooling. It has dimensions of frame size 8, measuring H29.65" x W12.21" x D11.42" (H753mm x W310mm x D290mm). This model supports RS-485 Modbus RTU communication protocol and operates with a rated current of 180A under normal duty and 132A under heavy-duty conditions. It is designed for a supply voltage of 200Vac-240Vac (220Vac / 230Vac) and can function within an ambient air temperature range of -20°C to +40°C. The device offers an IP20 NEMA 1 degree of protection and is compatible with a 3-phase input network, supporting a network frequency of 45-66 Hz (supply input) and output frequency range of 0-550 Hz. It features 2 x analog outputs, 3 x digital inputs, 3 x digital outputs, and multiple analog inputs with varying specifications, including a rated active power of 45kW under normal duty and 37kW under heavy-duty, corresponding to 60HP and 50HP respectively.

Nidec

EDP11S045GN12-PGM

WEG EDP11S045GN12-PGM - STANDARD PANEL 30HP 460V, Enclosed Drive Packages (EDP)

WEG

M1215SE

Lenze M1215SE is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter designed with a water-tight and dust-tight corrosion-resistant stainless steel housing. It supports Modbus communication protocol and is equipped with thermal overload protection and solid state motor overload protection. The device operates with a rated current of 6A at 200Vac and 5.2A at 230Vac, and it can be supplied with AC voltage ranging from 200Vac to 240Vac (208Vac / 220Vac / 230Vac). Suitable for control cabinet or surface/wall mounting, the M1215SE functions within an ambient air temperature range of -10 to +40 °C and offers a degree of protection rated at NEMA 4X. It is designed for single-phase networks with an input frequency of 48-62 Hz and an output frequency of 0-120 Hz. The unit features 1 analog output proportional to speed (frequency), 1 analog output proportional to load, 4 digital inputs (terminal 13A-13D), 1 digital input for START (terminal 12A), 1 digital input for STOP (terminal 1), and 2 digital outputs (NPN; sinking) (terminal 14 and 15). Additionally, it includes 1 analog input (0-10Vdc) (terminal 5A) and 1 analog input (4-20mA) (terminal 5B). The rated active power is 1.1kW for 200-240Vac, and the rated power is 1-1/2HP for 200-240Vac.

Lenze

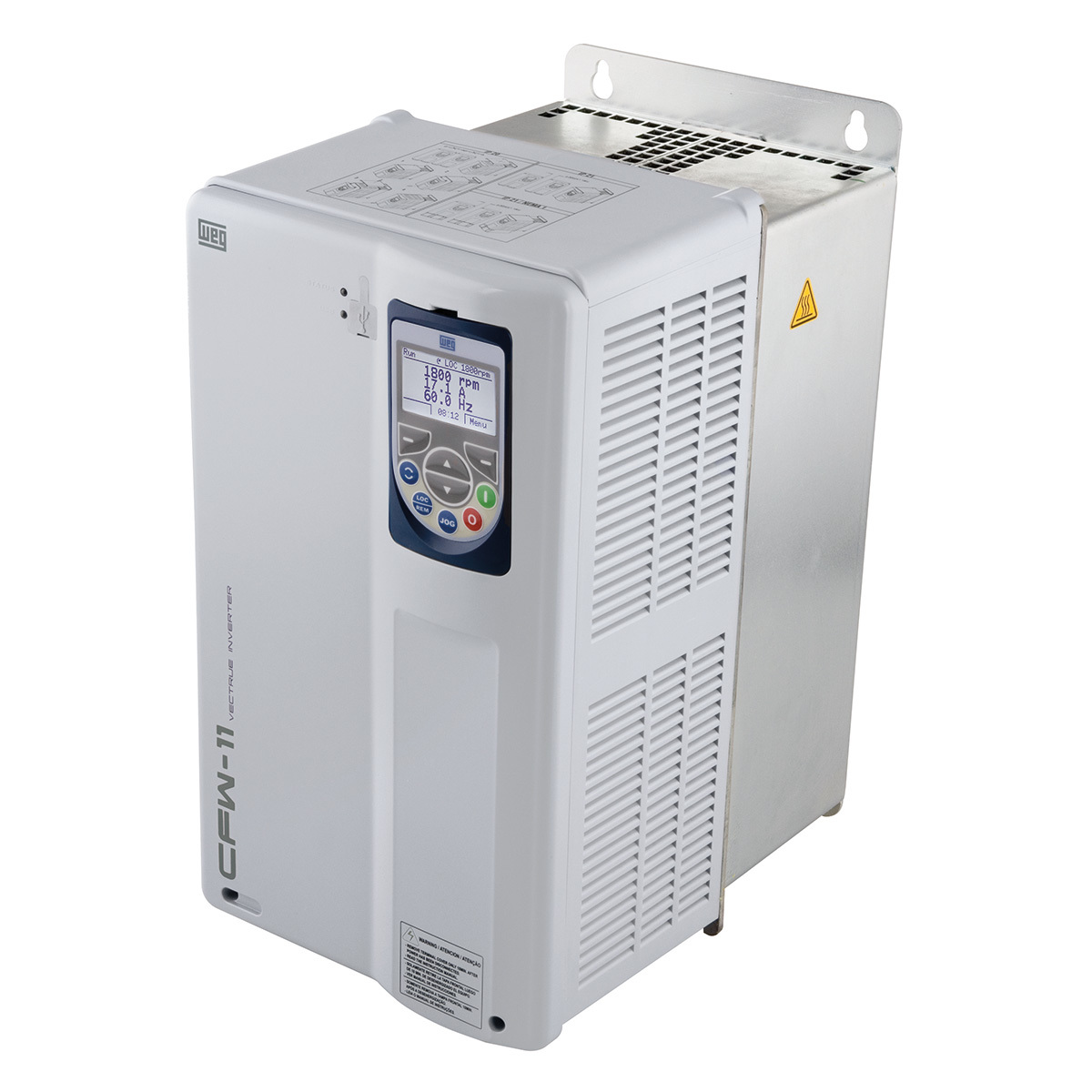

CFW110058T4ON1Z

DRIVE CFW110058T4ON1Z

WEG

HVW701E211T4N12-J-A

WEG HVW701E211T4N12-J-A - STANDARD PANEL HVW701E211T4N12-J-A, HVAC Enclosed Drives (HVW)

WEG

I55AE137B1AV11000S

Lenze I55AE137B1AV11000S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for variable speed/frequency control, compact inverter DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and PID controller functionality. It features a built-in RFI filter, safe torque off (STO) safety standard, I.O. conformal coating, and dimensions of H155mm x W60mm x D130mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 2.4A for heavy-duty applications at 230-240Vac, with a supply voltage of 230Vac / 240Vac. Suitable for control cabinet or surface/wall mounting, it operates within an ambient air temperature range of up to 45°C at a switching frequency of 2kHz or 4kHz, and up to 40°C at 8kHz or 16kHz, with an IP20 degree of protection. The network is single-phase / 1P, with a network frequency of 45-65 Hz (input) and 0-599 Hz (output). It includes 1 x analog output (0-10Vdc; 0-20mA or 4-20mA), 5 x digital inputs (PNP/NPN logic), 1 x digital output (max. 100mA), and 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA). The rated active power is 0.37kW, and the rated power is 1/2HP for heavy-duty applications at 230-240Vac.

Lenze

CFW500D24P0T4DBN1

WEG CFW500D24P0T4DBN1 - DRIVE CFW500D24P0T4DBN1, CFW500/700 Drives

WEG

I55AE175A1AV01001S

Lenze i55AE175A1AV01001S is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter within the Drives sub-range, designed for compact inverter applications including DC-injection braking, brake management for brake control, S-ramps for smooth acceleration and deceleration, flying restart circuit, and a PID controller. It features a safe torque off (STO) safety application and I.O. conformal coating. The dimensions are H250mm x W60mm x D130mm. This model does not include a communication interface but offers protection functions against overvoltage, leakage current, earth fault resistance, and overtemperature of the motor. It has a rated current of 4.2A for heavy-duty applications at 120Vac, with a supply voltage of 120Vac. The mounting mode is suitable for control cabinet or surface/wall mounting. The ambient air temperature for operation varies with the switching frequency, allowing a maximum of 45°C at 2kHz or 4kHz and 40°C at 8kHz or 16kHz. It has an IP20 degree of protection, operates on a single-phase / 1P network with an input frequency of 45-65 Hz and an output frequency of 0-599 Hz. The device includes 2 x analog outputs (0-10Vdc; 0-20mA or 4-20mA), 7 x digital inputs (PNP/NPN logic) with options for frequency or encoder input, and 2 x digital outputs (max. 100mA). Additionally, it has 2 x analog inputs (-10...+10Vdc; 0-20mA or 4-20mA) that can be optionally used as voltage or current inputs. The rated active power is 0.75kW, and the rated power is 1HP for heavy-duty applications at 120Vac.

Lenze

EDP11S312GN3R11000

STANDARD PANEL EDP11S312GN3R11000

WEG

CFW110007T4O55DSZPGM

WEG CFW110007T4O55DSZPGM - DRIVE CFW110007T4O55DSZ-PGM, CFW11 Drives

WEG

VFD015C4EA-21

Variable Frequency Drive, 3 phase, 460 VAC build-in EMI Input, 2 HP, frame A, wall mount, IP20, NEMA 1

Delta
